DFL-1000 User Manual
12
7
After running a search, to display all log messages again, run another search but leave all the search fields
blank.
Clearing event log messages
Use the following procedure to clear the event log:
• Got to Log & Report > Logging.
• Select Event Log.
•
Select
to clear all messages in the selected log.
•
Select OK.
Viewing and maintaining logs saved to the hard disk
If your DFL-1000 contains a hard disk for recording logs, you can use the following procedures to view,
search and maintain traffic and event logs:
• Viewing logs
• Searching logs
•
Downloading a log file to the management computer
•
Deleting all messages in an active log
•
Deleting a saved log file
Viewing logs
Log messages are listed with the most recent message at the top. You can view the active or saved traffic,
or event logs using the following procedure:
• Go to Log&Report > Logging .
• Select
Traffic Log
, or
Event Log
.
The web-based manager lists all saved logs of the selected type, with the active log at the top of the
list. For each log, the list shows the date and time at which an entry was last added to the log, the
size of the log file, and its name.

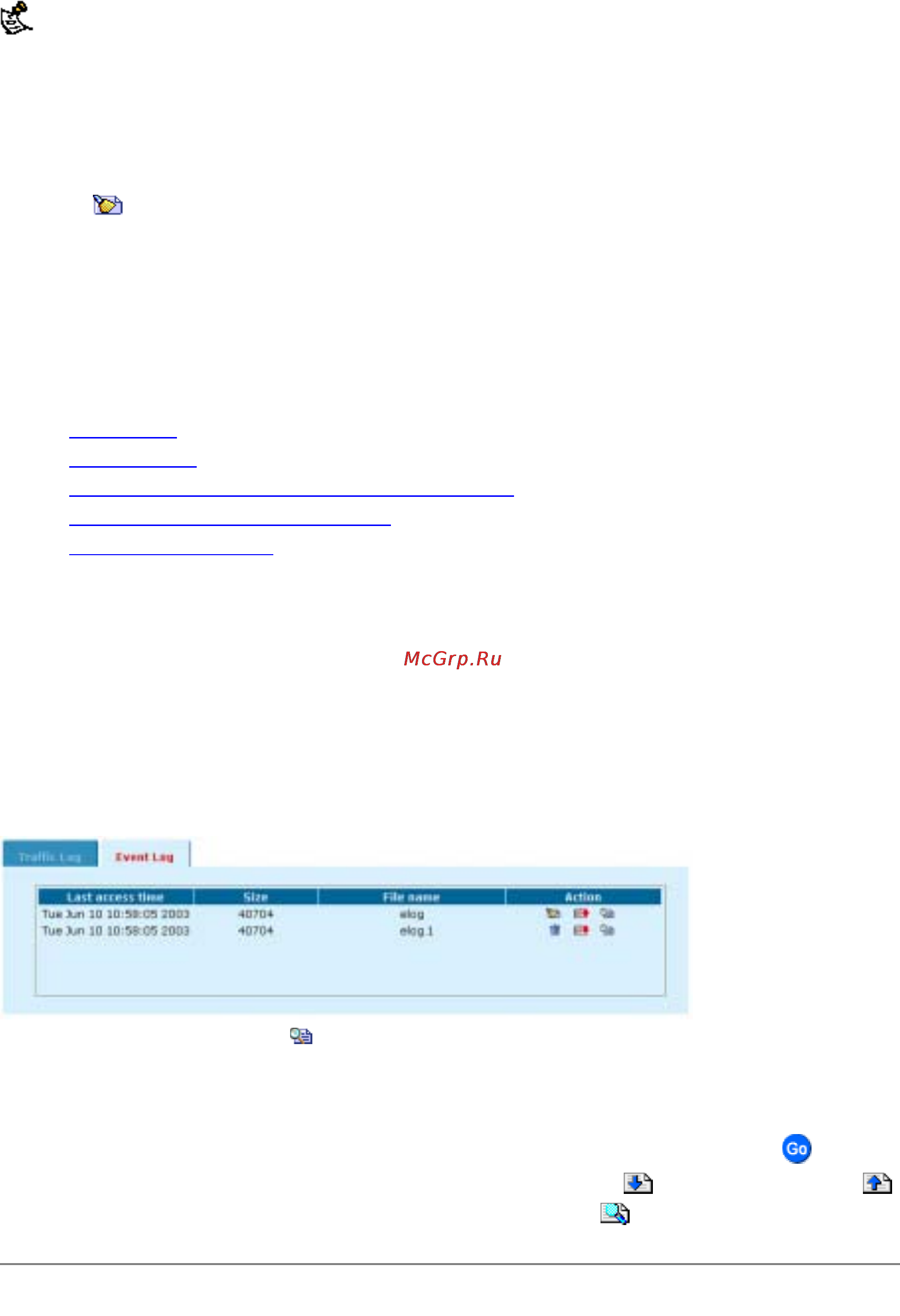

Sample event log list
• To view a log file, select View .
• The web-based manager displays the messages in the selected log.
• You can set the number of log messages to view on a single page to 30, 50 or All. You can scroll
through the log entries.
•
To view a specific line in the log file, type a line number in the Go to line field and select
.
•
To navigate through the log message pages, select Go to Next Page
or Go to Previous Page .
• To search the messages in the log file that you are viewing, select
.
