DFL-1000 User Manual
10
9
The destination interface can be either the Int or DMZ interface. For example, if the destination address is
on the internal network, you would create an Ext -> Int policy to control the access that L2TP users have
through the DFL-1000 NPG.
Set the service for the policy to the traffic type inside the L2TP VPN tunnel. For example, if you want
L2TP clients to be able to access a web server, set service to HTTP.
Make sure that your ISP supports L2TP connections.
This section describes:
•
Configuring the DFL-1000 NPG as an L2TP gateway
•
Configuring a Windows 2000 client for L2TP
• Configuring a Windows XP client for L2TP
Configuring the DFL-1000 NPG as an L2TP gateway
•
Create a user group for the L2TP users.
See Users and authentication
.
• Go to VPN > L2TP > L2TP Range .
• Select Enable L2TP.
• Enter the Starting IP and the Ending IP for the L2TP address range.
• Select the User Group that you added in step Create a user group for the L2TP users.
.
• Select Apply to enable L2TP through the DFL-1000 NPG.

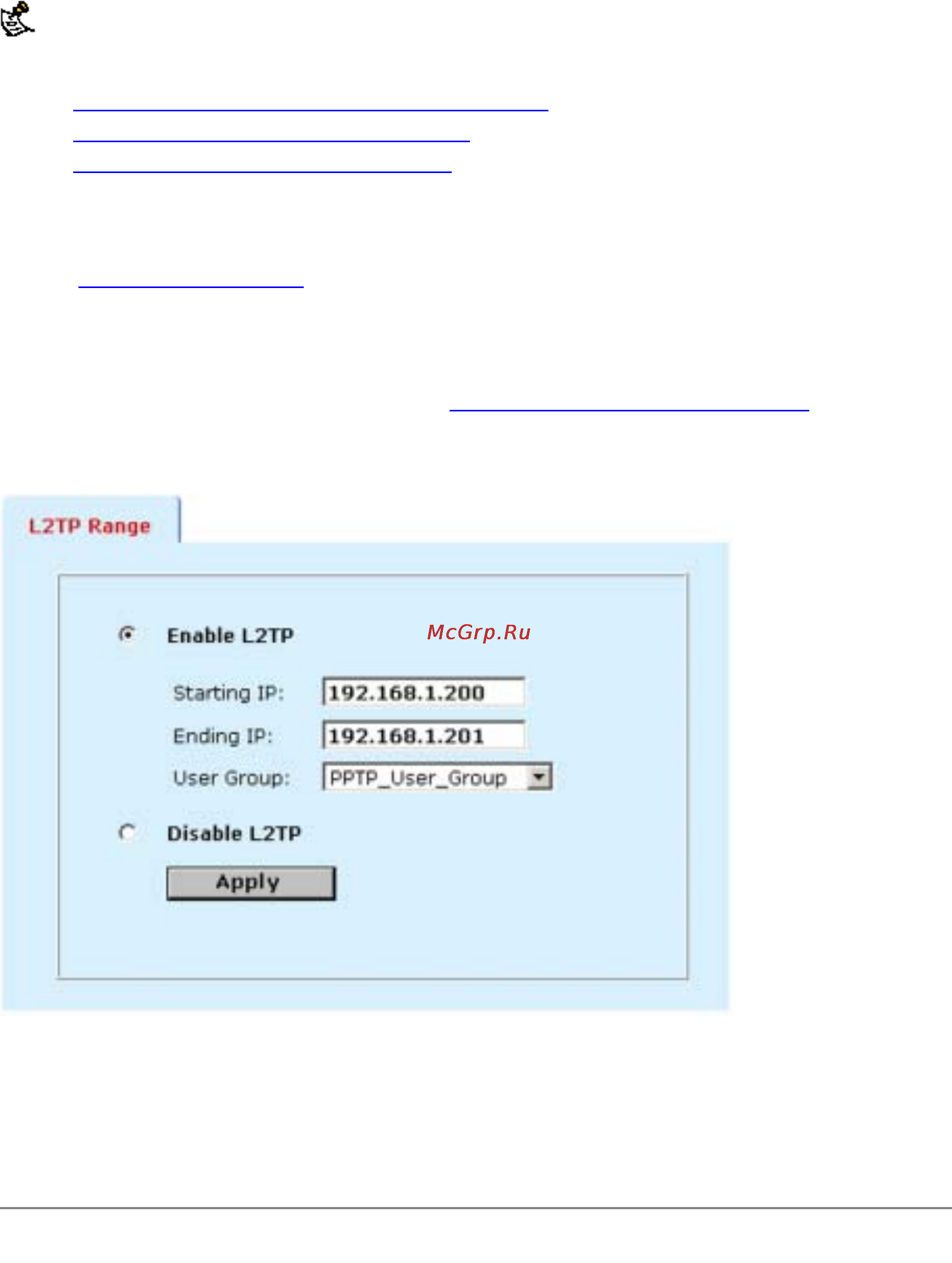

Sample L2TP address range configuration
• Add the addresses from the L2TP address range to the external interface address list. The addresses
can be grouped into an external address group.
• Add the addresses to which L2TP users can connect to the interface connected to the destination
network. The addresses can be grouped into an address group.
•
Add a policy to allow L2TP clients to connect through the DFL-1000 NPG.
