DFL-1000 User Manual
10
8
Connecting to the PPTP VPN
•
Connect to your ISP.
•
Start the VPN connection that you configured in the previous procedure.
•
Enter your PPTP VPN User Name and Password.
• Select Connect.
• In the connect window, enter the User Name and Password that you use to connect to your dialup
network connection.
This user name and password is not the same as your VPN user name and password.
L2TP VPN configuration
L2TP clients must be able to authenticate with the DFL-1000 NPG to start a L2TP session. To support
L2TP authentication, you must add a user group to the DFL-1000 NPG configuration. This user group can
contain users added to the DFL-1000 NPG user database, RADIUS servers, or both.
After you have added a user group, configure your DFL-1000 NPG to support L2TP by enabling L2TP
and specifying a L2TP address range. The L2TP address range is the range of addresses that must be
reserved for remote L2TP clients. When a remote L2TP client connects to the internal network using
L2TP, the client computer is assigned an IP address from this range. The L2TP address range can be on
any subnet.

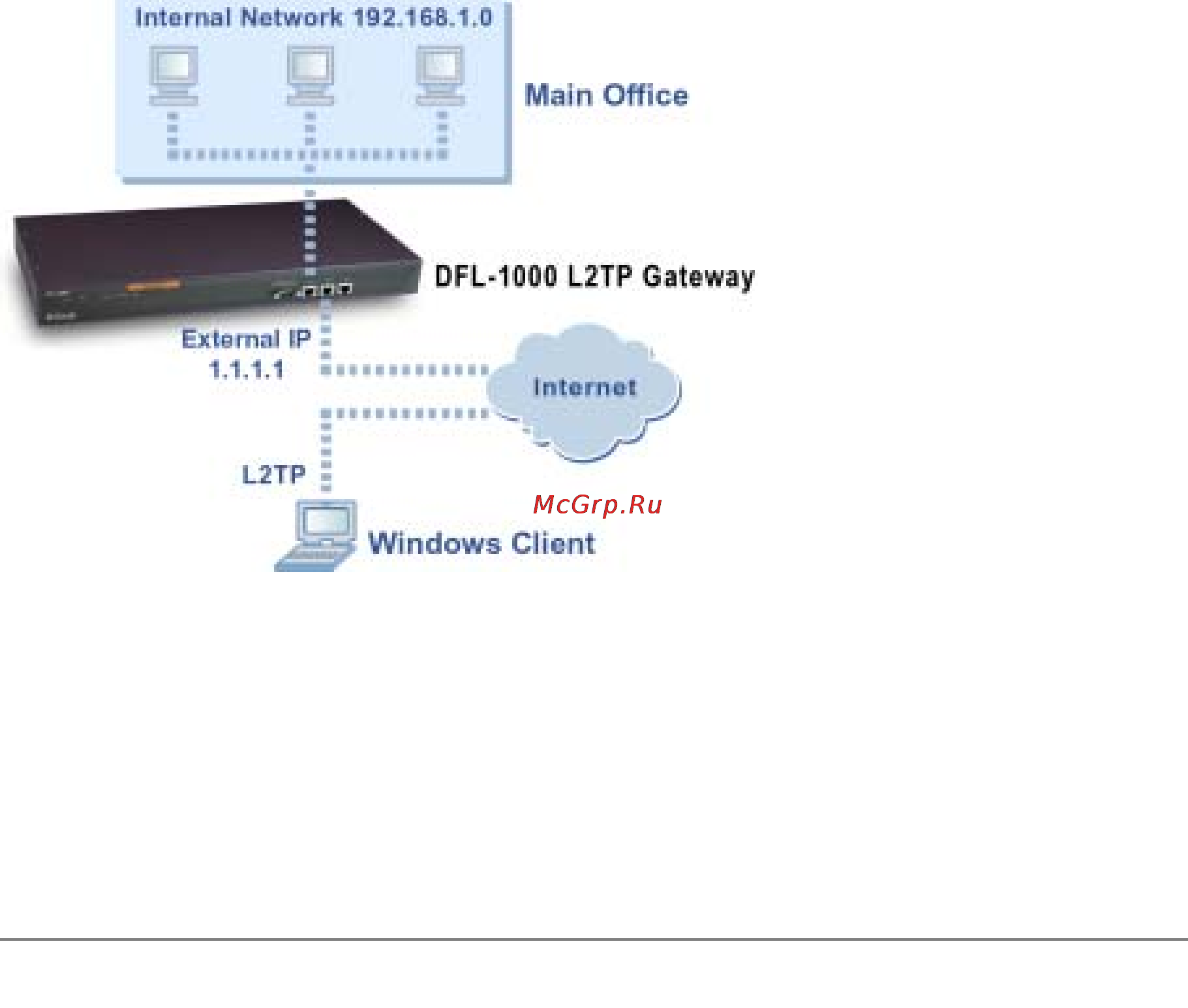

L2TP VPN between a Windows client and the DFL-1000 NPG
Add firewall policies with an external source address to control the access that L2TP clients have through
the DFL-1000 NPG.
Add the addresses in the L2TP address range to the external interface address list. To make policy
configuration easier, you can create an address group for L2TP that contains the IP addresses that can
be assigned to L2TP clients from the L2TP address range.
Add addresses to the destination interface address list to control the addresses to which L2TP clients can
connect.
