DFL-1000 User Manual
13
7
•
Go to System > Status .
•
Select Shutdown.
The DFL-1000 NPG shuts down and all traffic flow stops.
The DFL-1000 NPG can only be restarted after shutdown by turning the power off, then on.
System status monitor
You can use the system status monitor to view system activity, including the number of active
communication sessions and information about each session.
The system status monitor also displays DFL-1000 NPG CPU usage, memory usage, and system up-time
statistics.
To view system status:
• Go to System > Status > Monitor .
The system status monitor appears.
• To page through the list of connections, select Page Up
or Page Down .
•
Select Refresh
to update the information displayed.
•
You can select Clear
to stop any active communication session.
System status monitor

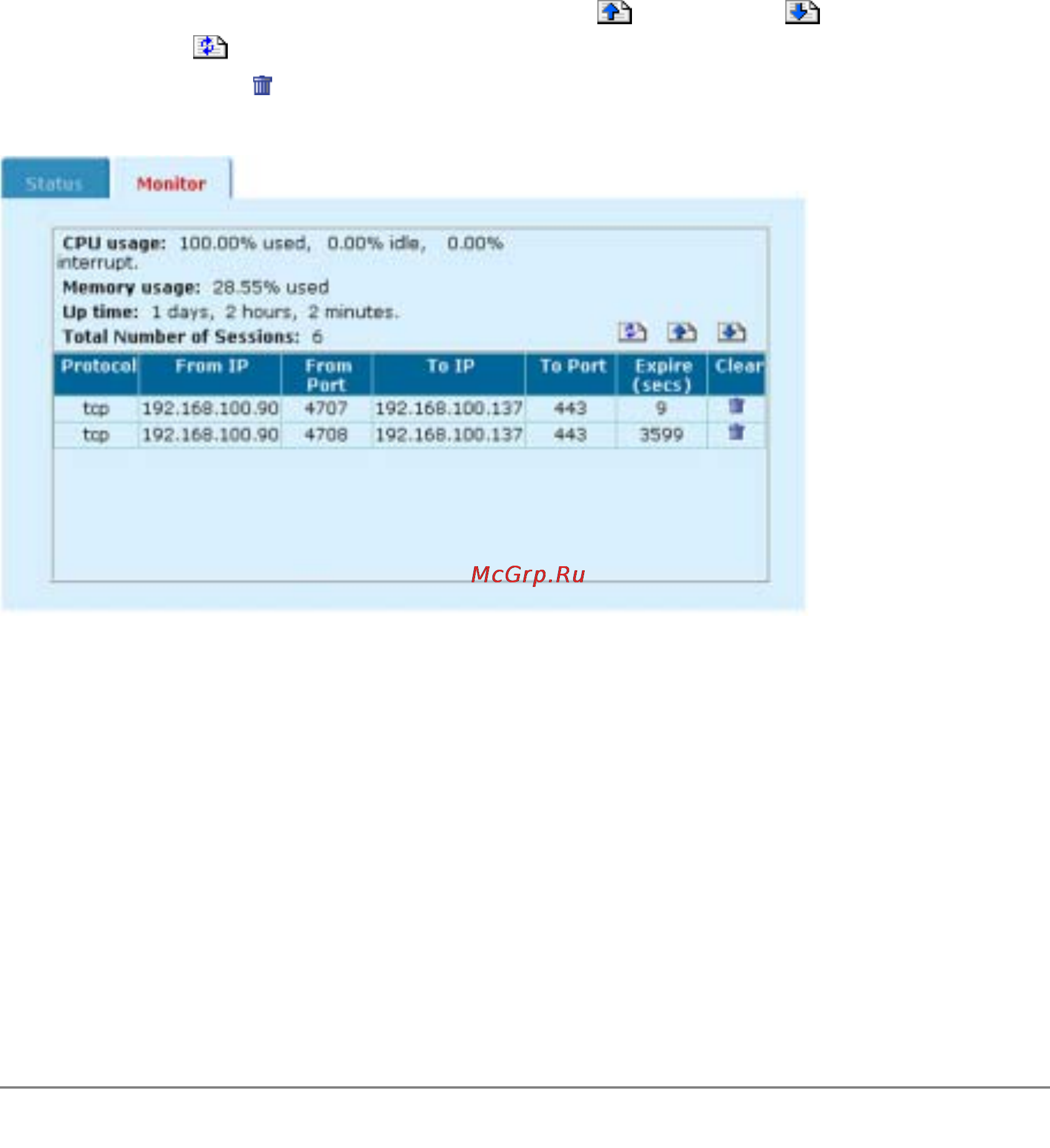

At the top of the display, the system status monitor shows:
CPU usage
The current CPU usage statistics of the DFL-1000 NPG.
Memory usage
The percentage of available memory being used by the DFL-1000 NPG.
Up time
The number of days, hours, and minutes since the DFL-1000 NPG was last started.
Total Number of Sessions
The total number of active communication sessions to and through the DFL-1000 NPG.
Each line of the system status monitor displays the following information about each active firewall
connection:
Protocol
The service type or protocol of the connection.
From IP
The source IP address of the connection.
From Port
The source port of the connection.
