DFL-1000 User Manual
11
5
Enable Banned Word must be selected at the top of the banned word list for web pages containing banned
words to be blocked.

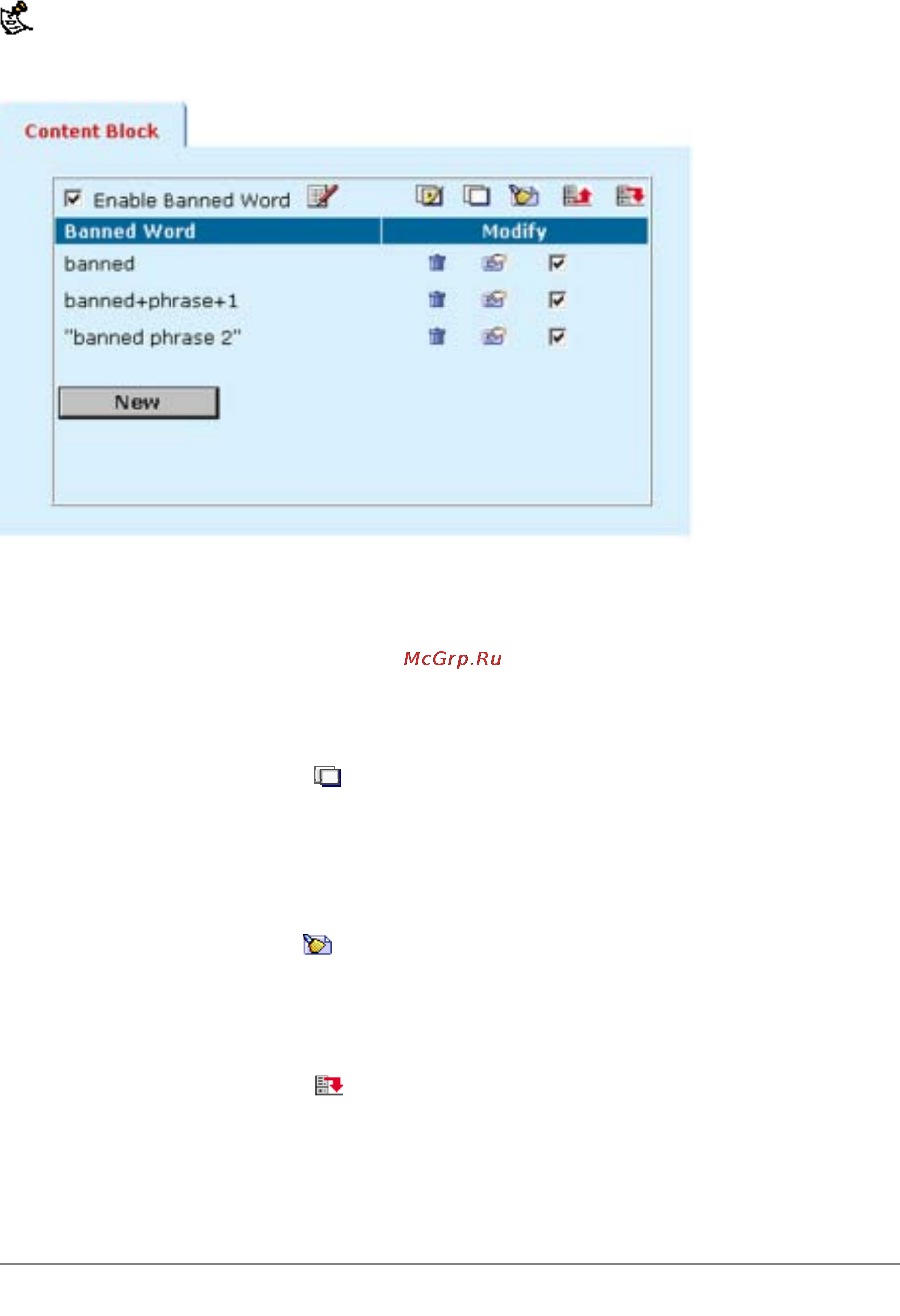

Sample banned word list
Temporarily disabling the banned word list
• Go to Web Filter > Content Block .
• Uncheck Enable Banned Word to disable content blocking.
Temporarily disabling individual words in the banned word list
•
Go to Web Filter > Content Block .
•
In the Modify column, uncheck the box beside an individual entry in the banned word list.
• You can also select Uncheck All
to uncheck all entries in the banned word list.
All unchecked items in the banned word list are not blocked by the DFL-1000 NPG.
Clearing the banned word list
Use the following procedure to remove all entries from the banned word list:
•
Go to Web Filter > Content Block .
• Select Clear Banned Word List
to remove all entries in the banned word list.
Backing up the banned word list
You can back up the banned word list by downloading it to a text file on the management computer:
• Go to Web Filter > Content Block .
•
Select Backup Banned Word list
.
The DFL-1000 NPG downloads the banned word list to a text file on the management computer. You
can specify a location to which to download the text file as well as a name for the text file.
