DFL-1000 User Manual
8
5

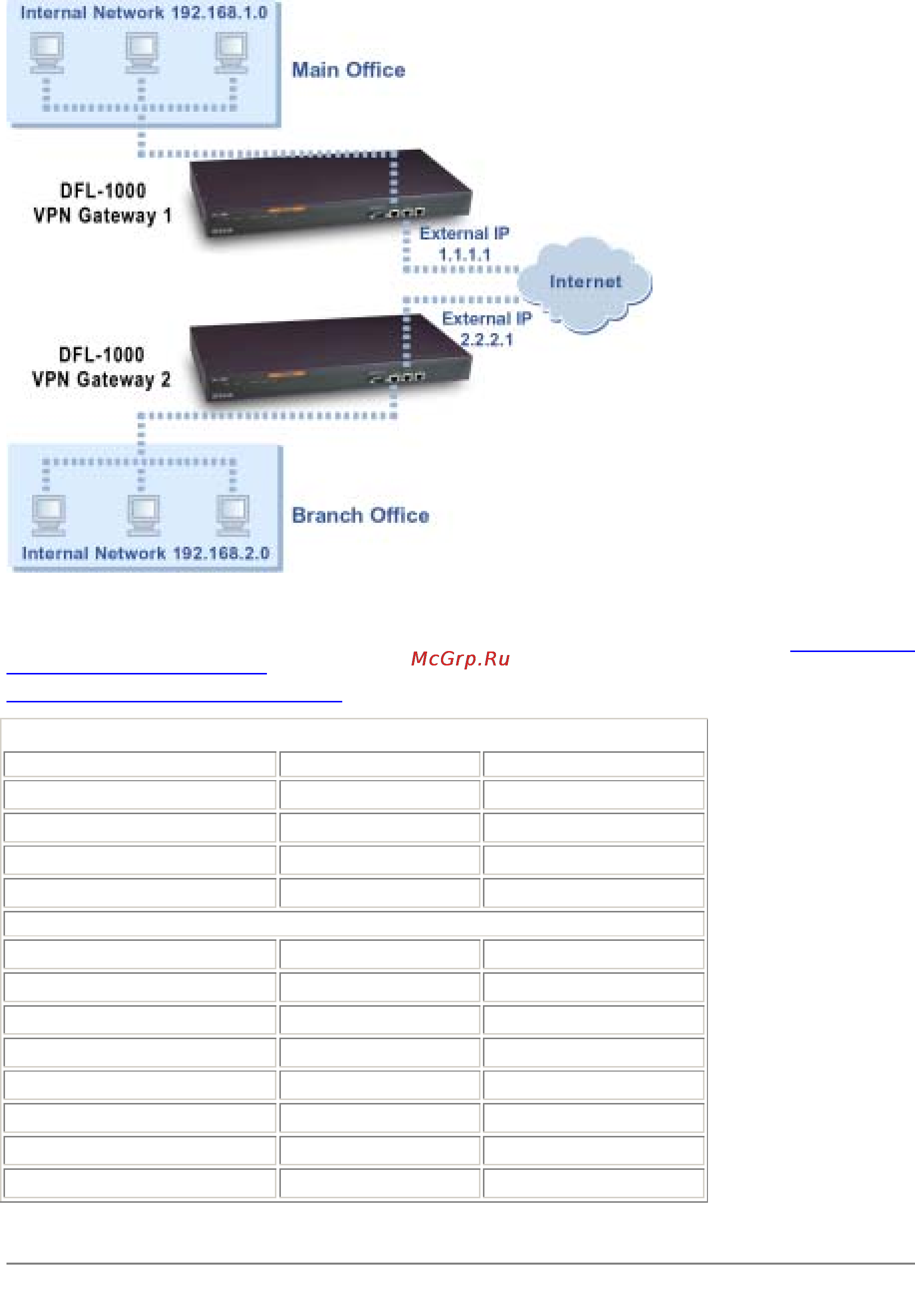

Example VPN between two internal networks
Configuring the remote gateway for a remote network
Use the following procedure to configure the remote gateway for the example VPN in Example VPN
between two internal networks.
Example remote gateway configuration
shows the information required to configure the remote gateway.
Example remote gateway configuration
Field name Main Office information Branch Office information
Gateway Name
Branch_Office_gw Main_Office_gw
Remote Gateway
Static IP Address Static IP Address
IP Address
2.2.2.1 1.1.1.1
Mode
Main (ID Protection) Main (ID Protection)
P1 Proposal
1- Encryption
3DES 3DES
Authentication
SHA1 SHA1
DH Group
5 5
Keylife
28800 seconds 28800 seconds
Authentication (Pre-shared Key)
ddcHH01887d ddcHH01887d
Local ID
Blank Blank
NAT-traversal
Enable Enable
Keepalive Frequency
5 5
