DFL-1000 User Manual
151

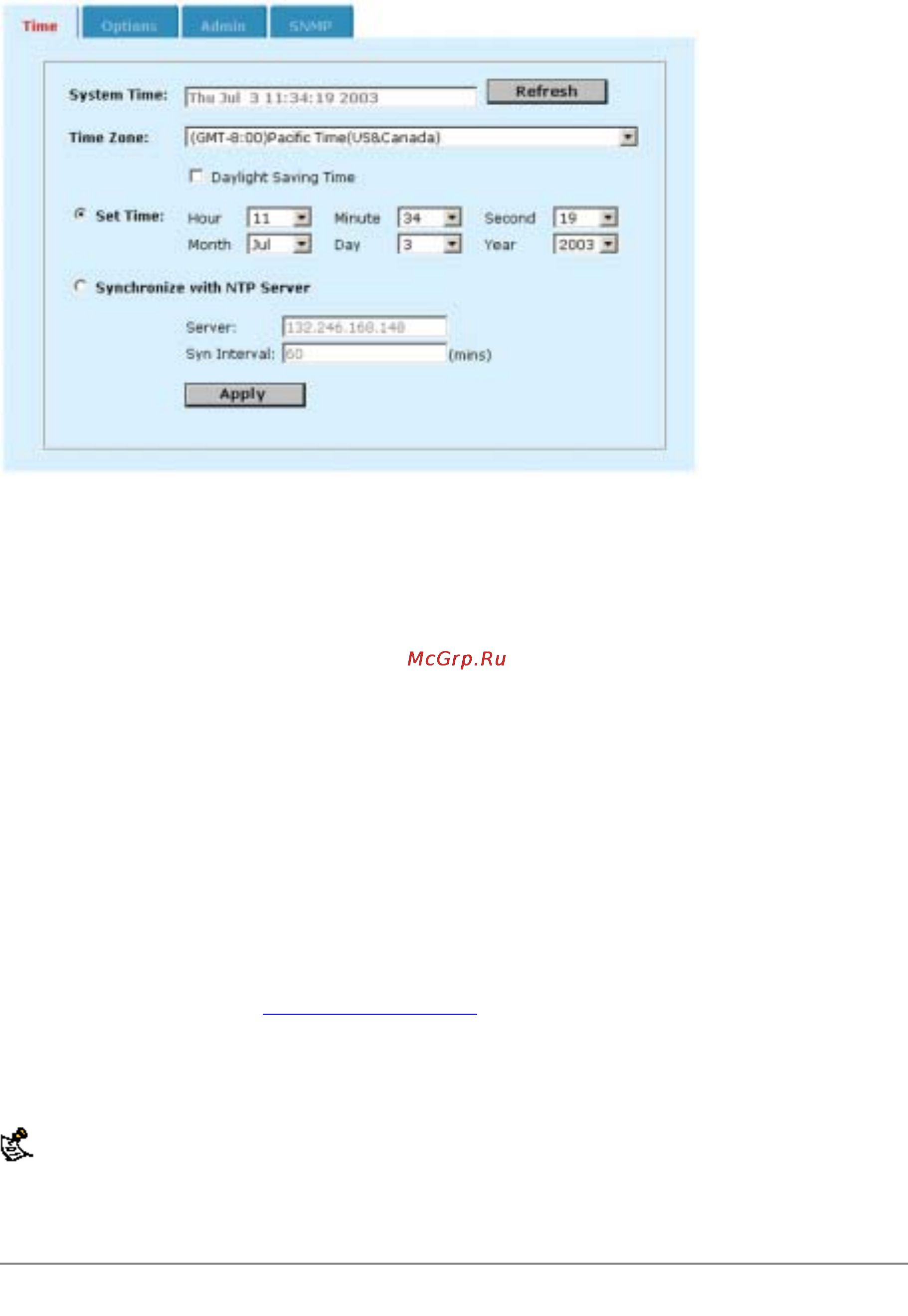

Example date and time setting
• To configure the DFL-1000 NPG to use NTP, select Synchronize with NTP Server.
By default, the DFL-1000 NPG is configured to connect to an NTP server at IP address 192.5.5.250,
which is the IP address of an NTP server maintained by the Internet Software Consortium at Palo Alto,
CA, USA.
• Optionally enter the IP address of a different NTP server.
• Specify how often the DFL-1000 NPG should synchronize its time with the NTP server. A typical Syn
Interval would be 1440 minutes for the DFL-1000 NPG to synchronize its time once a day.
•
Select Apply.
Changing web-based manager options
You can change the web-based manager idle time out and firewall user authentication time out. You can
also change the language and character set used by the web-based manager.
To change web-based manager options:
• Go to System > Config > Options .
• Set the web-based manager idle time-out.
Set Idle Timeout to control the amount of inactive time that the web-based manager waits before
requiring the administrator to log in again.
The default idle time out is 5 minutes. The maximum idle time out is 480 minutes (8 hours).
• Set the firewall user authentication time out.
For more information, see Users and authentication
. The default Auth Timeout is 15 minutes. The
maximum Auth Timeout is 480 minutes (8 hours).
• Choose the character set and language that the web-based manager uses.
You can choose from English, Simplified Chinese, Japanese, Korean, or Traditional Chinese.
When the web-based manager language is set to use Simplified Chinese, Japanese, Korean, or Traditional
Chinese, you can change to English by selecting the English button on the upper right of the web-based
manager.
•
Select Apply.
