DFL-1000 User Manual
3
9
•
Internal_All on the internal address list represents the IP addresses of all computers on your
internal network.
• External_All on the external address list represents the IP addresses of all computers on the
Internet.
You can add, edit, and delete all other addresses as required. You can also organize related addresses
into address groups to simplify policy creation.
This section describes:
•
Adding addresses
•
Editing addresses
•
Deleting addresses
•
Organizing addresses into address groups
Adding addresses
• Go to Firewall > Address .
• Select the interface to which to add the address.
The list of addresses added to that interface is displayed.
•
Select New to add a new address to the selected interface.
•
Enter an Address Name to identify the address.
The name can contain numbers (0-9), uppercase and lowercase letters (A-Z, a-z), and the special
characters - and _. Spaces and other special characters are not allowed.
• Enter the IP Address.
The IP address can be the IP address of a single computer (for example, 192.45.46.45) or the
address of a subnetwork (for example, 192.168.1.0).
The address must be a valid address for one of the networks or computers connected to the interface.
•
Enter the NetMask.
The netmask should correspond to the address. The netmask for the IP address of a single computer
should be 255.255.255.255. The netmask for a subnet should be 255.255.255.0.
• Select OK to add the address.

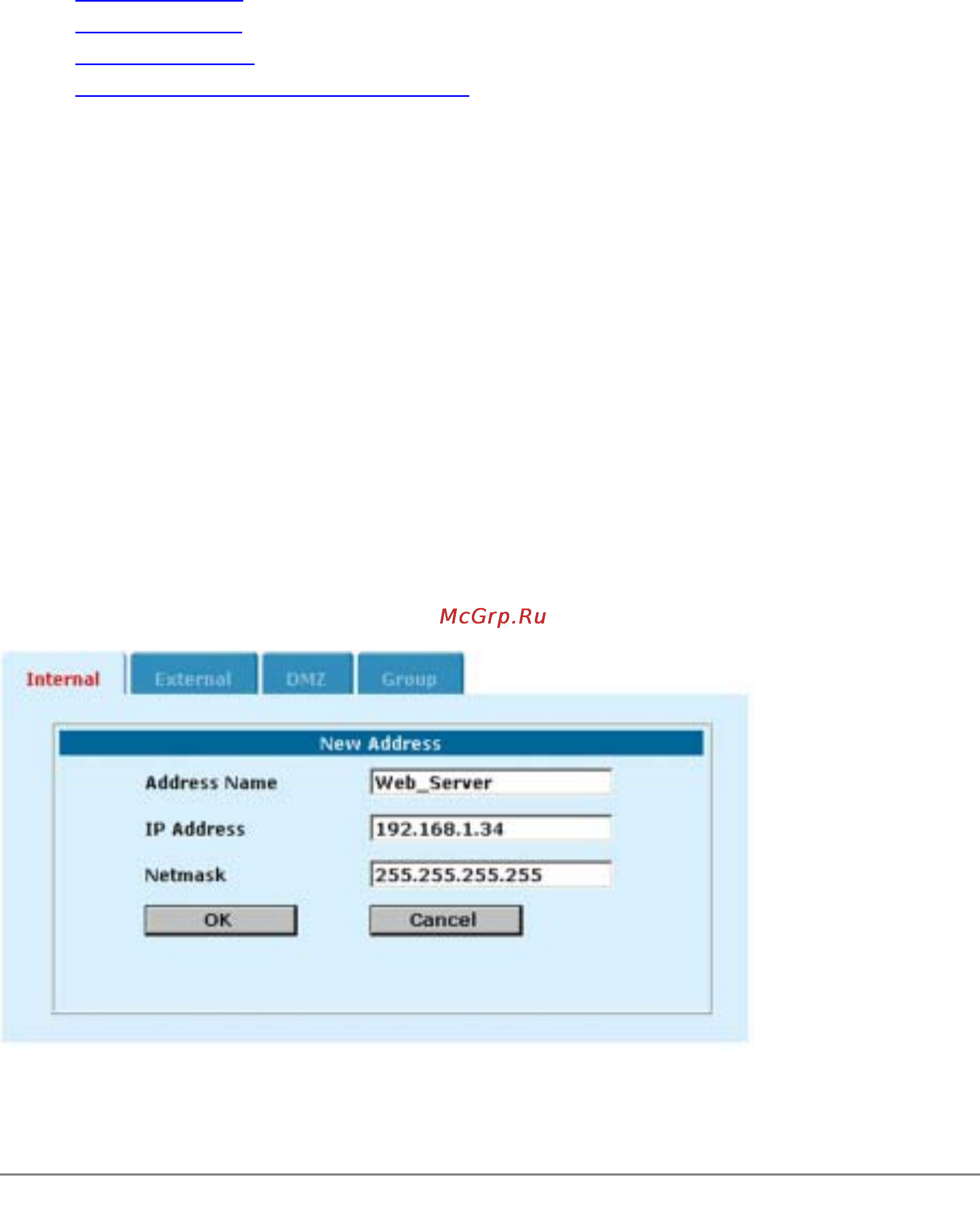

Adding an internal address
