D-Link DFL-1000 [119/168] Exempting urls from content or url blocking
![D-Link DFL-1000 [119/168] Exempting urls from content or url blocking](/views2/1045575/page119/bg77.png)
DFL-1000 User Manual
11
9
• Select Upload URL Block List .
• Enter the path and filename of your URL block list text file, or select Browse and locate the file.
• Select OK to upload the file to the DFL-1000 NPG.
• Select Return to display the updated URL block list.
Each page of the URL block list displays 100 URLs.
• Use Page Down
and Page Up to navigate through the URL block list.
• You can continue to maintain the URL block list by making changes to the text file and uploading it
again.
Removing scripts from web pages
Use the following procedure to configure the DFL-1000 NPG to remove scripts from web pages. You can
configure the DFL-1000 NPG to block Java applets, cookies, and ActiveX.
Blocking of any of these items might prevent some web pages from working properly.
• Go to Web Filter > Script Filter .
•
Select the filtering options that you want to enable.
You can block Java applets, cookies, and ActiveX.
•
Select Apply to enable script filtering.

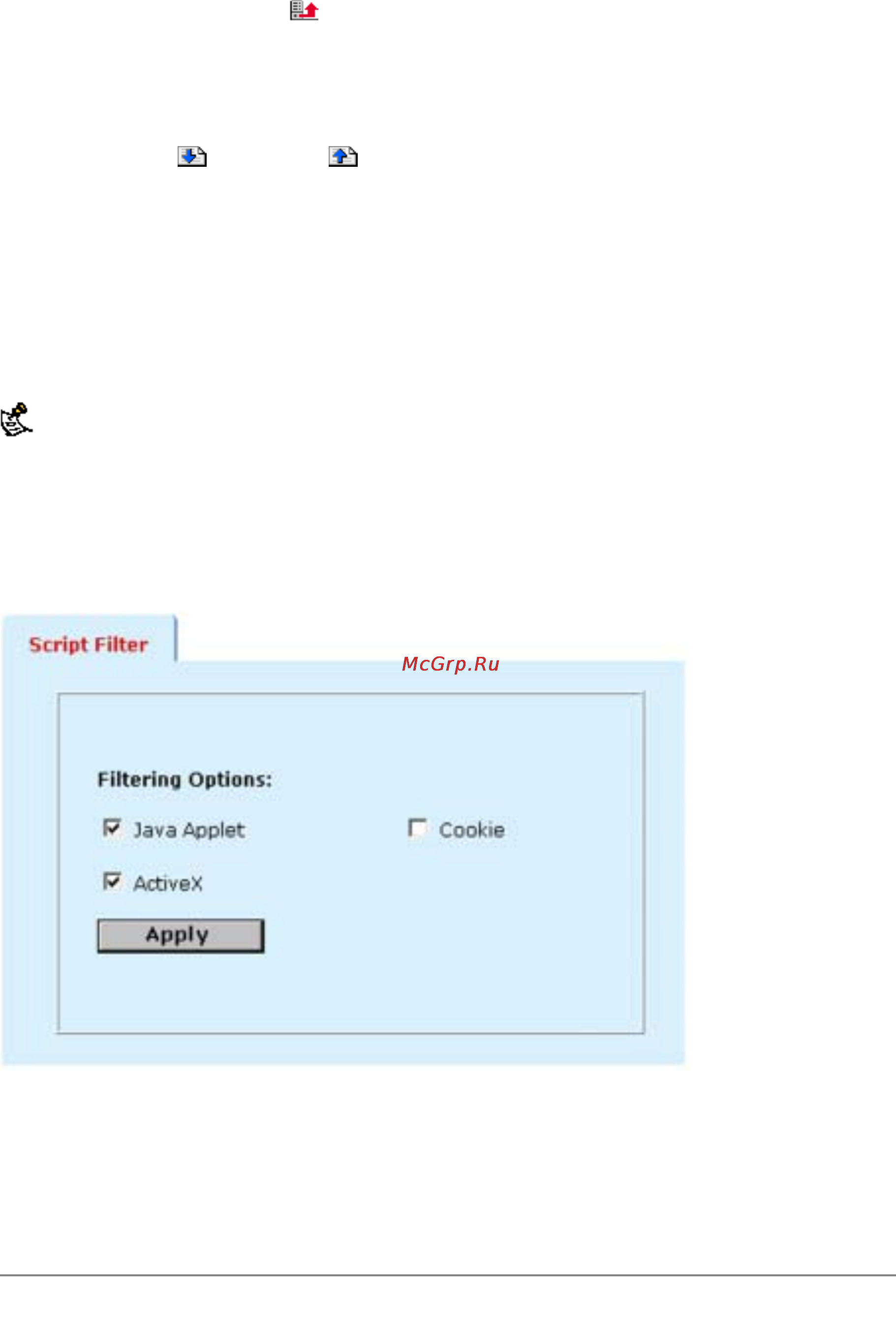

Example script filter settings to block Java applets and ActiveX
Exempting URLs from content or URL blocking
Add URLs to the Exempt URL list to allow legitimate traffic that might otherwise be blocked by content or
URL blocking. For example, if content blocking is set to block pornography-related words and a reputable
