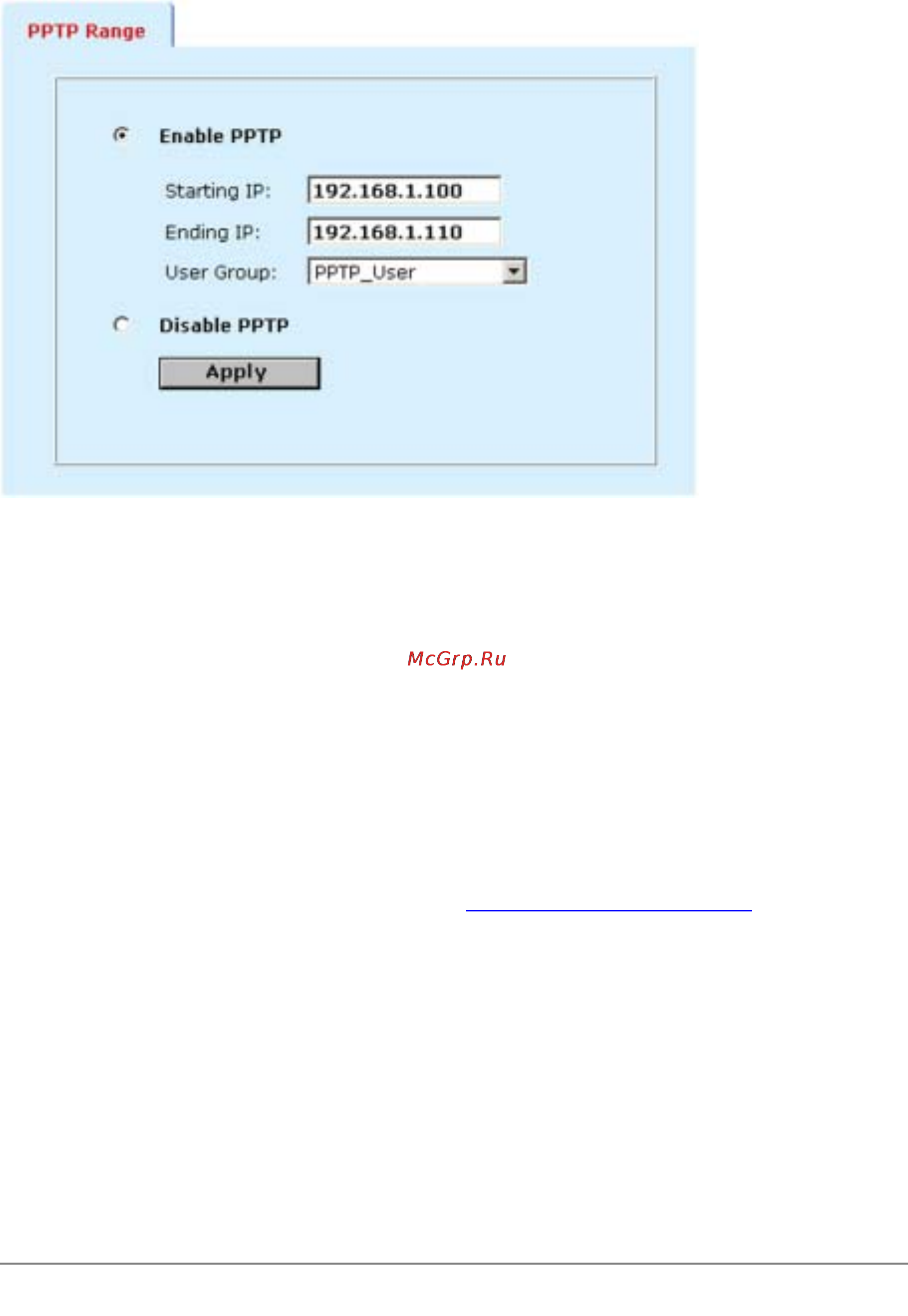

Example PPTP Range configuration
•
Add the addresses from the PPTP address range to the external interface address list. The
addresses can be grouped into an external address group.
•
Add the addresses to which PPTP users can connect to the interface connected to the destination
network. The addresses can be grouped into an address group.
• Add a policy to allow PPTP clients to connect through the DFL-1000 NPG.
Configure the policy as follows:
Source
The address group that matches the PPTP address range.
Destination
The address to which PPTP users can connect.
Service
The service that matches the traffic type inside the PPTP VPN tunnel. For example, if PPTP users can
access a web server, select HTTP.
Action
ACCEPT
NAT
Select NAT if address translation is required.
You can also configure traffic shaping, logging, and web filter settings for PPTP policies.
For information about adding firewall policies, see Adding NAT/Route mode policies
.
Configuring a Windows 98 client for PPTP
Use the following procedure to configure a client computer running Windows 98 so that it can connect to
a DFL-1000 PPTP VPN. To configure the Windows 98 client, you must install and configure Windows
dialup networking and virtual private networking support.
Installing PPTP support
•
Go to Start > Settings > Control Panel > Network .
•
Select Add.
•
Select Adapter.
•
Select Add.
