DFL-1000 User Manual
12
8
See Log message formats for a description of the log message formats.
Searching logs
Use the following procedure to search the active log or any of the saved log files:
• Go to Log&Report > Logging .
• Select Traffic Log , or Event Log.
• To view a log file, select View
.
•
Select
to search the messages in the log file that you are viewing.

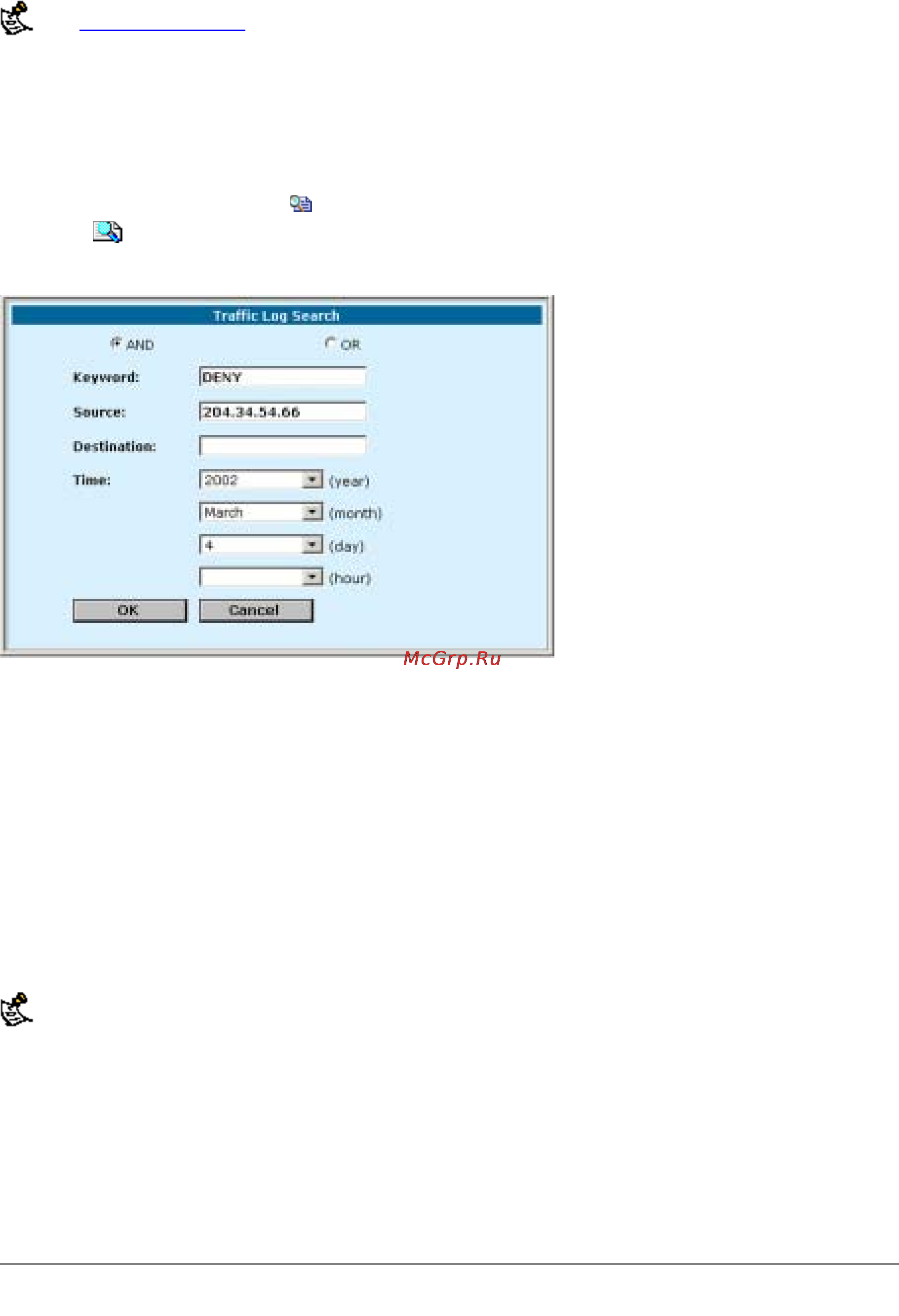

Traffic Log Search
•
Select AND to search for messages that match all the specified search criteria.
•
Select OR to search for messages that match one or more of the specified search criteria.
•
Select one or more of the following search criteria:
Keyword
To search for any text in a log message. Keyword searching is case-sensitive.
Source
To search for any source IP address (traffic log only).
Destination
To search for any destination IP address (traffic log only).
Time
To search log messages created during the selected year, month, day, and hour.
•
Select OK to run the search.
The web-based manager displays the messages that match the search criteria. You can scroll
through the messages or run another search.
After running a search, to display all log messages again, run another search but leave all the search fields
blank.
Downloading a log file to the management computer
You can download traffic, or event log files to the management computer as plain text files. After
downloading, you can view the log file with any text editor. Use the following procedure to download log
files:
• Go to Log&Report > Logging .
• Select Traffic Log , or Event Log.
