DFL-1000 User Manual
2
5
Connecting to your networks
When you have completed the initial configuration, you can connect the DFL-1000 NPG between your
internal network and the Internet.
There are three 10/100Base-TX connectors on the DFL-1000 NPG:
•
Internal for connecting to your internal network
•
External for connecting to the Internet
•
DMZ for connecting to a DMZ network
You can also connect both the external and DMZ interfaces to different Internet connections to provide a
redundant connection to the Internet. See Configuring the DFL-1000 NPG for multiple Internet
connections.
To connect the DFL-1000 NPG:
• Connect the Internal interface to the hub or switch connected to your internal network.
• Optionally connect the DMZ interface to your DMZ network.
You can use a DMZ network to provide access from the Internet to a web server or other server
without installing the servers on your internal network.

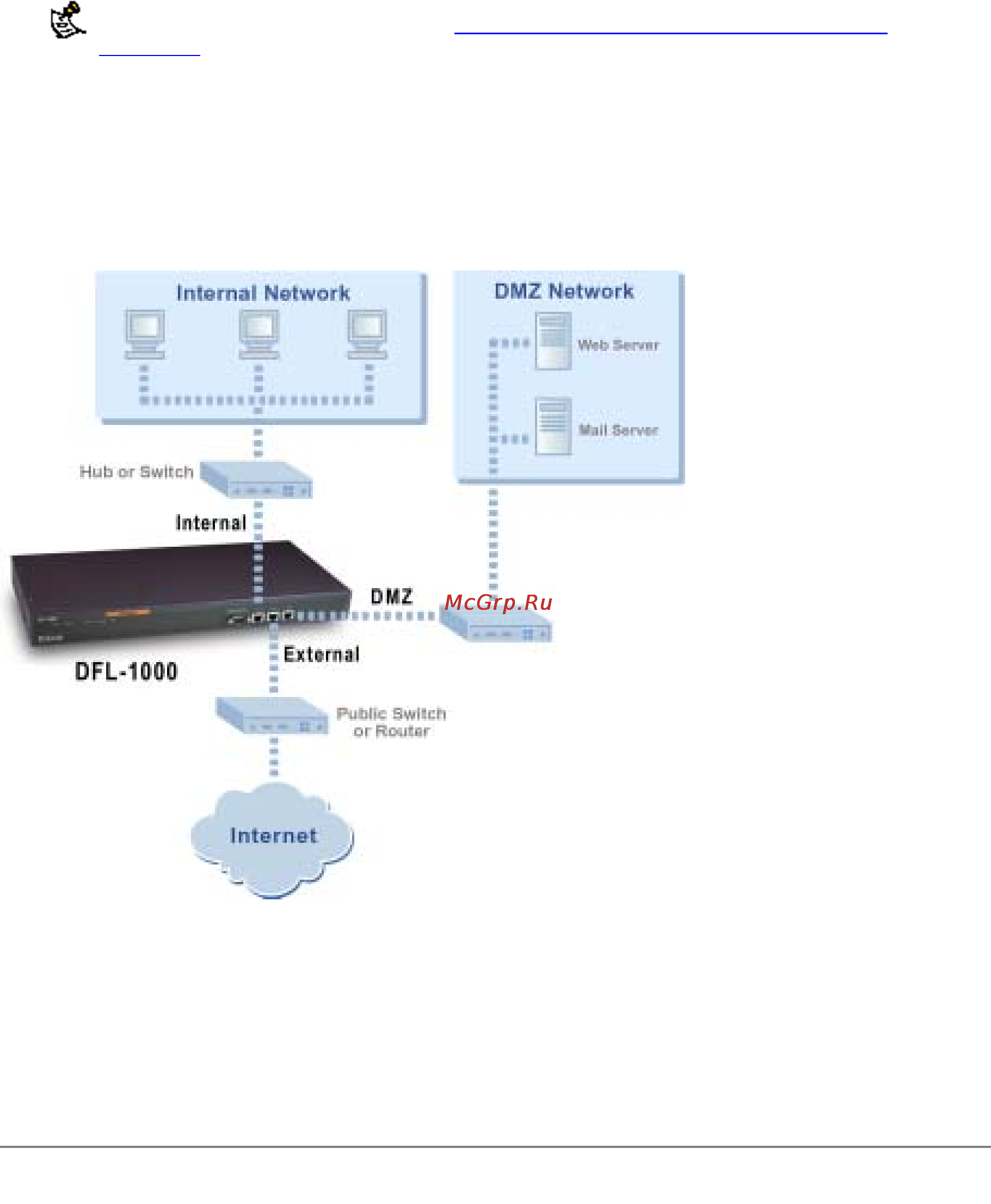

DFL-1000 NAT/Route mode connections
Configuring your networks
If you are running the DFL-1000 NPG in NAT/Route mode, your networks must be configured to route all
Internet traffic to the IP address of the DFL-1000 NPG interface connected to that network. For your
internal network, change the default gateway address of all computers and routers connected directly to
