DFL-1000 User Manual
5
0
If you enter an IP address on the same subnet as the internal interface, the virtual IP can be added to
Ext -> Int or DMZ -> Int policies.
If you enter an IP address on the same subnet as the DMZ interface, the virtual IP can be added to
Ext
->
DMZ policies.
• Set Map to Port to the port number to be added to packets when they are forwarded.
If you do not want to translate the port, enter the same number as the External Service Port.
If you want to translate the port, enter the port number to which to translate the destination port of the
packets when they are forwarded by the firewall.
• Select the protocol to be used by the forwarded packets.
• Select OK to save the port forwarding virtual IP.

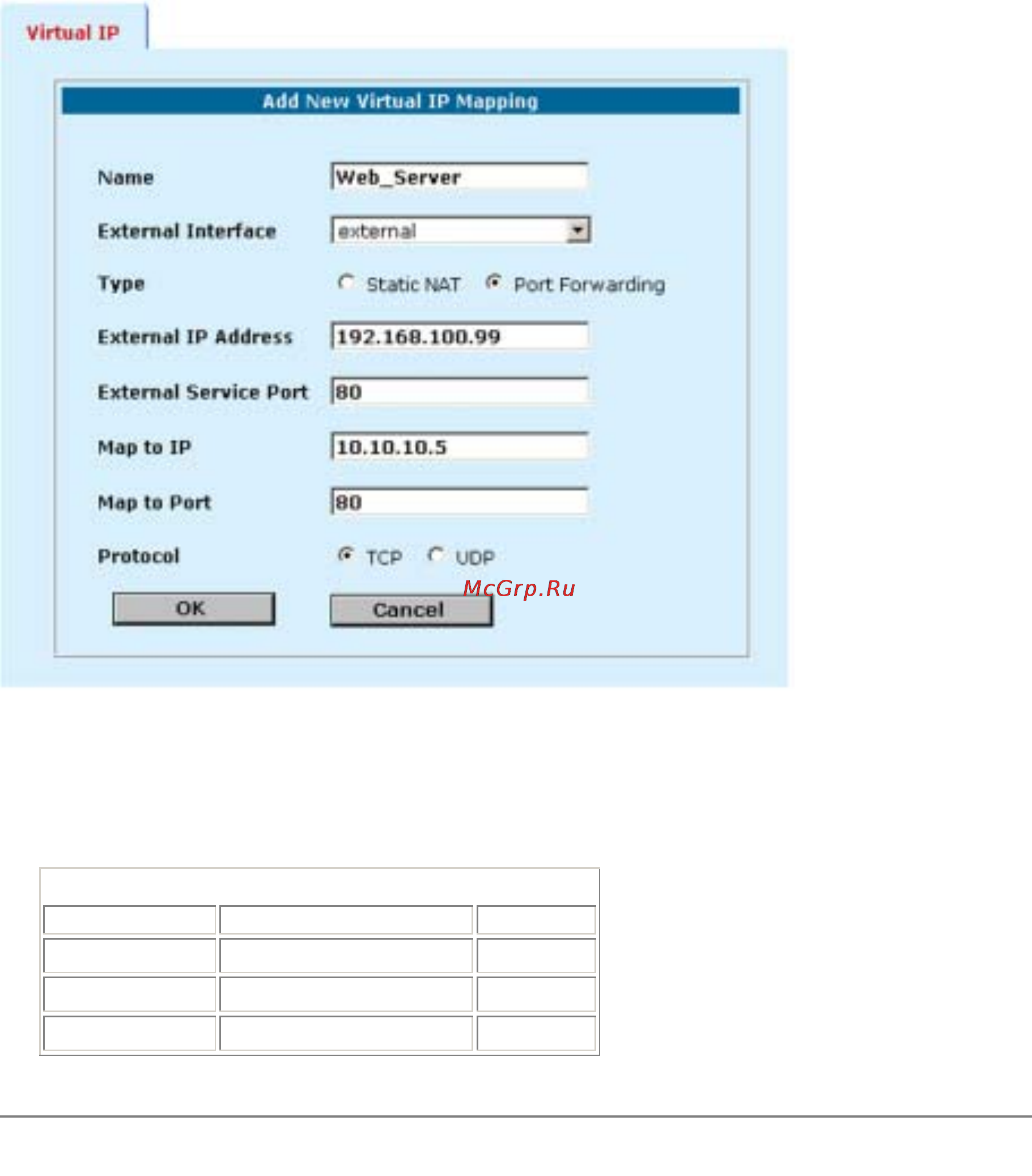

Adding a port forwarding virtual IP
Adding policies with virtual IPs
Use the following procedure to add a policy that uses a virtual IP to forward packets.
• Go to Firewall > Policy .
• Select the type of policy to add.
Virtual IP settings and corresponding policy types
External Interface MAP to IP Policy type
external
Internal network IP address. Ext
->
Int
external
DMZ network IP address. Ext
->
DMZ
dmz
Internal network IP address. DMZ
->
Int
