DFL-1000 User Manual
15
0

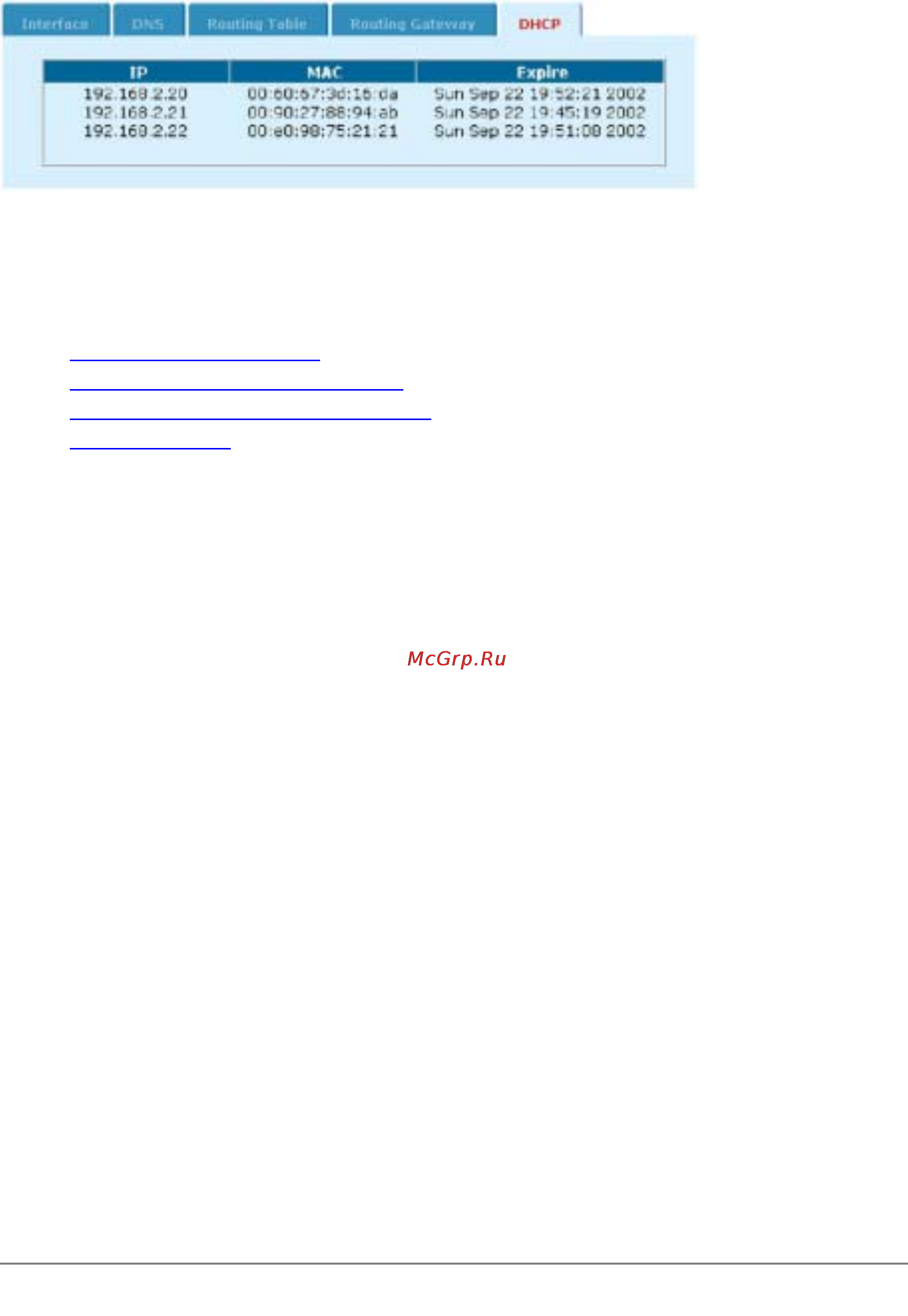

Example dynamic IP list
System configuration
Go to System > Config to make any of the following changes to the DFL-1000 NPG system configuration:
•
Setting system date and time
•
Changing web-based manager options
•
Adding and editing administrator accounts
• Configuring SNMP
Setting system date and time
For effective scheduling and logging, the DFL-1000 NPG time should be accurate. You can either
manually set the time or you can configure the DFL-1000 NPG to automatically keep its time correct by
synchronizing with a Network Time Protocol (NTP) server.
For more information on NTP and to find the IP address of an NTP server that you can use, see
http://www.ntp.org.
To set the date and time:
•
Go to System > Config > Time .
•
Select Refresh to display the current DFL-1000 NPG date and time.
• Select your Time Zone from the list.
• If required, select Daylight Saving Time.
• Optionally select Set Time and set the DFL-1000 NPG date and time to the correct date and time.
