DFL-1000 User Manual

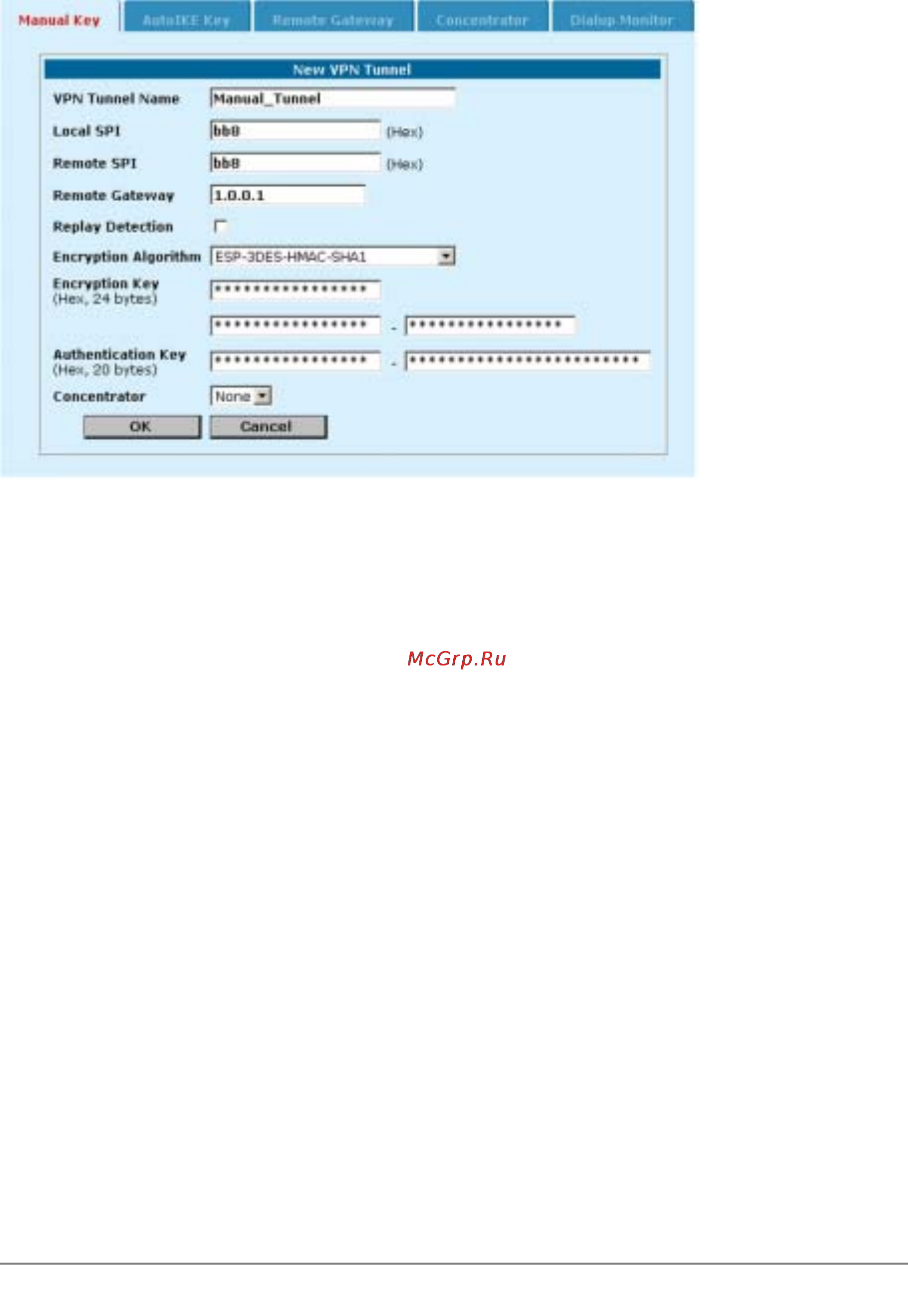

Adding a manual key VPN tunnel

Adding a VPN concentrator

You can add VPN tunnels to a VPN concentrator grouping to create a hub and spoke configuration. The

VPN concentrator allows VPN traffic to pass from one tunnel to the other through the DFL-1000 NPG.

To add a hub and spoke configuration:

• Go to VPN > IPSec > Concentrator.

• Select New to add a VPN Concentrator.

• Enter the name of the new concentrator in the Concentrator Name field.

• To add tunnels to the VPN Concentrator, select a VPN tunnel from the Available Tunnels list and

select the right arrow.

• To remove tunnels from the VPN Concentrator, select the tunnel in the Members list and select the

left arrow.

•

Select OK to add the VPN concentrator.
