D-Link DFL-1000 [54/168] Enabling ip mac binding

DFL-1000 User Manual

Enabling IP/MAC binding

• Go to Firewall > IP/MAC Binding > Setting .

• Select Enable IP/MAC binding going through the firewall to turn on IP/MAC binding for packets that

could be matched by policies.

• Select Enable IP/MAC binding going to the firewall to turn on IP/MAC binding for packets connecting

to the DFL-1000 NPG.

•

Configure how IP/MAC binding handles packets with IP and MAC addresses that are not defined in

the IP/MAC list.

Select Allow traffic to allow all packets with IP and MAC address pairs that are not added to the

IP/MAC binding list.

Select Block traffic to block packets with IP and MAC address pairs that are not added to the IP/MAC

binding list.

• Select Apply to save your changes.

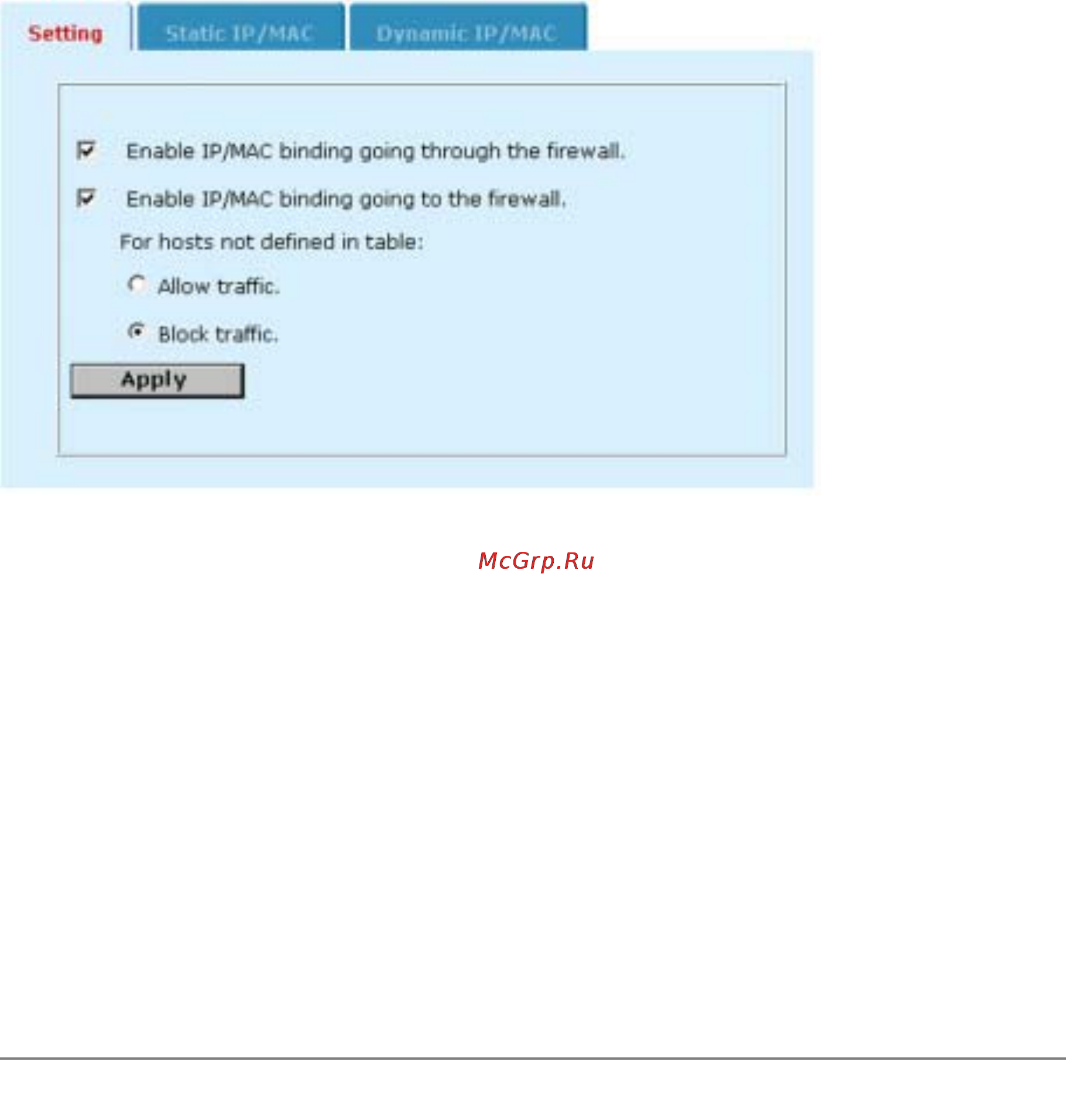

IP/MAC settings
