DFL-1000 User Manual
4
5
•
Select New.

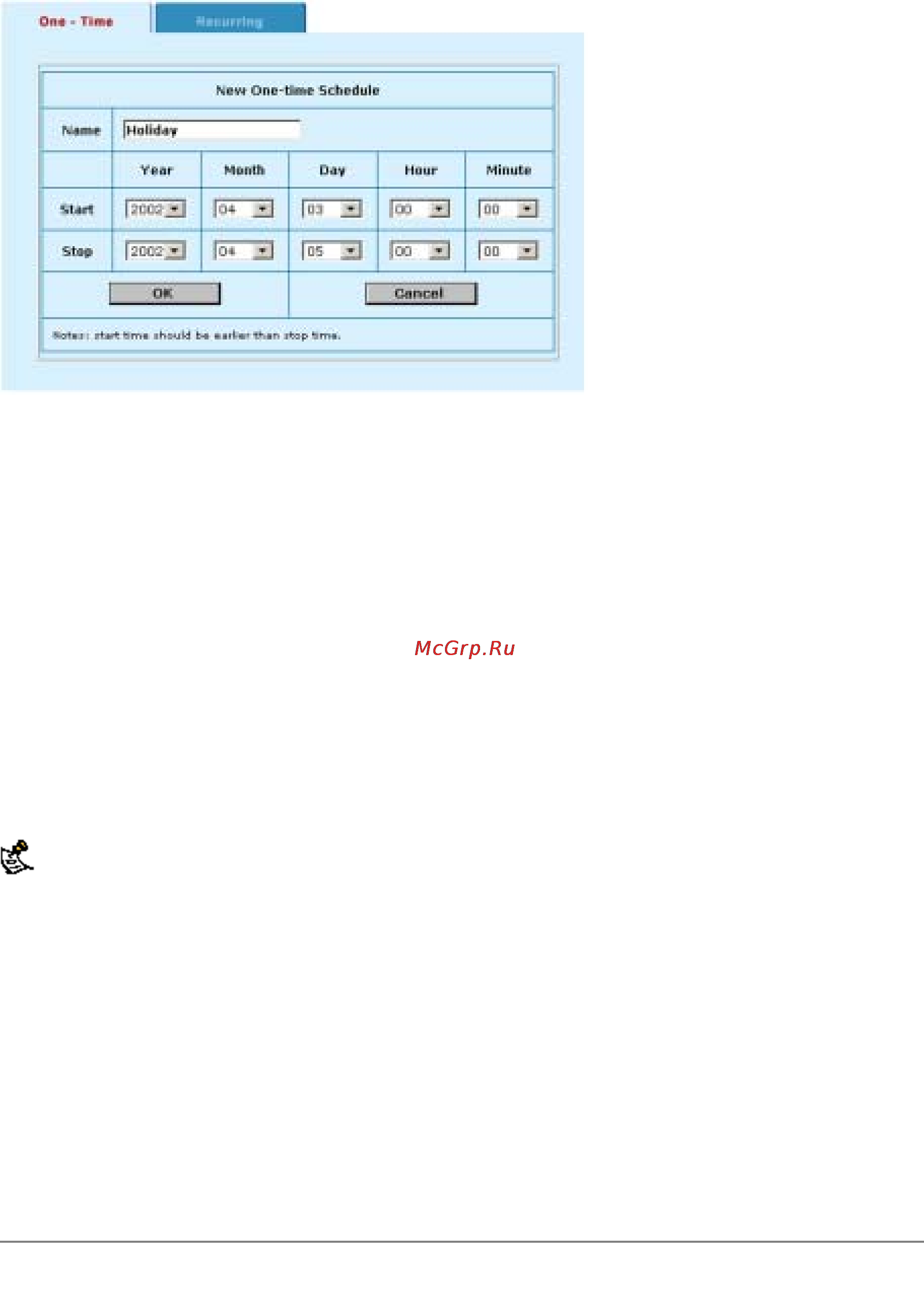

Adding a one-time schedule
•
Enter a Name for the schedule.
The name can contain numbers (0-9), uppercase and lowercase letters (A-Z, a-z), and the special
characters - and _. Other special characters and spaces are not allowed.
•
Set the Start date and time for the schedule.
Set Start and Stop times to 00 for the schedule to be active for the entire day.
• Set the Stop date and time for the schedule.
• Select OK to add the one-time schedule.
Creating recurring schedules
You can create a recurring schedule that activates or deactivates policies at specified times of the day or
on specified days of the week. For example, you might want to prevent Internet use outside of working
hours by creating a recurring schedule.
If you create a recurring schedule with a stop time that occurs before the start time, the schedule will start
at the start time and finish at the stop time on the next day. You can use this technique to create recurring
schedules that run from one day to the next. You can also create a recurring schedule that runs for 24
hours by setting the start and stop times to the same time.
Recurring schedules use the 24-hour clock.
•
Go to Firewall > Schedule > Recurring .
•
Select New to create a new schedule.
