IPSec NAT traversal so that remote IPSec VPN gateways or clients behind a NAT can connect to
an IPSec VPN tunnel.
• VPN hub and spoke using a VPN concentrator to allow VPN traffic to pass from one tunnel to
another tunnel through the DFL-1000 NPG.
• IPSec Redundancy to create a redundant AutoIKE key IPSec VPN configuration to two remote
VPN gateway addresses.
Secure installation, configuration, and management
Installation is quick and simple. When you initially power the DFL-1000 NPG up, it is already configured
with default IP addresses and security policies. All that is required for the DFL-1000 NPG to start
protecting your network is to connect to the web-based manager, set the operating mode and use the
setup wizard to customize DFL-1000 IP addresses for your network. From this foundation you can use
the web-based manager to customize the configuration to meet your needs.
You can also create a basic configuration using the DFL-1000 command line interface (CLI).
Web-based manager
Using a secure HTTPS connection from any computer running Internet Explorer, you can configure and
manage the DFL-1000 NPG. The web-based manager supports multiple languages. You can configure
the DFL-1000 NPG for secure administration from any DFL-1000 interface, including secure remote
management through the external interface from anywhere on the Internet.
Configuration changes made with the web-based manager are effective immediately without the need to
reset the firewall or interrupt service. Once a satisfactory configuration has been established, it can be
downloaded and saved. The saved configuration can be restored at any time.

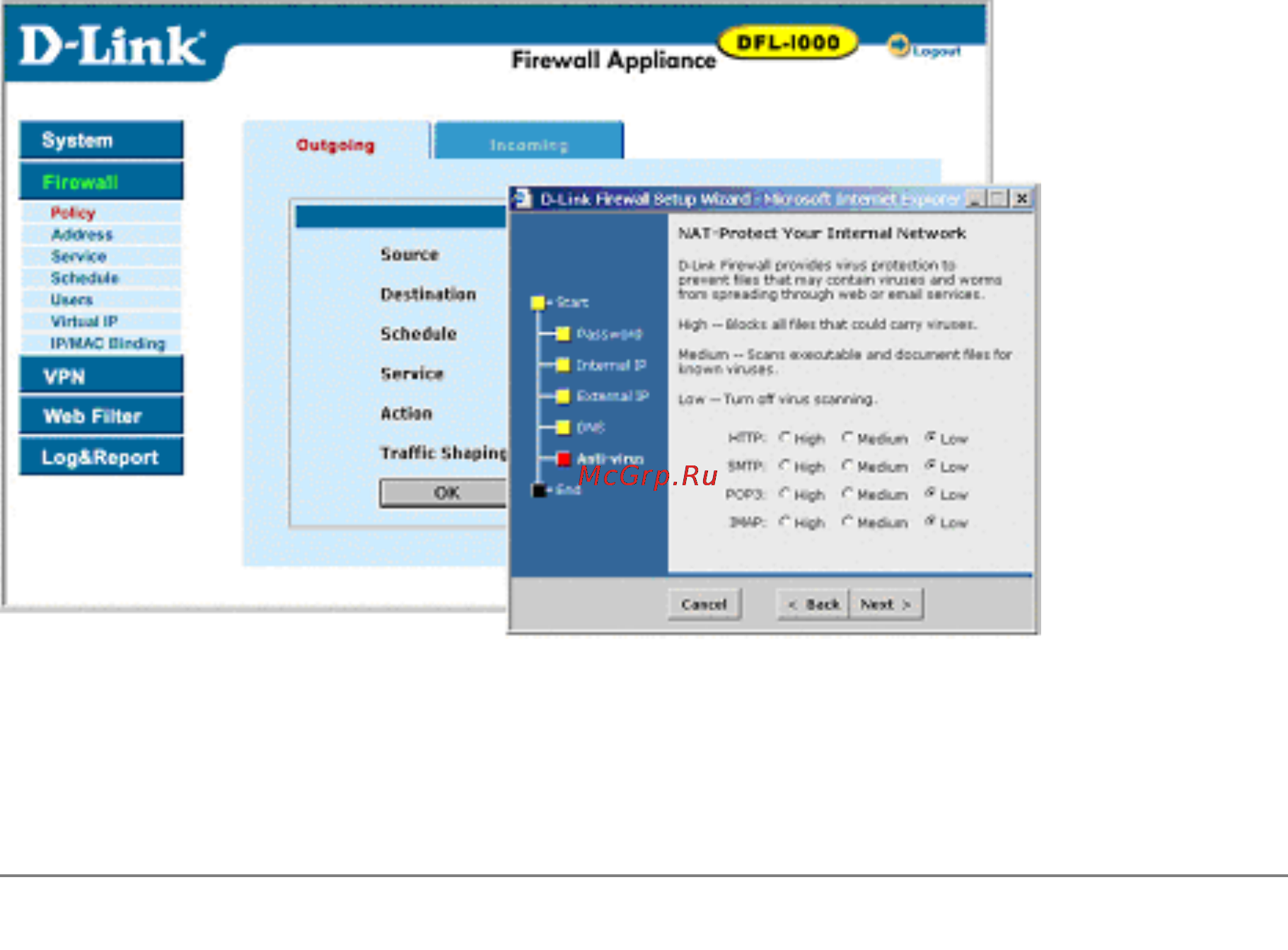

The DFL-1000 web-based manager and setup wizard
Command line interface
For troubleshooting and professional scripting, you can access the DFL-1000 command line interface
(CLI) by connecting a management computer serial port to the DFL-1000 RS-232 serial Console
connector. You can also use the SSH protocol to create a secure connection to the DFL-1000 CLI from
