DFL-1000 User Manual
7
3

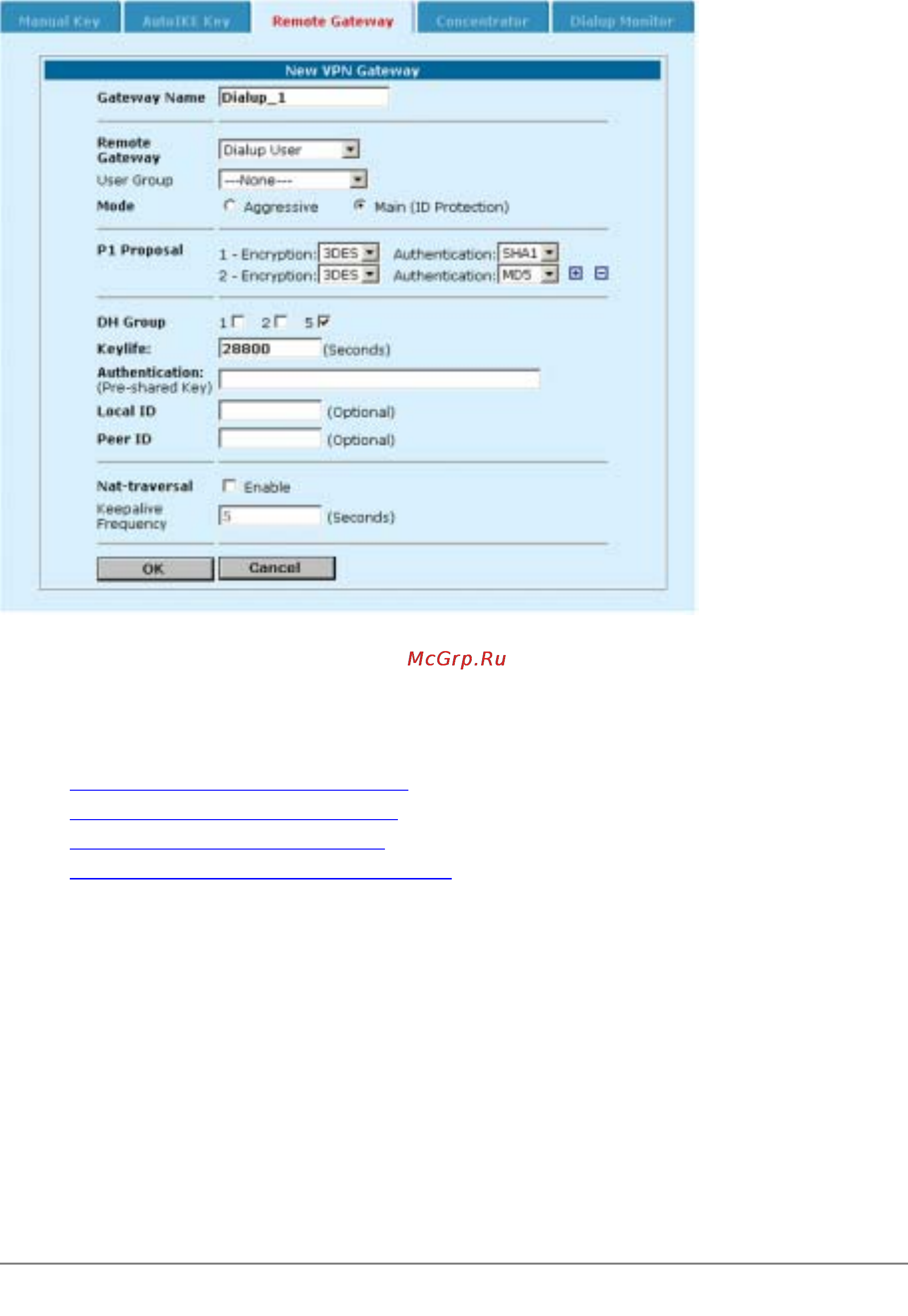

Adding a remote gateway (Dialup User selected)
About dialup VPN authentication
For dialup VPN authentication to work you must create compatible configurations on the DFL-1000 NPG
that is the dialup server and its dialup clients. The configurations required for the server and the clients
are different for different dialup gateway configurations. There are four possible dialup VPN authentication
configurations:
• Main mode with no user group selected
• Main mode with a user group selected
• Aggressive mode with no user group
• Aggressive mode with a user group selected
For each variation, the remote gateway field of the dialup server remote gateway configuration must be
set to dialup user and all of the clients must have their remote gateway or equivalent set to the static IP
address of the remote gateway server.
The following sections describe how to configure authentication on the server and clients for each of
these variations.
