DFL-1000 User Manual
124
(WELF) and are compatible with WebTrends NetIQ Security Reporting Center 2.0 and Firewall Suite 4.1.
See the Security Reporting Center and Firewall Suite documentation for more information.
To record logs on a NetIQ WebTrends server:
• Go to Log&Report > Log Setting .
• Select Log in WebTrends Enhanced Log Format.
• Enter the IP address of the NetIQ WebTrends firewall reporting server.
• Select Apply to save your log settings.

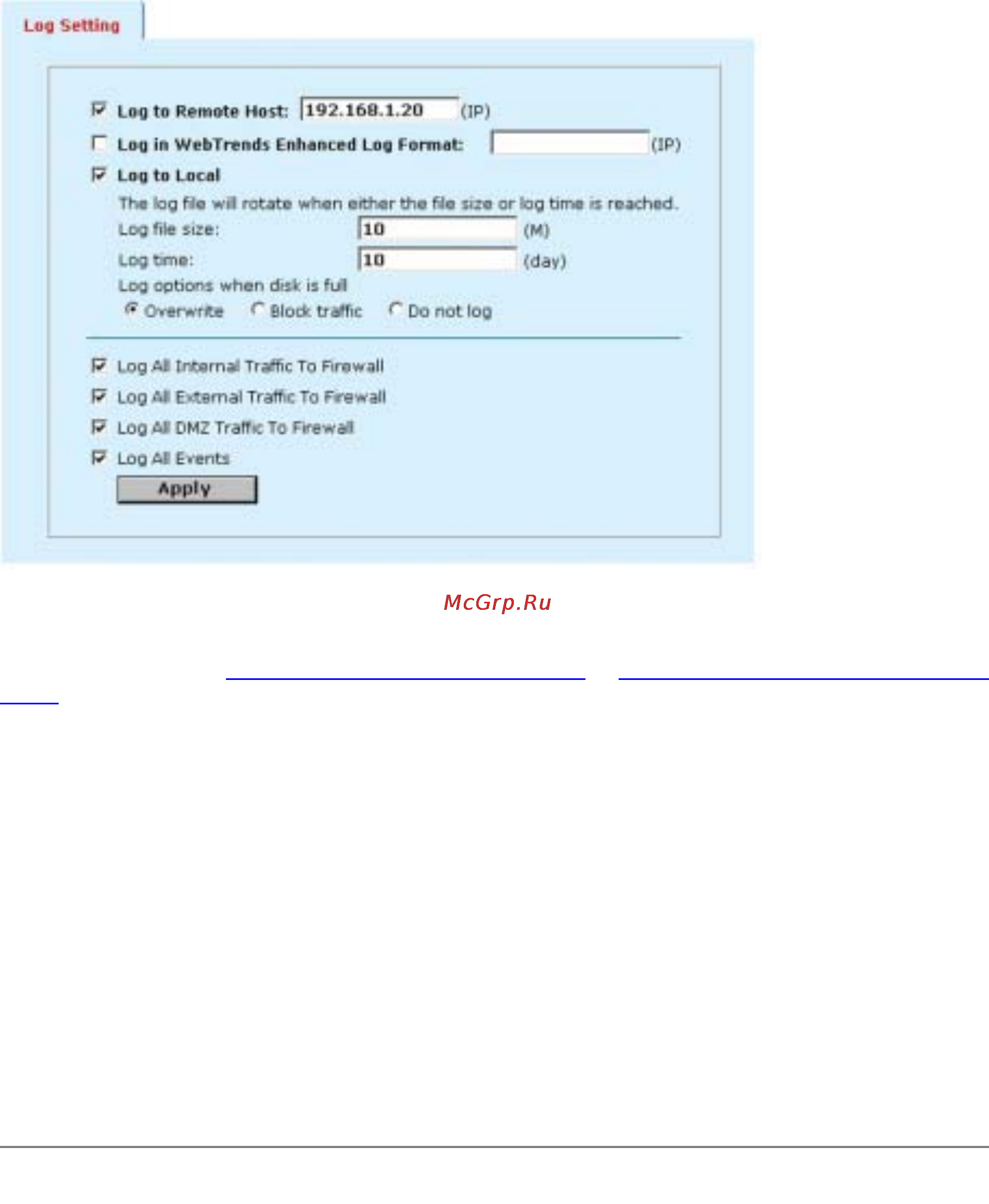

Example log settings with optional hard disk
Recording logs on the DFL-1000 hard disk
You can record log files on the DFL-1000 hard disk if one is installed on your system. If you do not have a
hard disk installed, see Recording logs on a remote computer
or Recording logs on a NetIQ WebTrends
server. On most DFL-1000 models you can record logs to memory only if no hard disk is installed.
To record logs on the DFL-1000 hard disk:
• Go to Log&Report > Log Setting .
• Select Log to Local.
• Type a maximum log file size (in Mbytes).
When the log file reaches this size, the current log file is closed and saved and a new active log file is
started. The default maximum log size is 10 Mbytes.
