DFL-1000 User Manual
1
7
Getting started
This chapter describes unpacking, setting up, and powering on your DFL-1000 NPG. When you have
completed the procedures in this chapter, you can proceed to one of the following:
•
If you are going to run your DFL-1000 NPG in NAT/Route mode, go to NAT/Route mode
installation.
• If you are going to run your DFL-1000 NPG in Transparent mode, go to Transparent mode
installation.
This chapter includes:
• Package contents
• Mounting
•
Powering on
•
Initial configuration
•
Connecting to the web-based manager
•
Connecting to the command line interface (CLI)
•
Next steps
Package contents
The DFL-1000 package contains the following items:
•
DFL-1000 NPG
•
one orange crossover ethernet cable
•
one gray regular ethernet cable
•
one null modem cable
•
DFL-1000 QuickStart Guide
• one power cable
• CD containing this DFL-1000 User Manual and the DFL-1000 CLI Reference Guide
• two 19-inch rack mount brackets

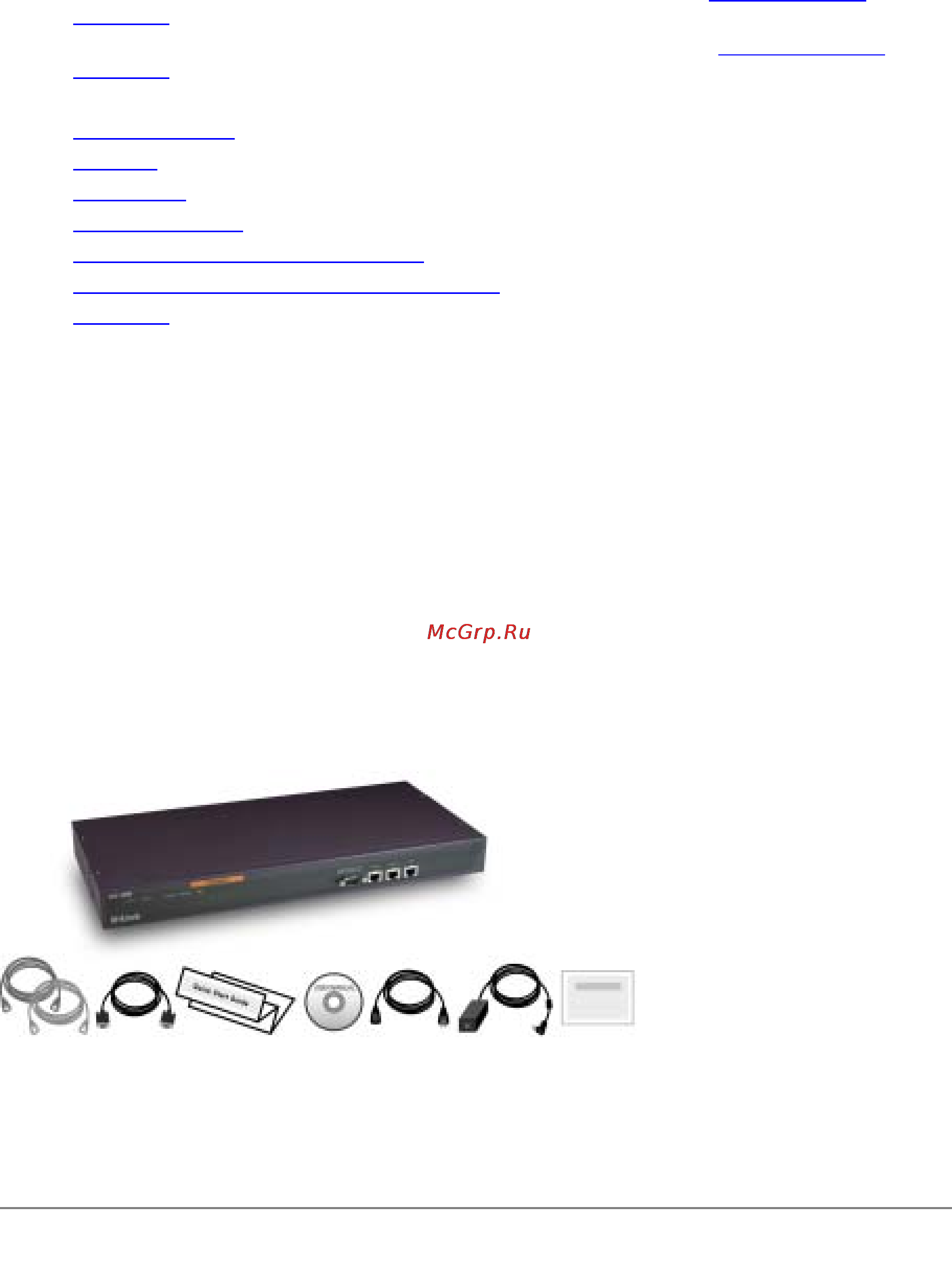

DFL-1000 package contents
