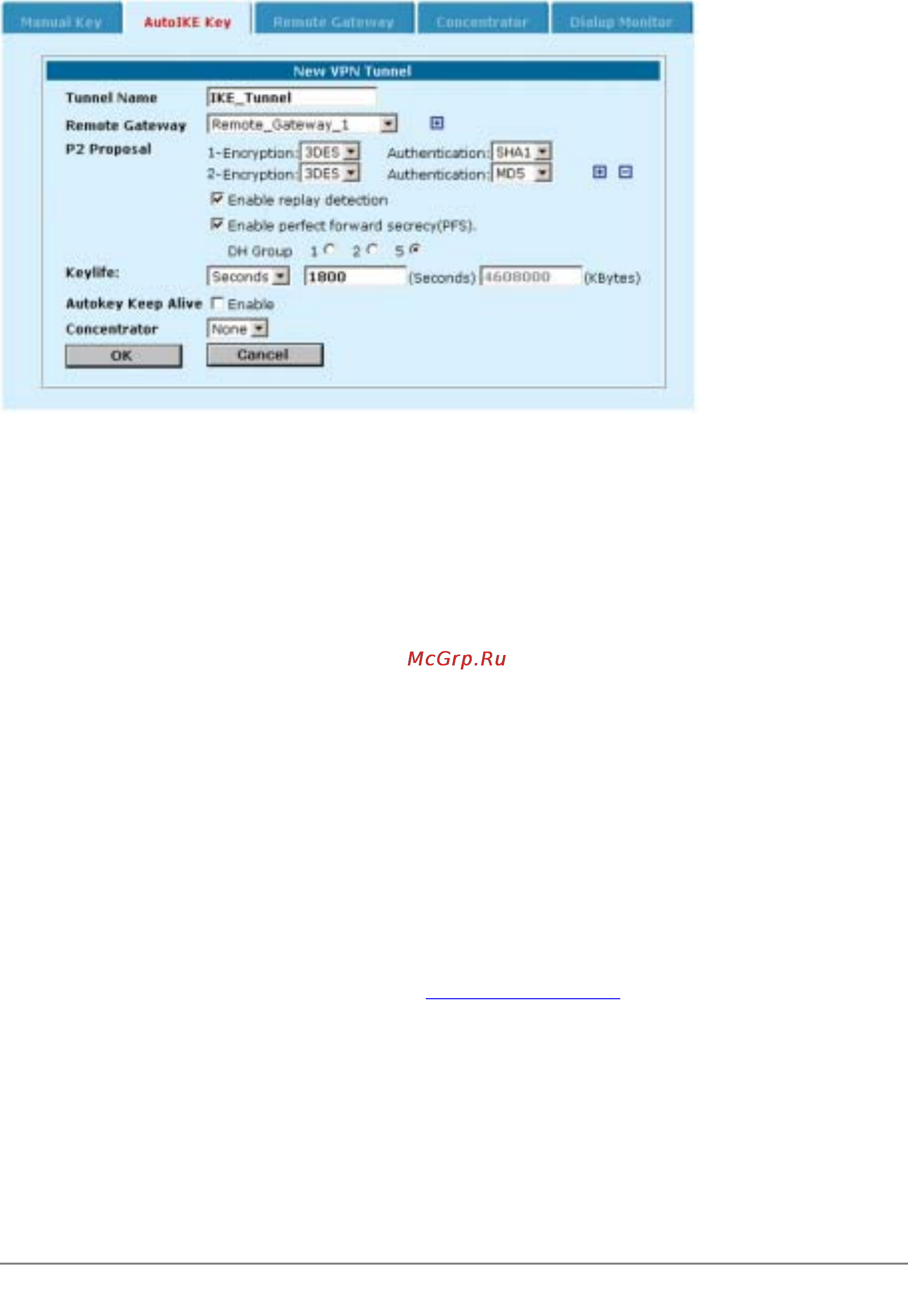

Adding an AutoIKE key VPN tunnel
About the P2 proposal
During tunnel negotiation, the VPN gateways negotiate to select a common algorithm for data
communication. When you select algorithms for the P2 proposal, you are selecting the algorithms that the
DFL-1000 NPG proposes during phase 2 negotiation. For phase 2 to be completed successfully, each
VPN gateway must have at least one encryption and one authentication algorithm in common.
• Select DES to propose to encrypt packets using DES encryption.
• Select 3DES to propose to encrypt packets using triple-DES encryption.
• Select MD5 to propose to use MD5 authentication.
• Select SHA1 to propose to use SHA1 authentication.
• Select NULL to propose that the VPN packets not be encrypted or that a hash is not made for
authentication.
About replay detection
IPSec tunnels can be vulnerable to replay attacks. A replay attack occurs when an unauthorized party
intercepts a series of IPSec packets and replays them back into the tunnel. An attacker can use this
technique to cause a denial of service (DoS) attack by flooding the tunnel with packets. An attacker could
also change and then replay intercepted packets to attempt to gain entry to a trusted network.
Enable replay detection to check the sequence number of every IPSec packet to see if it has previously
been received. If packets arrive out of sequence, the DFL-1000 NPG discards them.
The DFL-1000 NPG sends an alert email when replay detection detects a replay packet. To receive the
alert email, you must configure alert email and select "Enable alert email for critical firewall/VPN events or
violations". For information about alert email, see Configuring alert email
.
About perfect forward secrecy (PFS)
Perfect forward secrecy (PFS) improves the security of a VPN tunnel by making sure that each key
created during phase 2 is not related to the keys created during phase 1 or to other keys created during
phase 2. PFS might reduce performance because it forces a new Diffie-Hellman key exchange when the
phase 2 tunnel starts and whenever the keylife ends and a new key must be generated. As a result, using
PFS might cause minor delays during key generation.
