DFL-1000 User Manual
154
Get Community
Also called read community, get community is a password to identify SNMP get requests sent to
the DFL-1000 NPG. When an SNMP manager sends a get request to the DFL-1000 NPG, it must
include the correct get community string.
The default get community string is "public". Change the default get community string to keep
intruders from using get requests to retrieve information about your network configuration. The get
community string must be used in your SNMP manager to enable it to access DFL-1000 NPG
SNMP information.
The get community string can be up to 31 characters long and can contain numbers (0-9),
uppercase and lowercase letters (A-Z, a-z), and the special characters - and _. Spaces and the \ <
> [ ] ` $ % & characters are not allowed.
Trap
Community
The trap community string functions like a password that is sent with SNMP traps.
The default trap community string is "public". Change the trap community string to the one
accepted by your trap receivers.
The trap community string can be up to 31 characters long and can contain numbers (0-9),
uppercase and lowercase letters (A-Z, a-z), and the special characters - and _. Spaces and the \ <
> [ ] ` $ % & characters are not allowed.
Trap Receiver
IP Addresses
Type the IP addresses of up to three trap receivers on your network that are configured to receive
traps from your DFL-1000 NPG. Traps are only sent to the configured addresses.
•
Select Apply.

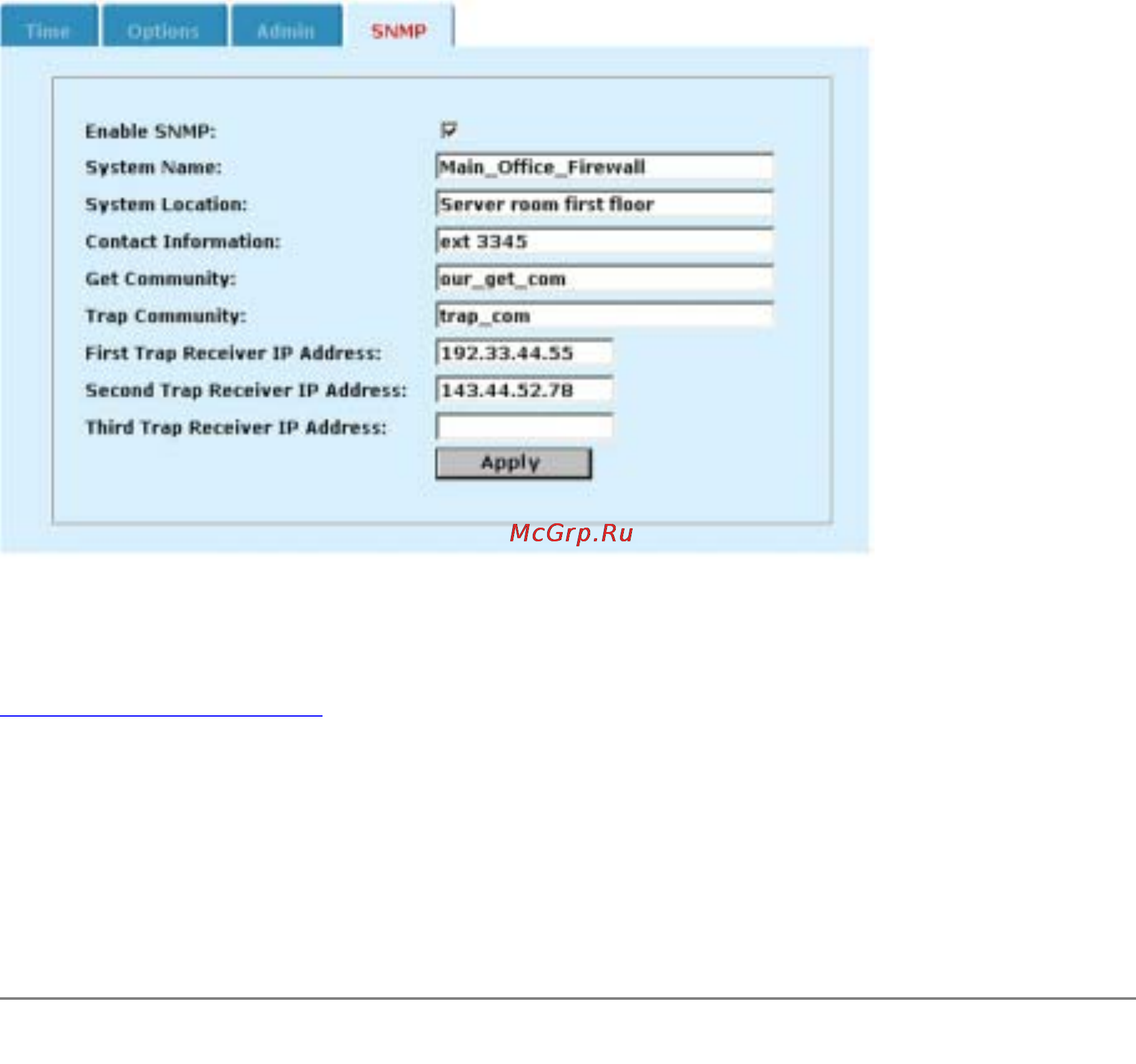

Example SNMP configuration
DFL-1000 MIBs
The DFL-1000 agent supports the standard Internet MIB-II System Group (RFC-1213) for reporting basic
system information. The agent also supports a DFL-1000 MIB that reports firewall and VPN information.
Example DFL-1000 MIB fields
shows the system and DFL-1000 MIB fields.
You must compile the following MIBs in your SNMP manager to communicate with the DFL-1000 agent:
FN-FIREWALL.mib
D-Link firewall MIB that collects all firewall policy information.
FN-SMI.mib
Defines the private UCD SNMP MIB extensions.
FN-SYSTEM.mib
D-Link system MIB that collects all system information.
FN-VPN.mib
D-Link VPN MIB that collects all VPN configuration information.
