DFL-1000 User Manual
6
2
Adding user names and configuring authentication
• Go to User > Local .
• Select New to add a new user name.
• Enter the user name.
The user name can contain numbers (0-9), uppercase and lowercase letters (A-Z, a-z), and the
special characters - and _. Other special characters and spaces are not allowed.
•
Select one of the following authentication configurations:
Disable
Prevent this user from authenticating.
Password
Enter the password that this user must use to authenticate. The password should be at least six
characters long. The password can contain numbers (0-9), uppercase and lowercase letters (A-Z,
a-z), and the special characters - and _. Other special characters and spaces are not allowed.
Radius
Require the user to authenticate to a RADIUS server. Select the name of the RADIUS server to
which the user must authenticate. You can only select a RADIUS server that has been added to the
DFL-1000 RADIUS configuration. See Configuring RADIUS support
.
• Select Try other servers if connect to selected server fails if you want the DFL-1000 NPG to try to
connect to other RADIUS servers added to the DFL-1000 RADIUS configuration.
• Select OK.

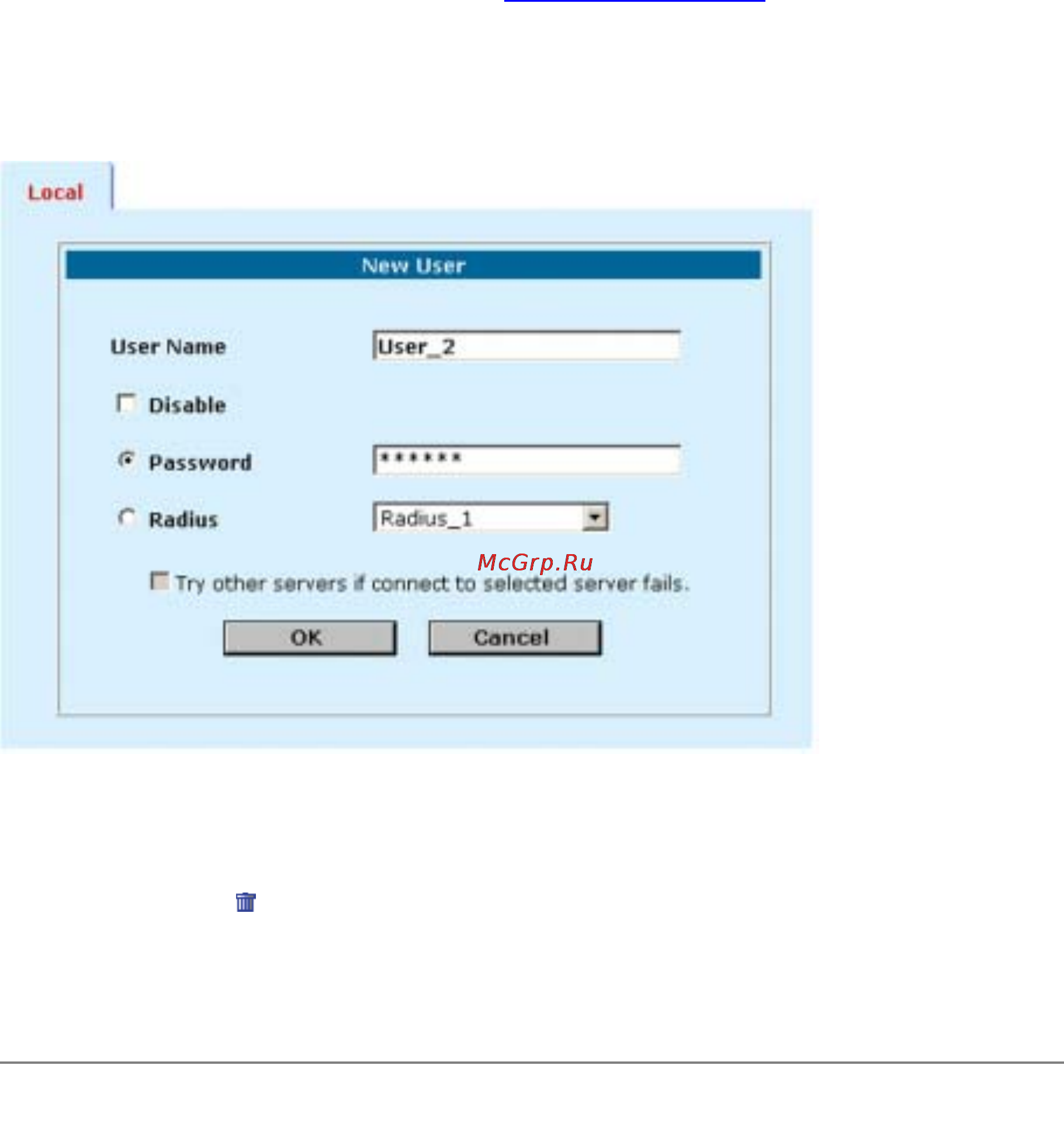

Adding a user name
Deleting user names from the internal database
If you delete a user, the user is also removed from any user groups that it has been added to.
• Go to User > Local .
• Select Delete User
for the user name to delete.
• Select OK.
