DFL-1000 User Manual
9
2
DH Group
Should match the VPN tunnel DH Group. 5
Authentication
Key
The client authentication key should match the DFL-1000 VPN gateway
authentication key.
ddcHH01887d
Dialup VPN
Use a dialup VPN configuration to allow remote VPN gateways or clients with dynamic IP addresses to
connect to a DFL-1000 VPN gateway. Gateways or clients with dynamic IP addresses can be home or
travelling users who dial into the Internet and are dynamically assigned an IP address by their ISP (using
PPPoE, DHCP, or a similar protocol).

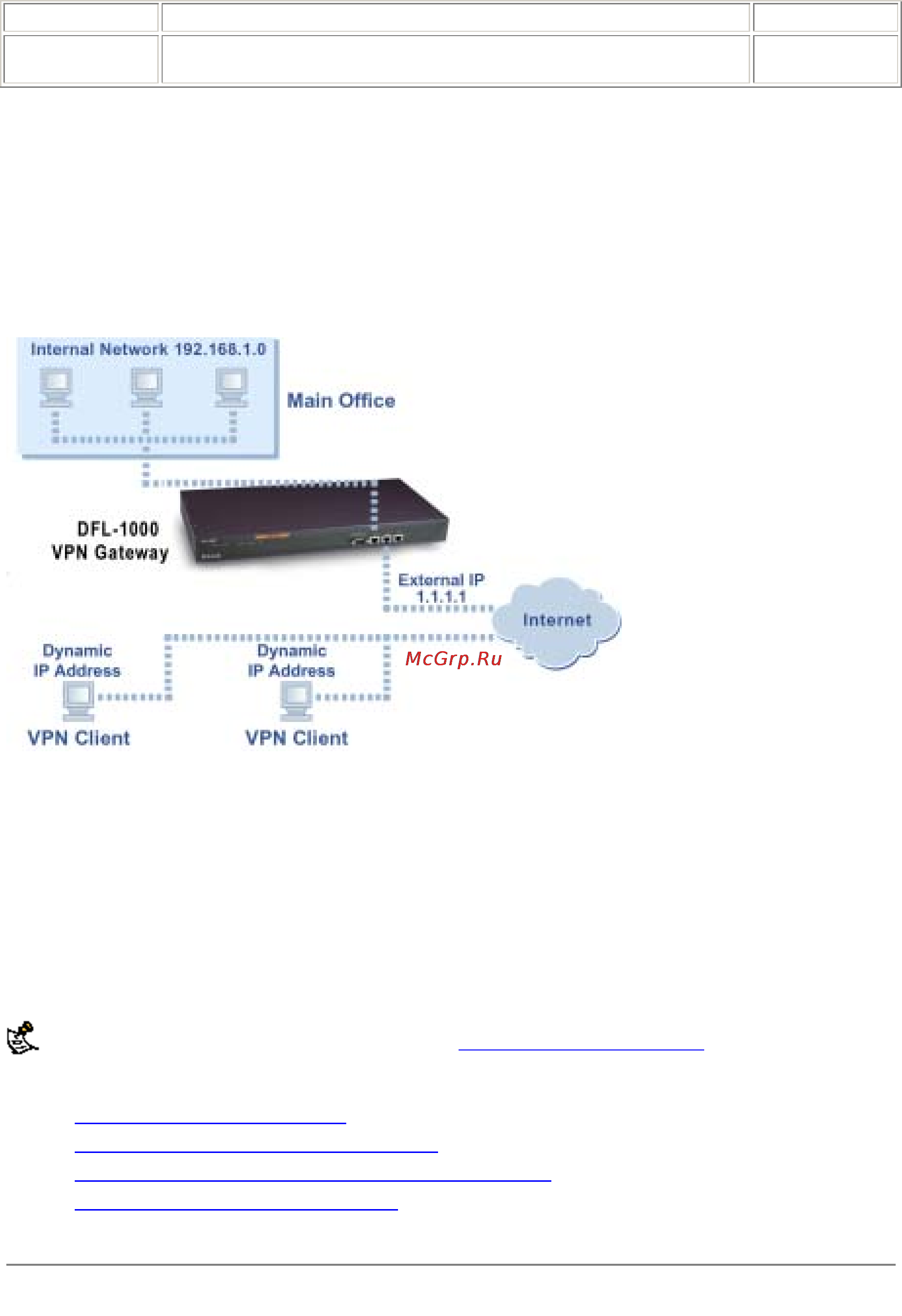

Example dialup VPN configuration
This example describes creating a dialup VPN configuration by adding a remote gateway. This example
also describes how to create VPN tunnels, source and destination addresses, and VPN policies so that
remote VPN gateways and clients with dynamic IP addresses can connect to the DFL-1000 dialup VPN
gateway.
A remote IPSec VPN gateway or client requires the following IPSec parameters to connect to the dialup
VPN gateway:
•
a matching authentication key,
•
a remote gateway IP address set to the IP address of the DFL-1000 NPG configured for dialup
VPN.
You can view the status of a dialup VPN configuration using the dialup monitor.
For more information about dialup authentication, see About dialup VPN authentication.
Use the following procedures to create the example dialup VPN configuration:
•
Adding a dialup remote gateway
•
Adding AutoIKE key tunnels for dialup VPN
•
Adding source and destination addresses for dialup VPN
•
Adding encrypt policies for dialup VPN
