DFL-1000 User Manual
8
0

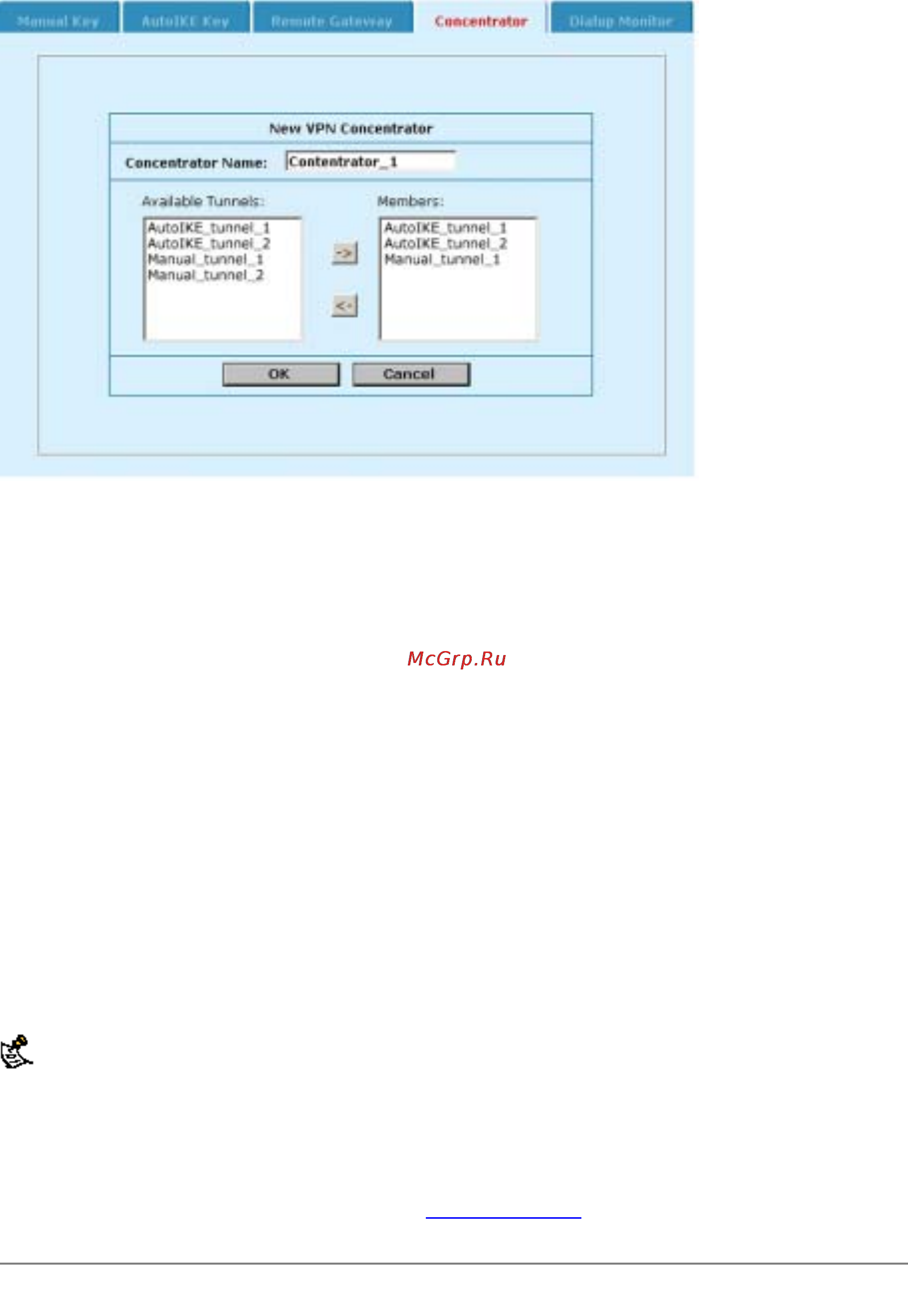

Adding a VPN Concentrator
Adding an encrypt policy
Add encrypt policies to connect users on your internal network to a VPN tunnel. Encrypt policies are
always outgoing policies. For example, if you have users on your internal network that should be able to
connect to a network behind a remote DFL-1000 NPG VPN gateway on the Internet, you must add an Int
->
Ext encrypt policy. The source of this policy must be an address on your internal network. The
destination of this policy must be the address of the network behind the remote DFL-1000 NPG gateway.
The policy must also include the VPN tunnel that you created to communicate with the remote DFL-1000
NPG VPN gateway. When users on your internal network attempt to connect to the internal network
behind the remote DFL-1000 NPG gateway, the encrypt policy intercepts the connection attempt and
starts the VPN tunnel added to the policy. The tunnel uses the remote gateway added to its configuration
to connect to the remote DFL-1000 NPG VPN gateway and the DFL-1000 NPGs use their remote
gateway and VPN tunnel configurations to establish a VPN tunnel between them.
Using encrypt policies, you can control:
•
the direction of traffic flow through the VPN,
•
the addresses that can connect to the VPN tunnel.
The source and destination addresses that you specify when you add an encrypt policy identify the
computers or networks that can connect using the VPN. Users connecting from either the source or
destination address will be able to connect to the other address securely using VPN.
The destination address can be a VPN client address on the Internet or the address of a network behind a
remote VPN gateway.
To add an encrypt policy:
• Add the source address for the policy.
The source address is the IP address of the local network, usually on your internal network, that can
connect to the VPN.
For information about adding addresses, see Adding addresses
.
