AEG 411570 PS 305 DG [4/111] English

AEG 411570 PS 305 DG [4/111] English
6 7
Do not use cracked or distorted saw blades.
Before using the tool please read the instructions. If
possible have the tool demonstrated.
The dust produced when using this tool may be harmful
to health. Use a dust absorption system and wear a
suitable dust protection mask. Remove deposited dust
thoroughly, e.g. with a vacuum cleaner.
Stock having a round or irregular cross section (such as
rewood) must not be cut, as it can not be securely held
during cutting. When sawing thin stock layed on edge, a
suitable auxilary fence must be used for rm support.
SPECIFIED CONDITIONS OF USE
The mitre saw can be used for sawing solid wood,
bonded wood, glued veneer, materials similar to wood,
and plastics.
Do not use this product in any other way as stated for
normal use.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this
product is in conformity with the following standards or
standardized documents. EN 61029, EN 55014-1, EN
55014-2, EN 61000-3-2, EN 61000-3-3 in accordance
with the regulations 98/37/EC, 2004/108/EC
Rainer Kumpf
Manager Product Development
Winnenden, 2008-08-26
MAINS CONNECTION
Connect only to single-phase a.c. current and only to
the system voltage indicated on the rating plate. It is
also possible to connect to sockets without an earthing
contact as the design conforms to safety class II.
MAINTENANCE
The ventilation slots of the machine must be kept clear
at all times.
Use only AEG accessories and AEG spare parts.
Should components need to be replaced which have not
been described, please contact one of our AEG service
agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered.
Please state the Article No. as well as the machine type
printed on the label and order the drawing at your local
service agents or directly at: AEG Electric Tools,
Max-Eyth-Straße 10, D-71364 Winnenden, Germany.

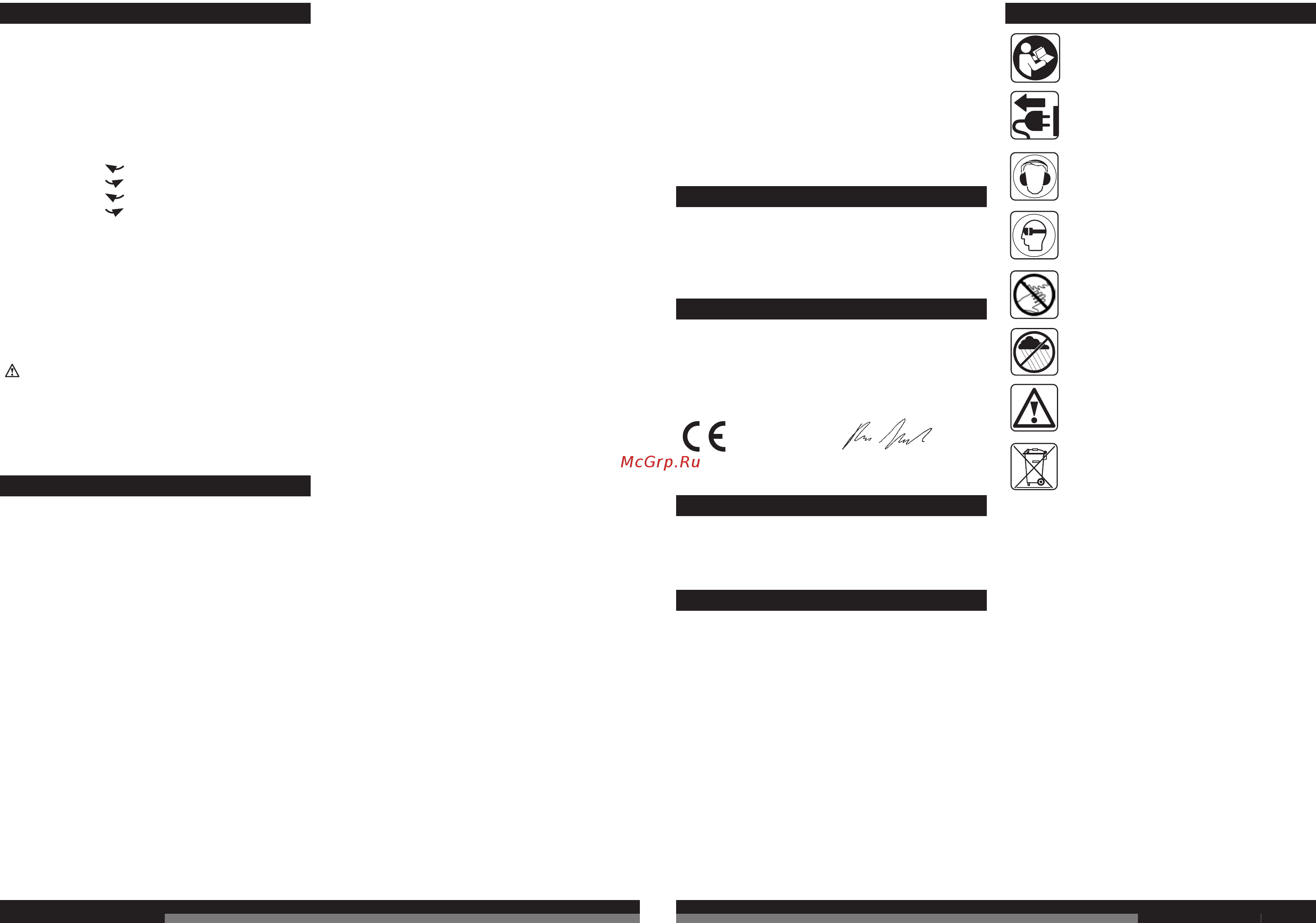

SYMBOLS
Please read the instructions carefully
before starting the machine.
Always disconnect the plug from the
socket before carrying out any work on
the machine.
Wear ear protectors!
Always wear goggles when using the
machine.
Always keep hands away from the path
of the saw blade.
Never expose tool to rain.
Danger
Do not dispose of electric tools together
with household waste material! In
observance of European Directive
2002/96/EC on waste electrical and
electronic equipment and its
implementation in accordance with
national law, electric tools that have
reached the end of their life must be
collected separately and returned to an
environmentally compatible recycling
facility.
ENGLISH
TECHNICAL DATA
Rated input .......................................................................
Amps ................................................................................
No-load speed ..................................................................
Saw blade dia. x hole dia..................................................
Saw blade thickness .........................................................
Cutting width
horizontal / vertical
90° 90° .............................................................
45° 90° .............................................................
90° 45° ......................................................
90° 45° ......................................................
45° 45° ......................................................
45° 45° ......................................................
Max. height at 90° / 90° ....................................................
Max. height at 45° / 90° ....................................................
Weight ..............................................................................
Typical weighted acceleration in the hand-arm area ........
Typical A-weighted sound levels:
Sound pressure level (K = 3 dB(A)) ...............................
Sound power level (K = 3 dB(A)) ...................................
Measured values determined according to EN 61 029
WARNING! Read all safety warnings and all
instructions, including those given in the
accompanying brochure. Failure to follow the
warnings and instructions may result in electric shock,
re and/or serious injury.
Save all warnings and instructions for future
reference.
SAFETY INSTRUCTIONS
Wear ear protectors. Exposure to noise can cause
hearing loss.
Appliances used at many different locations including
open air must be connected via a current surge
preventing switch.
Always wear goggles when using the machine. It is
recommended to wear gloves, sturdy non slipping shoes
and apron.
Always disconnect the plug from the socket before
carrying out any work on the machine.
Only plug-in when machine is switched off.
Keep mains lead clear from working range of the
machine. Always lead the cable away behind you.
Sawdust and splinters must not be removed while the
machine is running.
Never reach into the danger area of the plane when it is
running.
Before use check machine, cable, and plug for any
damages or material fatigue. Repairs should only be
carried out by authorised Service Agents.
Always use the protective shields on the machine.
Do not clamp the protective swing guard.
Do not use saw blades which are damaged or deformed
Replace the table insert when worn
Do not use saw blades not corresponding to the key
data given in these instructions for use.
The protective cover should only open when the
machine is lowered to the workpiece.
Do not use saw blades made of high-speed steel.
Any faults with the machine, including any related to the
safeguard or the saw blades, must be reported to the
persons in charge of safety as soon as the faults are
discovered.
It is necessary to select a saw blade which is suitable
for the material being cut.
Never use the mitre saw to cut materials other than
those specied in the instruction manual.
The handle lock must always be engaged when
transporting the mitre saw.
Only use the saw with guards in good working order and
properly maintained, and in position.
Keep the oor area free of loose material e.g. chips and
cut-offs.
Only use saw blades which have been properly
sharpened. It is essential to adhere to the maximum
speed specied on the saw blade.
Do not use any anges other than those supplied or
indicated in the instruction manual to secure the saw
blade.
Refrain from removing any cut-offs or other parts of the
workpiece from the cutting area whilst the machine is
running and the saw head is not in the rest position.
Ensure that the machine is always stable and secure
(e.g. xed to a bench)
Long workpieces must be adequately supported.
ENGLISH
220-240 V 110 V
.....................1800 W ...................... 1800 W
...........................8 A ........................ 15,5 A
.....................4400
min
-1
................... 4000
min
-1
...............305 x 30 mm .............. 305 x 30 mm
........................2,4 mm ....................... 2,4 mm
.............. 111 / 342 mm ..............111 / 342 mm
.............. 111 / 241 mm ..............111 / 241 mm
................63 / 241 mm ............... 63 / 241 mm
................41 / 241 mm ............... 41 / 241 mm
................63 / 241 mm ............... 63 / 241 mm
................41 / 241 mm ............... 41 / 241 mm
................166 / 53 mm ............... 166 / 53 mm
................166 / 10 mm ............... 166 / 10 mm
.........................31 kg .......................... 31 kg
.......................... 4 m/s
2
........................ 4 m/s
2
.........................95 dB (A) ................... 95 dB (A)
.......................108 dB (A) ................. 108 dB (A)
