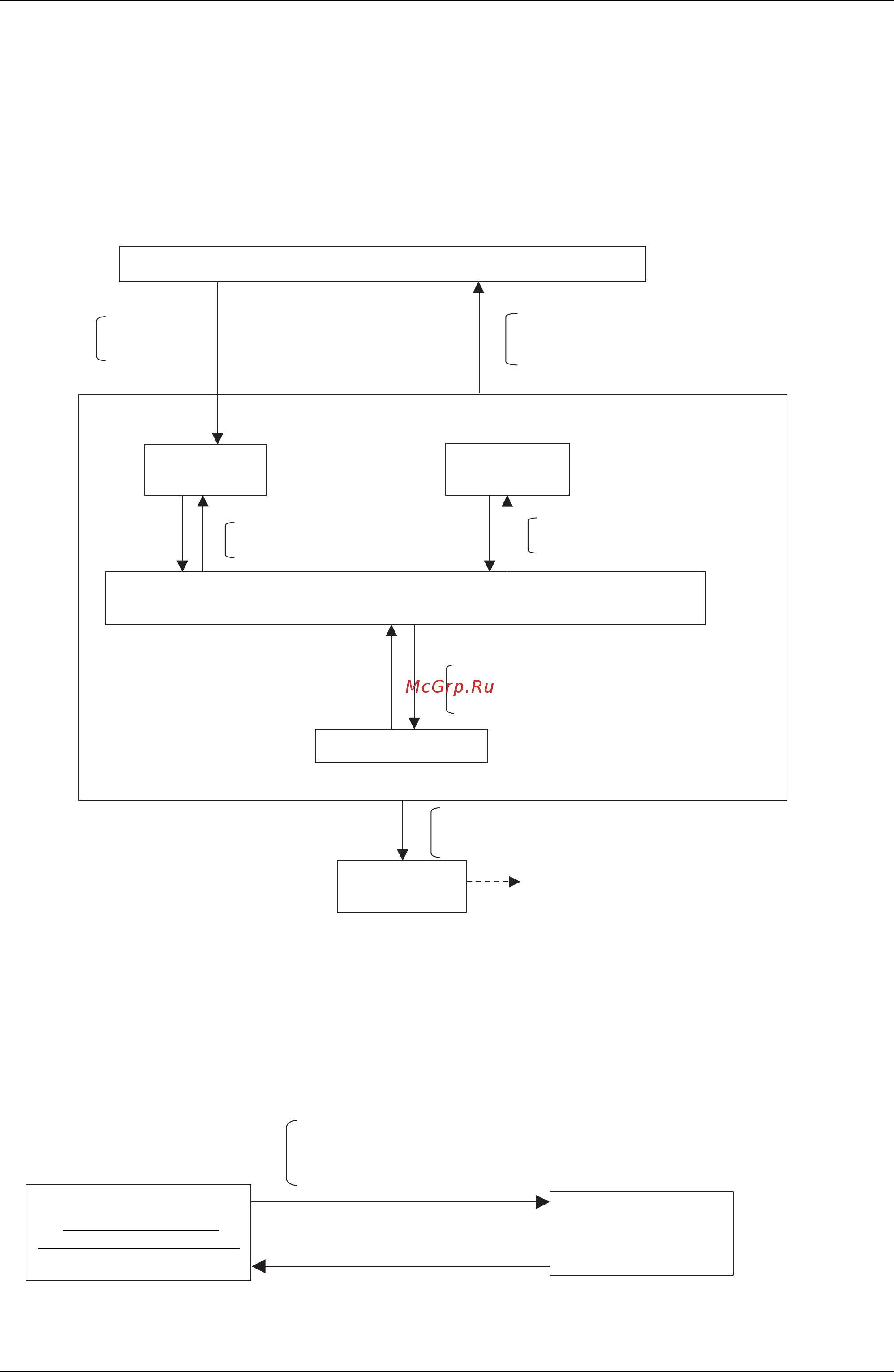

SiBE37-701_B Protection Control
Function 136
4.3 Discharge Pipe Protection Control
This discharge pipe protection control is used to protect the compressor internal temperature
against a malfunction or transient increase of discharge pipe temperature.
[Contents]
★
The following control is performed for each compressor of single unit as well as multi units.
[INV compressor]
[STD compressor]
Normal operation
or
• HTdi>115°C
• Tp>135°C
&
• HTdi<100°C
• Tp<110°C
• INV upper limit step=max (Max. step)
INV Comp.
upper limit step:
1-step down
INV Comp.
upper limit step:
1-step up
After 30 sec.
or
• HTdi>115°C
• Tp>135°C
After 20 sec.
&
• HTdi<110°C
• Tp<125°C
In control of discharge pipe temperature protection
Frequency agreement
or
• HTdi>130°C
• HTdi>120°C continues for 90 seconds
or more.
52Hz+OFF+OFF
or
• HTdi>135°C
• HTdi>120°C continues for 10 minutes or more.
Discharge pipe
temperature
standby
When occurring 3 times within 100 min.,
the malfunction code “F3” is output.
HTdi : Value of INV compressor discharge
pipe temperature (Tdi) compensated
with outdoor air temperature
HTds : Value of STD compressor discharge
pipe temperature (Tds) compensated
with outdoor air temperature
Tp : Value of compressor port temperature
calculated by Tc and Te, and suction
superheated degree.
Discharge pipe temp.
protection control not limited
or
• HTds>120°C continues for 5 min. or more.
• HTds>135°C
• Tp>135°C continues for 10 min. or more.
Applicable STD
compressor stops.
After 10 min.
