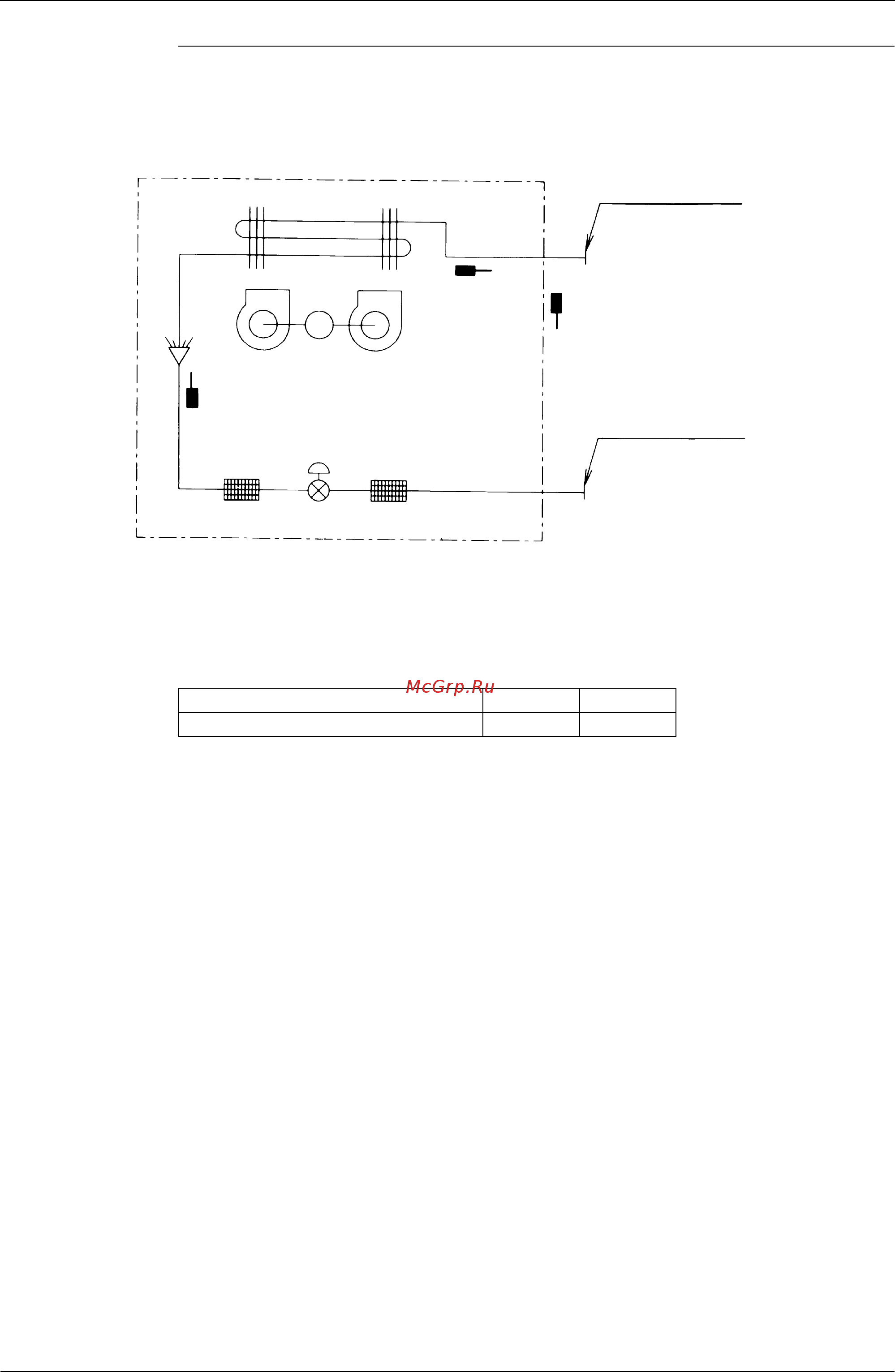

Piping Diagrams SiBE37-701_B
403 Appendix
FXZQ
Refrigerant pipe connection port diameters
Heat exchanger
M
Fan
Th3
Th2
Th1
Gas pipe connection port
(flare connection)
Liquid pipe connection port
(flare connection)
Filter
Filter
Electronic
expansion valve
Th1: Thermistor for suction air temp.
Th2: Thermistor for liquid line temp.
Th3: Thermistor for gas line temp.
4D040157
(mm)
Model Gas Liquid
FXZQ20M / 25M / 32M / 40M / 50M φ12.7 φ6.4
