Troubleshooting (OP: Unified ON/OFF Controller) SiBE37-701_B
395 Troubleshooting

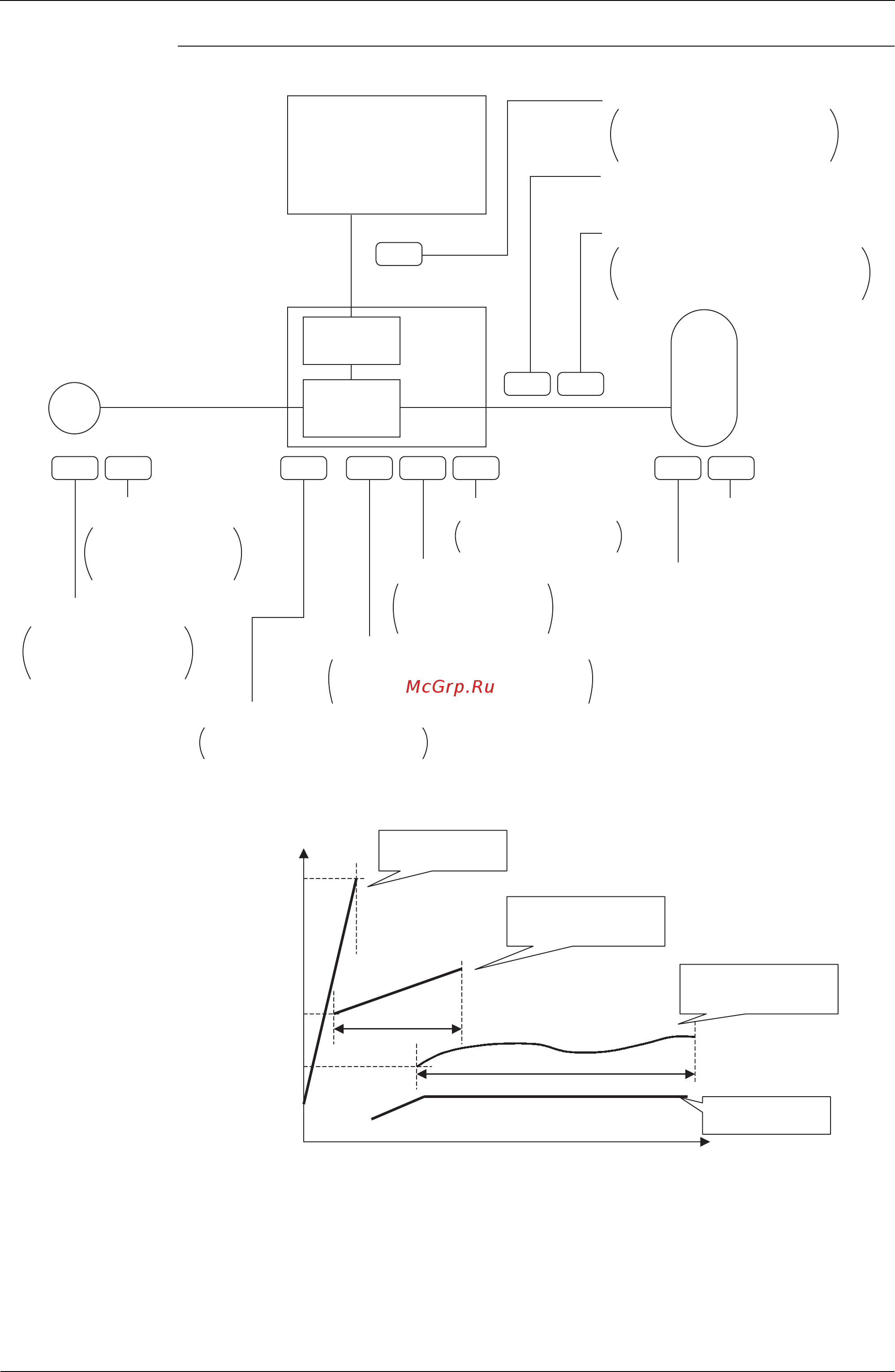

[Check 15] Concept of inverter-related malfunction codes
Main (Control) PCB
Pow e r supp l y
(3 phase, 400VAC)
LC
L5 L8
Inverter
PCB
Weak-current
part
Heavy-current
part (Power
transmission etc.)
L1 P4 L4 PJ
P1U2
Imbalanced power supply voltage
When imbalance in
voltages among three
phases comes to 2%
or more
Power supply voltage error
When the power supply
voltage falls out of the
range of 400VAC±10%
Transmission error
When transmissions between the
main PCB and the inverter PCB
are not normal
Instantaneous overcurrent of inverter compressor
(When inverter output current exceeds 32.3A even
instantaneously)
Overcurrent of inverter compressor
(1)An overcurrent of 19.0A or more continues
for a period of 5 consecutive seconds
(2)An overcurrent of 16.1A or more continues
for a period of 260 consecutive seconds.
Compressor
L9E5
PCB mismatching
When incorrect inverter
PCB is connected
Radiator fin temperature rise
When the radiator fin
temperature reached
93°C or more
Faulty fin thermistor
When the fin thermistor resistor detects
an open circuit (-30°C or less) or a short
circuit (120°C or more)
Faulty startup of inverter compressor
(Compressor stops running
immediately after it starts up.)
Inverter compressor lock
(Compressor does not run at all.)
Faulty inverter
When the heavy current part of
inverter gets faulty (gives no output)
Malfunction codes related
to compressor current
Current
L5
L8
L8
Instantaneous
overcurrent
Compressor overcurrent
(Electronic thermal 2)
Compressor overcurrent
(Electronic thermal 1)
32.3A
19.0A
16.1A
5 consecutive sec.
260 consecutive sec.
Max. control
Time
