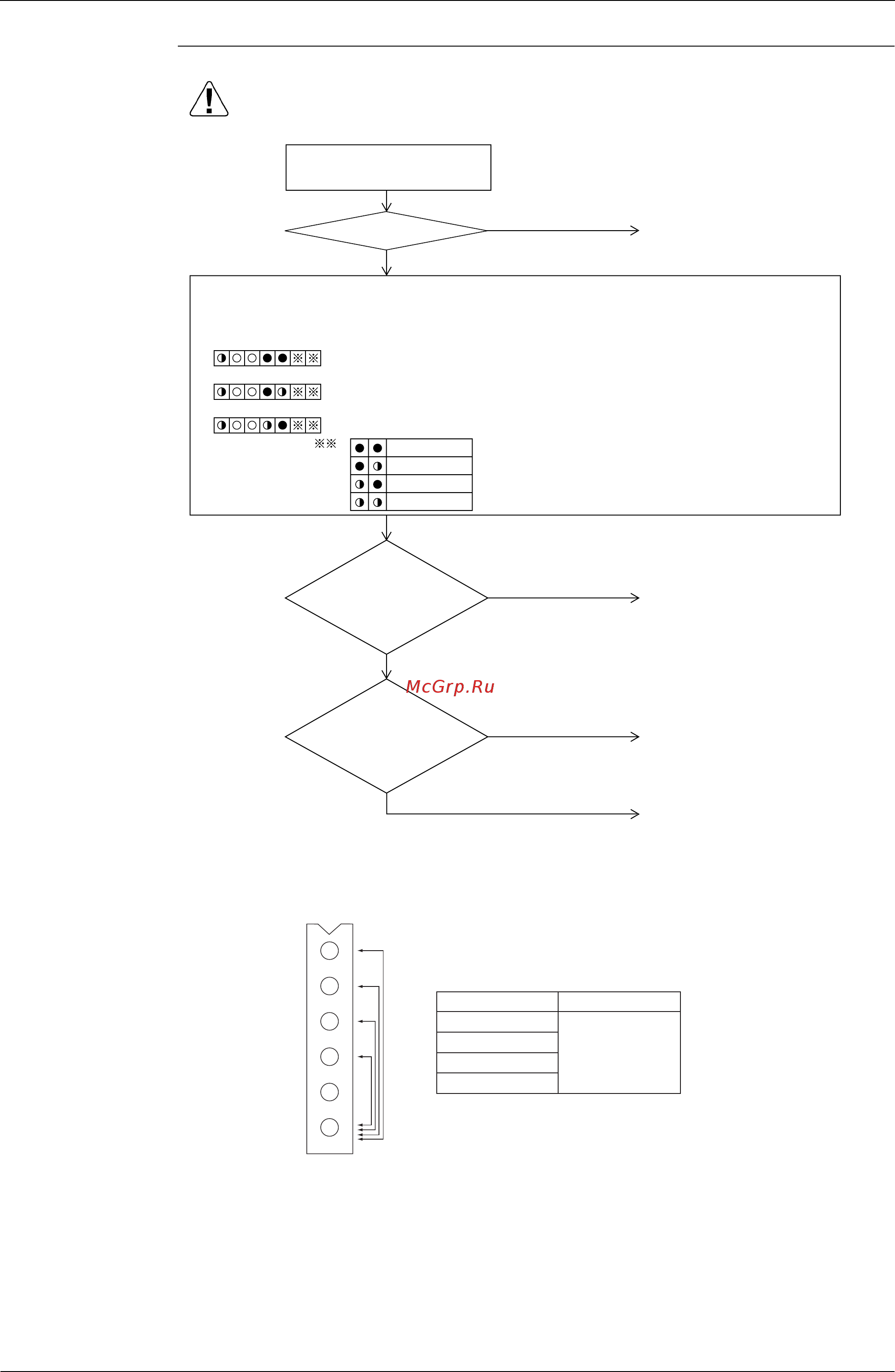

Troubleshooting by Indication on the Remote Controller SiBE37-701_B
297 Troubleshooting
Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Turn power supply off, and
turn power supply on again.
Return to normal?
YES
External factor other than
malfunction (for example, noise
etc.).
Check the electronic expansion valve corresponding to the malfunction code “
E9
” in the monitor
mode.
(Refer to P.255~P.256 for how to check.)
{
When Confirmation of malfunction 4 shows as follows:
→
Electronic expansion valve for main use (Y1E, Y3E for Single, Y1E for Multi)
{
When Confirmation of malfunction 4 shows as follows:
→
Electronic expansion valve for refrigerant charge (Y4E for Single, Y2E for Multi)
{
When Confirmation of malfunction 4 shows as follows:
→
Electronic expansion valve for subcooling (Y2E, Y5E for Single, Y3E for Multi)
{
Explanation of “ ”
Master unit
Slave unit 1
Slave unit 2
System
The connector of
outdoor unit PCB
(A1P) for electronic
expansion valve is
connected.
The coil resistance of
electronic expansion
valve is normal.
(Refer to
∗
1)
NO
Ensure correct connection.
NO
NO
YES
YES
Replace the connecting cable.
Replace the outdoor unit PCB
(A1P).
(V3067)
∗
Make measurement of resistance between the connector pins, and then make sure the resistance
falls in the range of 40 to 50
Ω
.
(Orange) 1
(Red) 2
(Yellow) 3
(Black) 4
5
COM[+] (Gray) 6
Measuring points
1 - 6
2 - 6
3 - 6
4 - 6
Judgement criteria
40~50
Ω
(V3067)
