SiBE37-701_B Troubleshooting by Indication on the Remote Controller
Troubleshooting 262

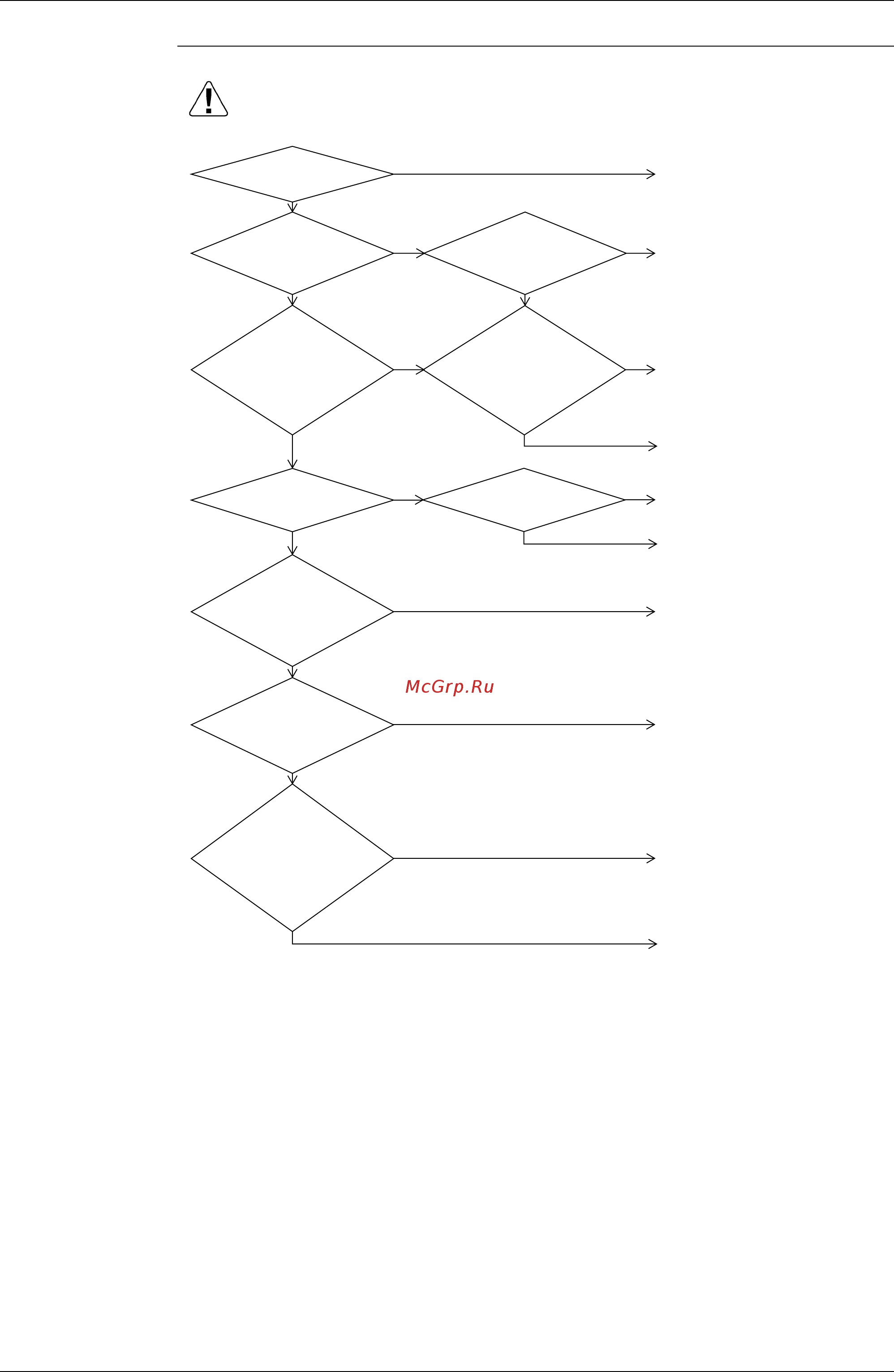

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Provide 220~240V power
supply.
Connect either a short circuit
connector or float switch and
turn on again.
NO
NO
YES
YES
Is power supply
220~240V provided?
The float switch is
connected to X8A or
X15A of the indoor
unit PCB.
A short circuit
connector is
connected to X8A or
X15A.
NO
YES
NO
The float switch
contact is forming a
short circuit
(continuity check with
X8A or X15A
disconnected)
Becomes normal
when X8A or
X15A of the indoor
unit PCB is short
circuited
YES
YES
NO
NO
NO
YES
YES
NO
YES
YES
NO
YES
NO
Water builds up
in the drain pan.
The float switch
functions normally.
The drain pump is
connected to X25A or
terminals Y1 and Y2 of
the indoor unit PCB.
The drain pump works
when the power supply
is reset for the indoor
unit.
The voltage of
terminals Y1 and Y2
or X25A is 220~240V
(within 5 minutes of
resetting the power
supply).
Defect of indoor unit PCB.
Loose connection of
connector.
Replace the float switch.
Modify the float switch's
connection and turn on again.
Connect the drain pump and
turn on again.
Check the drain piping for
clogging or upward slope, etc.
Replace the indoor unit PCB.
Replace the drain pump or
check for dirt, etc.
