Troubleshooting by Indication on the Remote Controller SiBE37-701_B
285 Troubleshooting
3.16
“
E1
”
Outdoor Unit: PCB Defect
Remote
Controller
Display
E1
Applicable
Models
REYQ8P~48P
Method of
Malfunction
Detection
Abnormality is detected under the communication conditions in the hardware section between
the indoor unit and outdoor unit.
Malfunction
Decision
Conditions
When the communication conditions in the hardware section between the indoor unit and the
outdoor unit are not normal.
Supposed
Causes
Defect of outdoor unit PCB (A1P)
Defective connection of inside/ outside relay wires

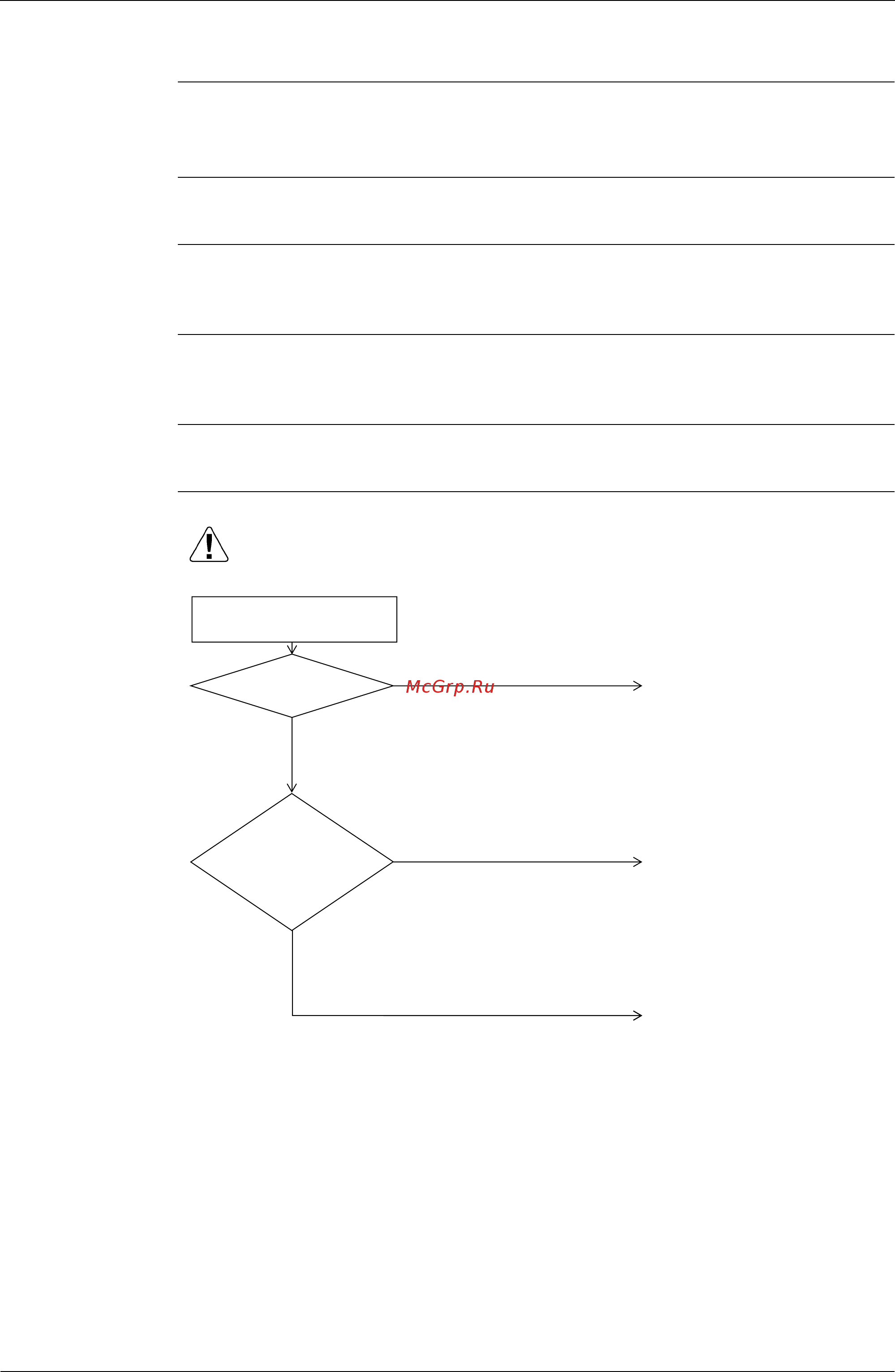

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
External factor other than
malfunction (for example,
noise etc.).
YES
YES
NO
Connect the inside/ outside
relay wires correctly.
Replace the outdoor main
PCB (A1P).
Turn off the power once and
turn on again.
Return to normal?
Check if inside /
outside relay wires of
outdoor main PCB is
disconnected.
