Piping Diagrams SiBE37-701_B
397 Appendix
1. Piping Diagrams
1.1 Outdoor Unit

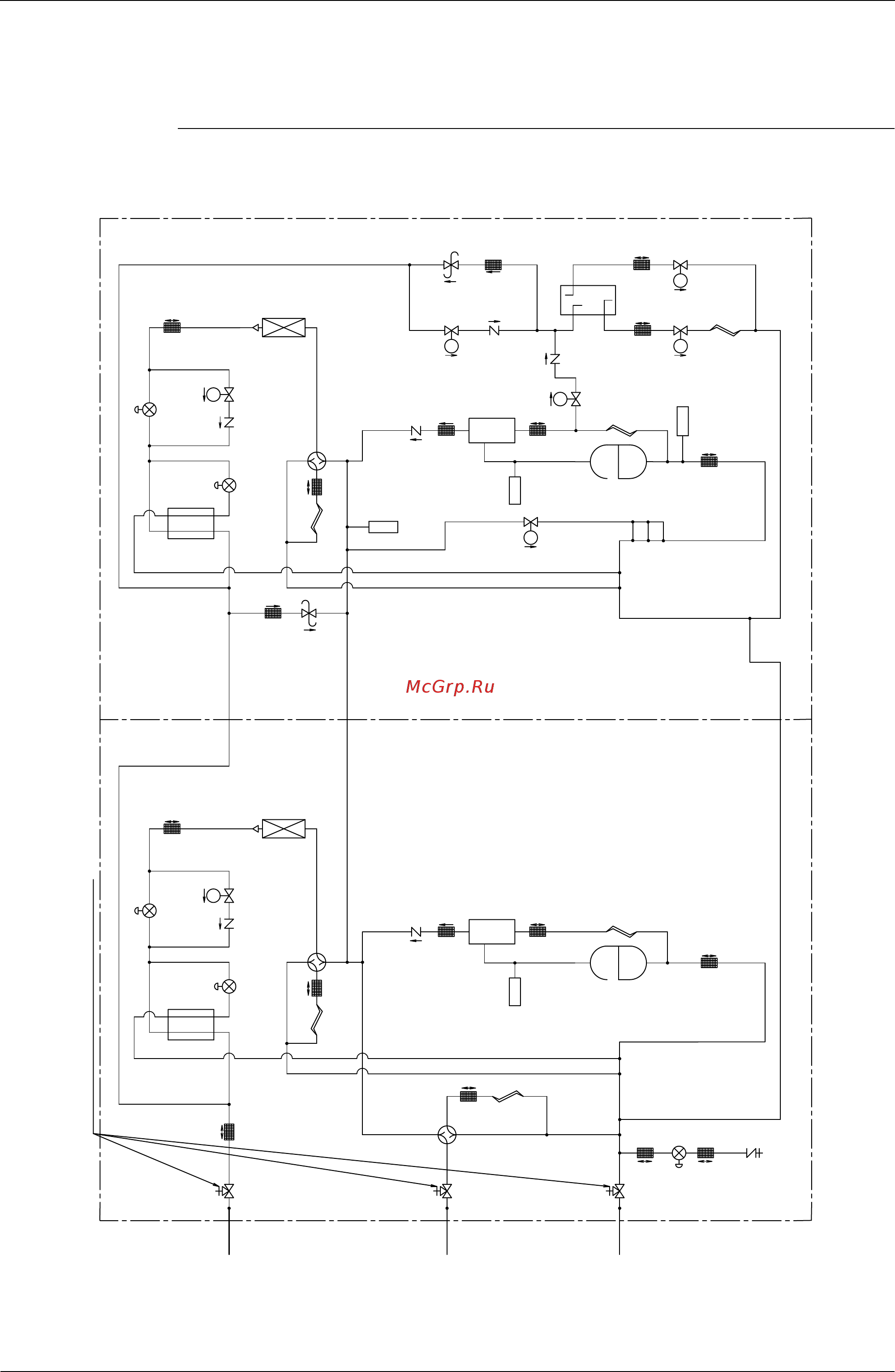

REYQ8P / 10P / 12P
LIQUID PIPE
HIGH AND LOW
PRESSURE GAS
PIPE
SUCTION GAS
PIPE
STOP VALVE (WITH SERVICE PORT
φ
7.9mm FLARE CONNECTION)
LEFT
FILTER
ELECTRONIC
EXPANSION
VALVE
ELECTRONIC
EXPANSION
VALVE
FILTER
CHECK VALVE
SOLENOID
VALVE
FOUR WAY VALVE
HEAT
EXCHANGER
CAPILLARY
TUBE
FILTER
FOUR WAY
VALVE
FILTER
CAPILLARY
TUBE
FILTER
CHECK VALVE
HPS
OIL
SEPARATOR
FILTER
HIGH PRESSURE
SWITCH
COMPRESSOR
STD
CAPILLARY
TUBE
FILTER
FILTER
ELECTRONIC
EXPANSION
VALVE
FILTER
SERVICE
PORT
RIGHT
STRAINER
PRESSURE
REGULATING VALVE
(CHECK VALVE TYPE)
ELECTRONIC
EXPANSION
VALVE
ELECTRONIC
EXPANSION
VALVE
FILTER
SV
CHECK VALVE
SOLENOID
VALVE
FOUR WAY VALVE
HEAT
EXCHANGER
CAPILLARY
TUBE
FILTER
S1NPH
HIGH PRESSURE
SENSOR
CHECK VALVE
FILTER
OIL
SEPARATOR
HPS
HIGH PRESSURE
SWITCH
SOLENOID
VALVE
COMPRESSOR
INV
FILTER
CHECK VALVE
SV
SV
SOLENOID
VALVE
CAPILLARY
TUBE
S2NPL
LOW PRESSURE
SENSOR
FILTER
SOLENOID
VALVE
SV
SOLENOID
VALVE
CHECK VALVE
PRESSURE REGULATING
VALVE (ABSOLUTE
PRESSURE TYPE)
STRAINER
REFRIGERANT
REGULATOR
FILTER
FILTER
SOLENOID
VALVE
CAPILLARY
TUBE
SV
3D058154B
SV
SV
