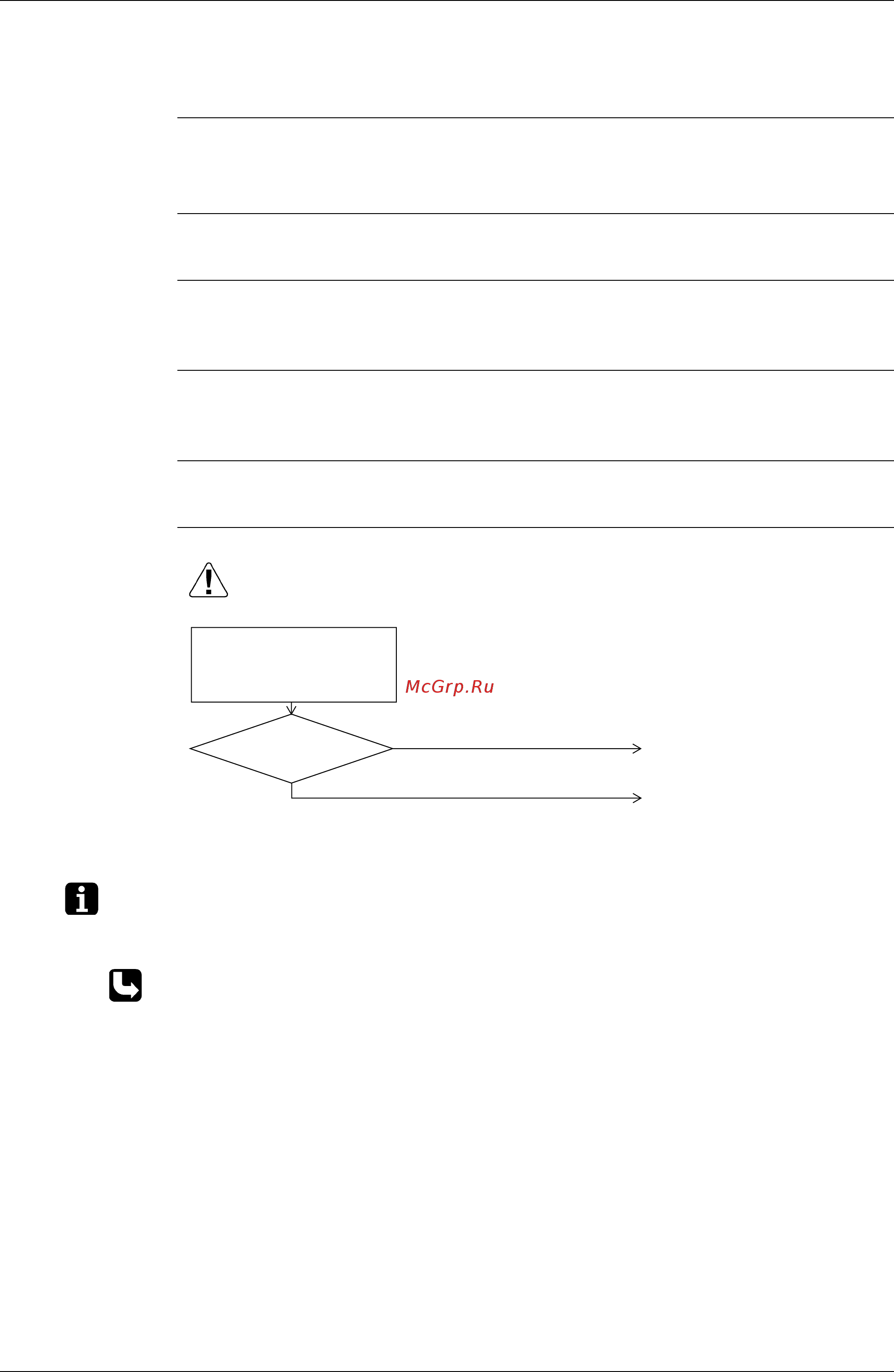

SiBE37-701_B Troubleshooting by Indication on the Remote Controller
Troubleshooting 284
3.15
“
CJ
”
Indoor Unit: Malfunction of Room Temperature
Thermistor in Remote Controller
Remote
Controller
Display
CJ
Applicable
Models
All indoor unit models
Method of
Malfunction
Detection
Malfunction detection is carried out by temperature detected by room temperature thermistor in
remote controller. (Note:)
Malfunction
Decision
Conditions
When the room temperature thermistor in remote controller becomes disconnected or shorted
while the unit is running.
Supposed
Causes
Defect of remote controller thermistor
Defect of remote controller PCB
Troubleshooting
Note:
∗
1: How to delete “the record of malfunction codes”.
Press the “ON/OFF” button for 4 seconds and more while the malfunction code is displayed
in the inspection mode.
∗
Refer to “Thermistor Resistance / Temperature Characteristics” table on P450.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
NO
Replace the remote
controller.
YES
External factor other than
equipment malfunction.
(for example, noise etc.)
Clear the malfunction code
history. (While in inspection
mode, press and hold the “ON/
OFF” button for a period of 4
seconds or more.)
Is "
CJ
" displayed
on the remote
controller?
