SiBE37-701_B Outline of Control (Indoor Unit)
Function 150
6.5 Freeze Prevention
Freeze
Prevention by Off
Cycle (Indoor
Unit)
When the temperature detected by liquid pipe temperature thermistor (R2T) of the indoor unit
heat exchanger drops too low, the unit enters freeze prevention operation in accordance with
the following conditions, and is also set in accordance with the conditions given below.
When freeze prevention is activated, the electronic expansion valve is closed, the drain pump
turns ON and the fan tap is fixed to L airflow. When the following conditions for stopping are
satisfied, it returns.
Conditions for starting freeze prevention: Temperature is -1°C or less for total of 40 min., or
temperature is -5°C or less for total of 10 min.
Conditions for stopping freeze prevention: Temperature is +7°C or more for 10 min.
continuously

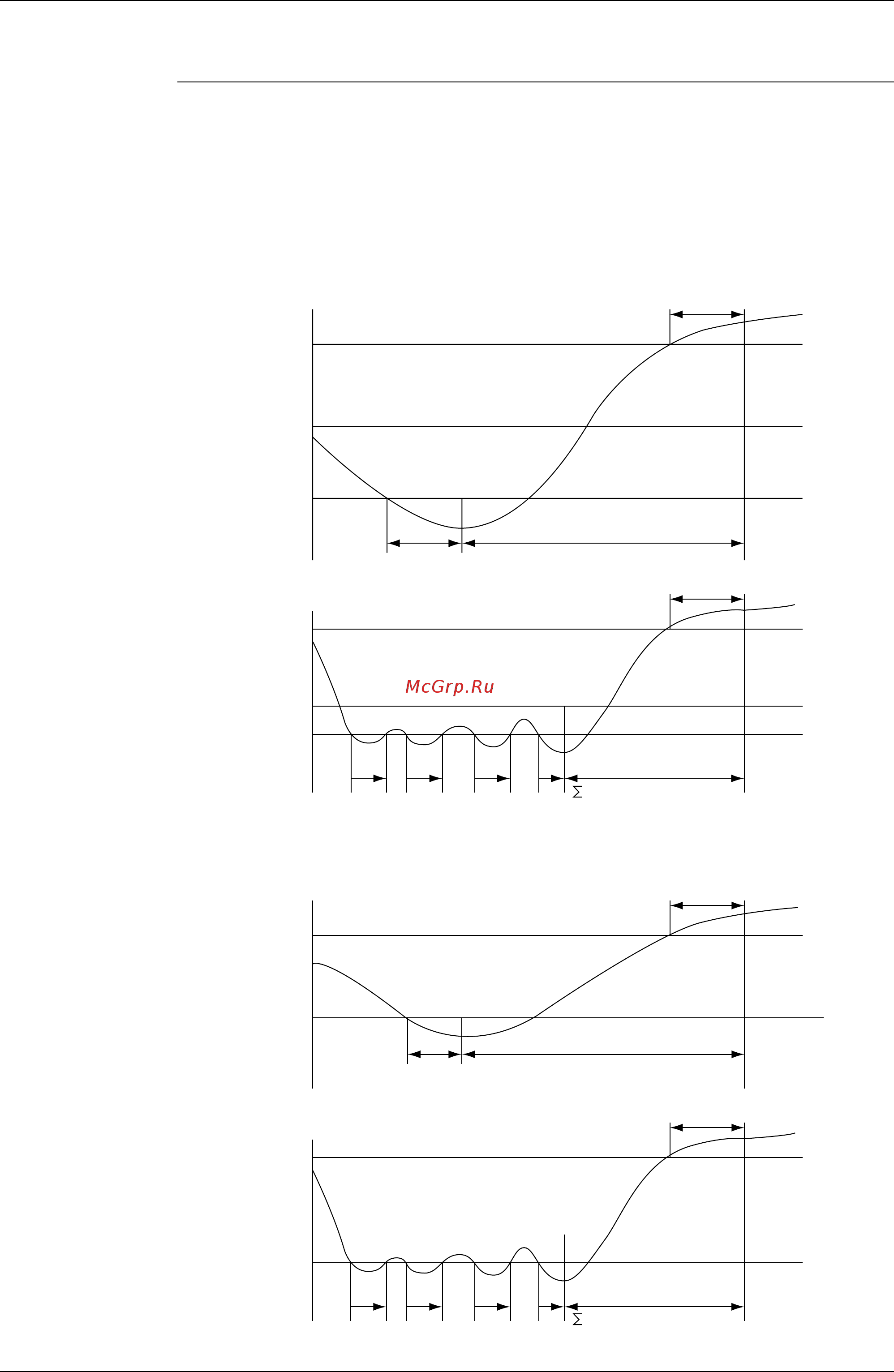

[Conditions for starting when airflow direction is two-way or three-way]
Conditions for starting: Temperature is 1ºC or less for a total of 15 minutes or 0ºC or less for 1
minute continuously.
+7ºC
0ºC
–5ºC
OR
+7ºC
–1ºC
t1 t2 t3
t >40 min.
0ºC
Freeze prevention operation
Forced OFF by thermostat
10 min.
Freeze prevention operation
Forced OFF by thermostat
10 min.
10 min.
t4
+7ºC
0ºC
OR
+7ºC
+1ºC
t1 t2 t3 t >15 min.
Freeze prevention operation
Forced OFF by thermostat
10 min.
Freeze prevention operation
Forced OFF by thermostat
1 min.
10 min.
t4
