Troubleshooting by Indication on the Remote Controller SiBE37-701_B
313 Troubleshooting
3.35
“
J9
”
Outdoor Unit: Malfunction of Subcooling Heat
Exchanger Gas Pipe Thermistor (R5T or R13T)
Remote
Controller
Display
J9
Applicable
Models
REYQ8P~48P
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by subcooling heat exchanger
gas pipe thermistor.
Malfunction
Decision
Conditions
When the subcooling heat exchanger gas pipe thermistor is short circuited or open circuited.
Supposed
Causes
Faulty subcooling heat exchanger gas pipe thermistor (R5T or R13T)
Faulty outdoor unit PCB

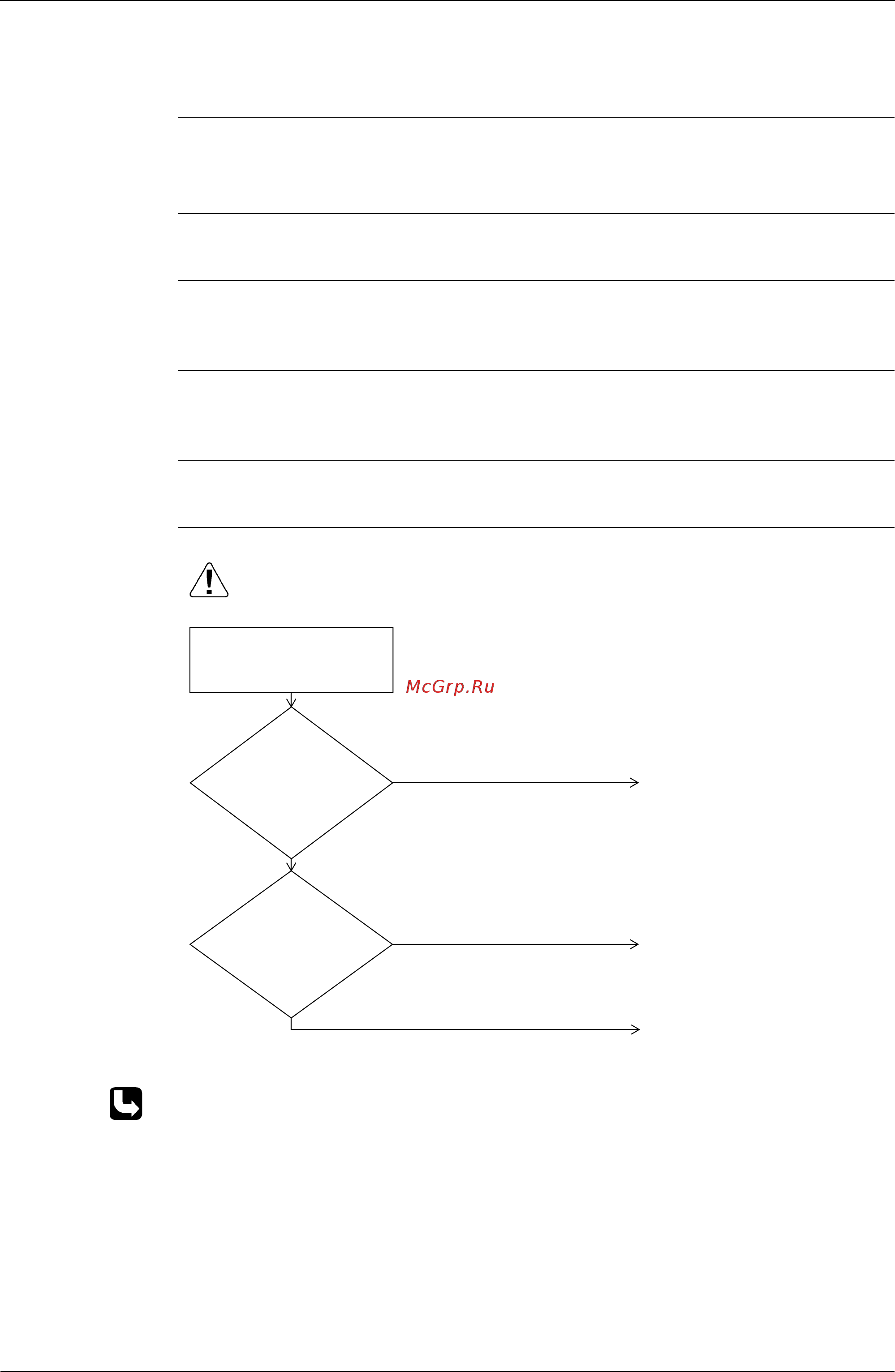

Troubleshooting
∗
Refer to “Thermistor Resistance / Temperature Characteristics” table on P450.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the connector for
subcooling heat
exchanger gas pipe
thermistor connected to
X30A on outdoor unit
PCB (A1P)?
NO
Connect the connector and
operate the unit again.
Confirm which thermistor is
abnormal using outdoor unit
"monitor mode".
(Refer to P.255~P.256)
Is the resistance
measured after
removing the thermistor
(R5T or R13T) from
outdoor unit PCB
normal? (1.8k
Ω
to
800k
Ω
)
YES
NO
YES
Replace the thermistor (R5T or
R13T).
Replace the outdoor unit PCB
(A1P).
