Daikin REYQ16PY1B [225/477] Mode changing procedure 2
![Daikin REYQ16PY1B [225/477] Mode changing procedure 2](/views2/1713634/page225/bge1.png)
SiBE37-701_B Field Setting
Test Operation 214
Mode changing procedure 2

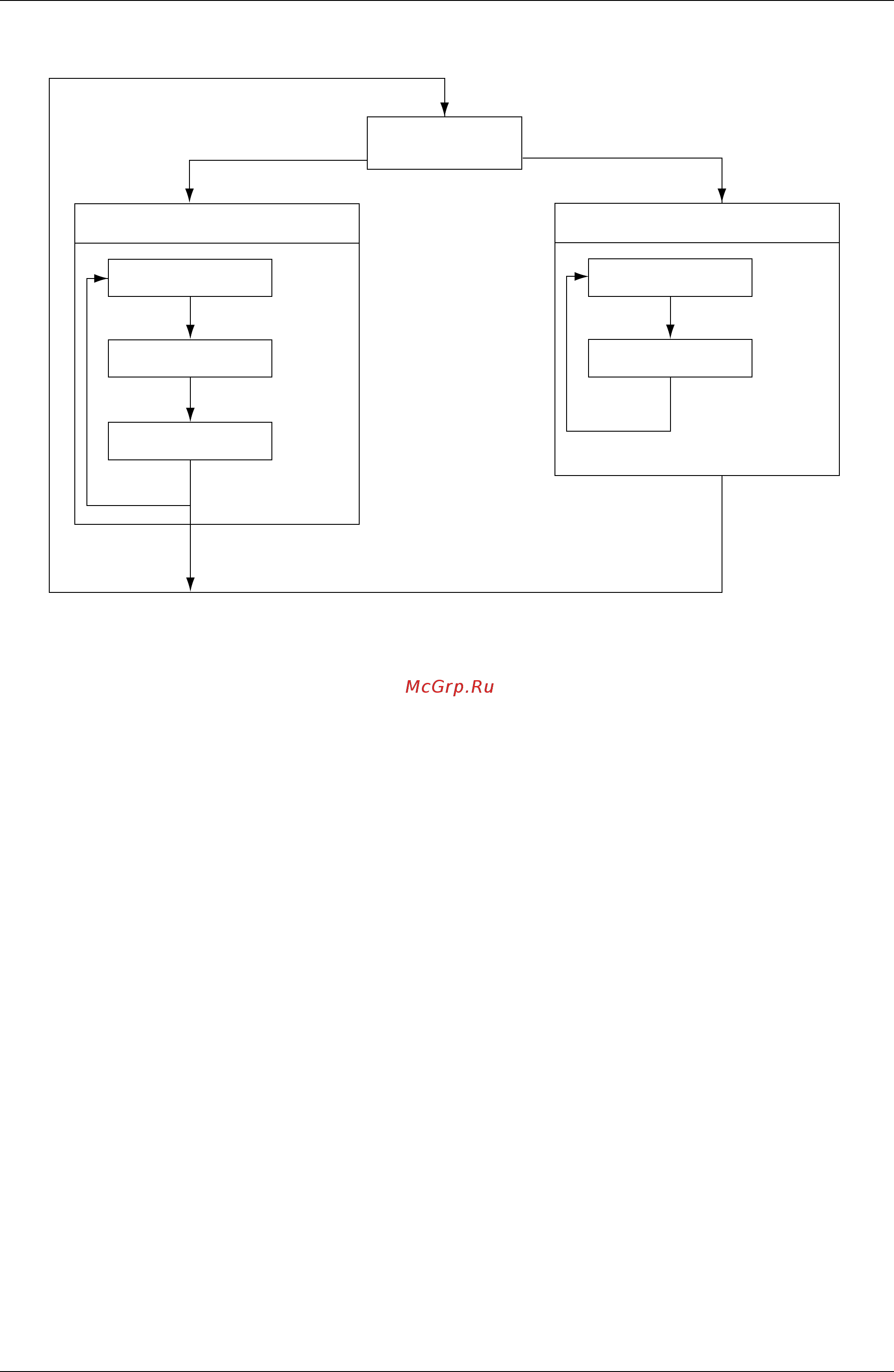

(Set): Select mode with BS2 (SET button) in each selection step.
Press BS1 (MODE button) for more than 5 sec.
Press BS1 (MODE button) one time.
Setting mode 1
(Initial condition)
Setting mode 2
Setting item selection
(Set)
Setting condition
selection (Set)
Setting condition
(Contents) display
Press BS3
(RETURN button) one time.
Press BS3
(RETURN button) one time.
Press BS3
(RETURN button) one time.
Press BS1
(MODE button) one time.
Monitor mode
Check item selection
(Set)
Press BS3
(RETURN button) one time.
Contents display
Press BS3
(RETURN button) one time.
Press BS1
(MODE button)
one time.
(V2762)
