Outline of Control (Indoor Unit) SiBE37-701_B
141 Function
6. Outline of Control (Indoor Unit)

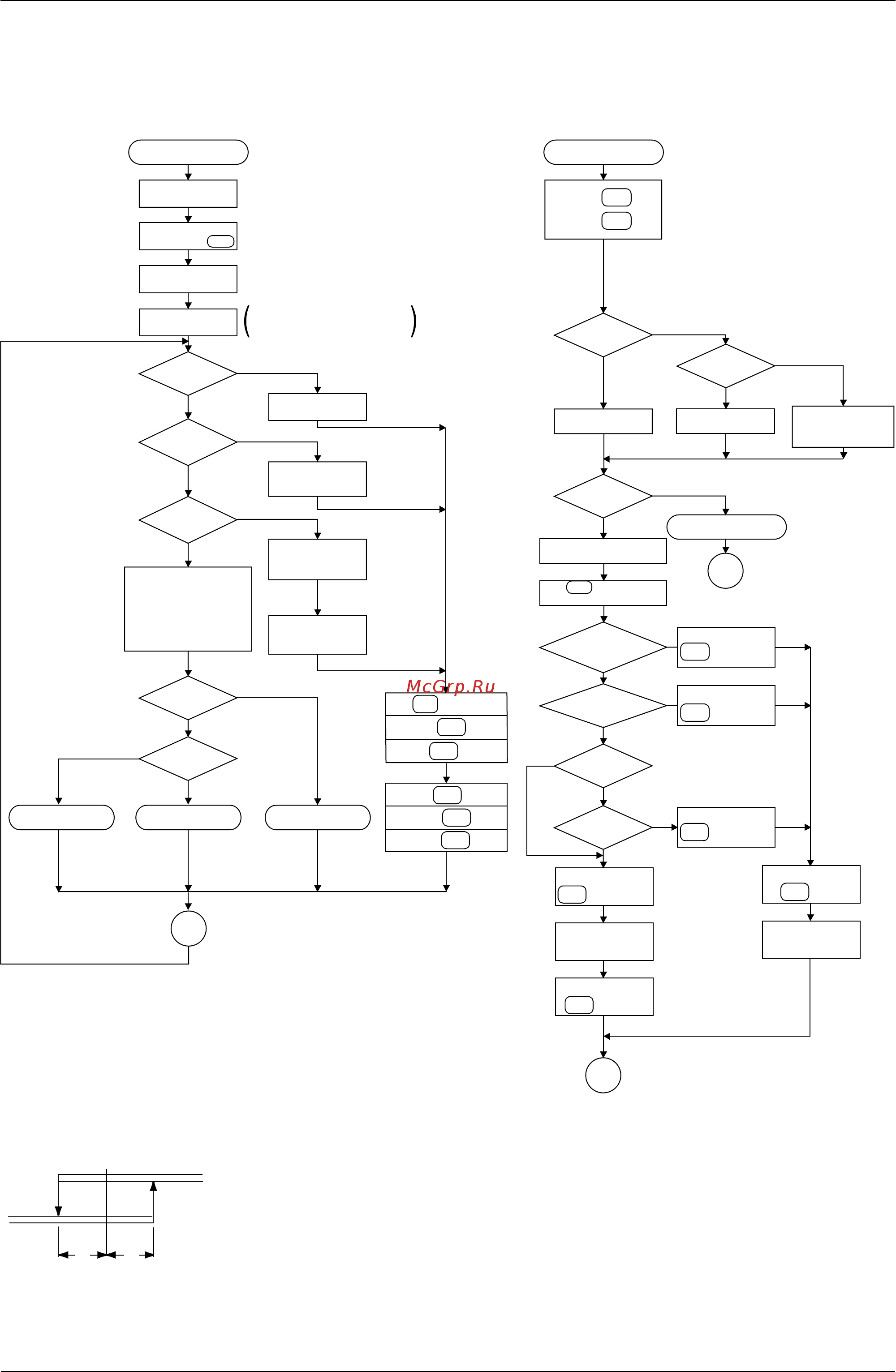

6.1 Operation Flow Chart
Start
Turn ON
power supply
Initialize electronic
expansion valve 20E
Detect louver
lock
LED in remote
controller turns ON
The previous settings of air
flow rate, wind direction, and
temperature are displayed.
Cyclic operation with
RUN/STOP pushbutton
Run or Stop?
Stop
Run
RUN indicating
lamp: OFF
Yes
Is the safety
device
activated?
No
RUN indicating lamp: Blink
Malfunction code: Displayed
*1
Is the RUN
indicating lamp
blinking?
Press the RESET
RUN/STOP
pushbutton.
Yes
No
RUN indicating lamp: ON
Airflow rate display: Displayed
Wind direction display: Displayed
Temp. setting display: Displayed
RUN indicating lamp: OFF
Malfunction mode display: Reset
Fan
Temp. control
Fan or Temp.
control?
Cooling or
Heating?
Heating
Cooling
Cooling Operation Heating Operation Fan Operation
A
*2
Fan
MF
: Stop
Electronic
expansion valve
20E
:Closed
Louver
MA : Stop
*3
(Option)
Drain
pump kit
MP : OFF
*1. If any malfunction occurs, the relevant malfunction code will be displayed according to the
malfunction code display of the remote controller.
*2. When the aux. electric heater turns ON, the fan will stop after it conducts residual operation
for 1 min.
*3. When the drain pump kit turns ON, the drain pump kit will stop after it conducts residual
operation for a period of 5 min.
*4. If the evaporator inlet temperature is kept at not more than -5°C for a period of cumulative 10
min. or not more than -1°C for a cumulative period of 40 min., frost prevention operation will
be conducted. If the evaporator inlet temperature is kept at not less than 7°C for a
consecutive period of 10 min., the frost prevention operation will be reset.
*5. Thermostat status
Set temperature
ON
OFF
Suction air temperature
a=b=1
(a=b=0.5 is only available for the FXCQ, FXFQ, FXHQ, and FXKQ series.)
b
a
*6. The FXCQ, FXFQ, FXKQ, and FXSQ series have the drain pump as standard equipment.
Cooling Operation
Aux. electric
heater
52H
: OFF
Humidifier
Mu : OFF
(Option)
Aux. electric
heater
52H
: OFF
Humidifier
Mu
: OFF
Swing flap
No
Yes
Yes
Dew prevention
condition?
No
Swing flap
Set wind direction
Dew prevention position
Cassette type: P1
Ceiling suspended type: P0
Micro-computer dry
ON/OFF
ON
OFF
Microcomputer dry operation
A
Micro-computer dry
display: Reset
Fan:
MF
Operating with set airflow rate
(Option)
Yes
Is Restart prevention
operation in progress?
(5 min.)
Drain pump kit
MP
: OFF after 5-min.
residual operation
No
*4
Is freeze prevention
operation in progress?
(Option)
Yes
Drain pump kit
MP :ON
No
Is test run in
progress?
No
*5
Thermostat
status
OFF
ON
(Option)
Drain pump kit
MP
: OFF after 5-min.
residual operation
Electronic expansion valve
20E
: Capacity control
Thermostat-ON-
operation signal to
outdoor unit: Output
Electronic expansion valve
20E : Closed
Electronic expansion valve
Thermostat-ON-
operation signal to
outdoor unit: Output
(Option)
Drain pump kit
MP
: ON
*6
A
