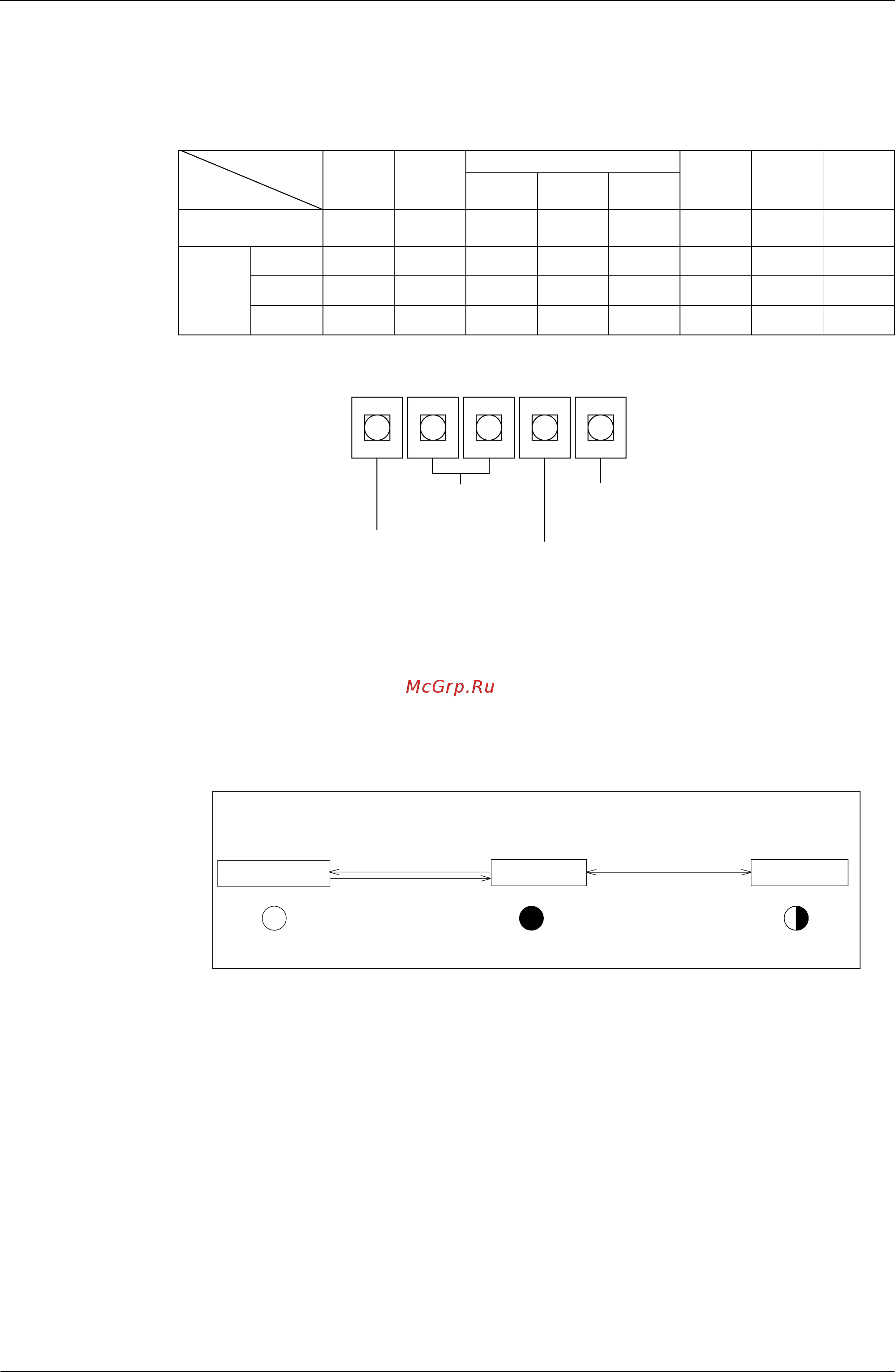

Field Setting SiBE37-701_B
213 Test Operation
3.2.3 Setting by Push Button Switches
The following settings are made by push button switches on PCB.
In case of multi-outdoor unit system, various items should be set with the master unit.
(Setting with the slave unit is disabled.)
The master unit and slave unit can be discriminated with the LED display as shown below.
(Factory setting)
There are the following three setting modes.
c
Setting mode 1 (H1P off)
Initial status (when normal) : Used to select the cool/heat setting. Also indicates during
“abnormal”, “low noise control” and “demand control”.
d
Setting mode 2 (H1P on)
Used to modify the operating status and to set program addresses, etc. Usually used in
servicing the system.
e
Monitor mode (H1P blinks)
Used to check the program made in Setting mode 2.
Mode changing procedure 1
LED display
MODE
H1P
TEST
H2P
COOL/HEAT select
Low
noise
H6P
Demand
H7P
Multi;
H8P
IND
H3P
MASTER
H4P
SLAVE
H5P
Single-outdoor-unit
system
hhkhhhhh
Outdoor-
multi
system
Master
hhkhhhhk
Slave 1
hhhhhhhl
Slave 2
hhhhhhhh
Pushbutton switches
BS1
MODE
BS2
SET
BS3
RETURN
BS4
TEST
BS5
REWIRING
Used to change
the setting mode
Used for
onsite setting
Used for check operation and
test operation
Used to set up address
when wiring is changed
or an indoor unit is added
Using the MODE button, the modes can be changed as follows.
Setting mode 2
MODE
H1P
On
Push and hold the BS1
(MODE button) for 5 seconds.
Push the BS1(MODE button) one time.
(Normal)
MODE
H1P
Off
Setting mode 1
Push the BS1 (MODE button)
one time.
MODE
H1P
Monitor mode
Blinking
(V2761)
