Daikin REYQ16PY1B [354/477] Troubleshooting
![Daikin REYQ16PY1B [354/477] Troubleshooting](/views2/1713634/page354/bg162.png)
Troubleshooting by Indication on the Remote Controller SiBE37-701_B
343 Troubleshooting

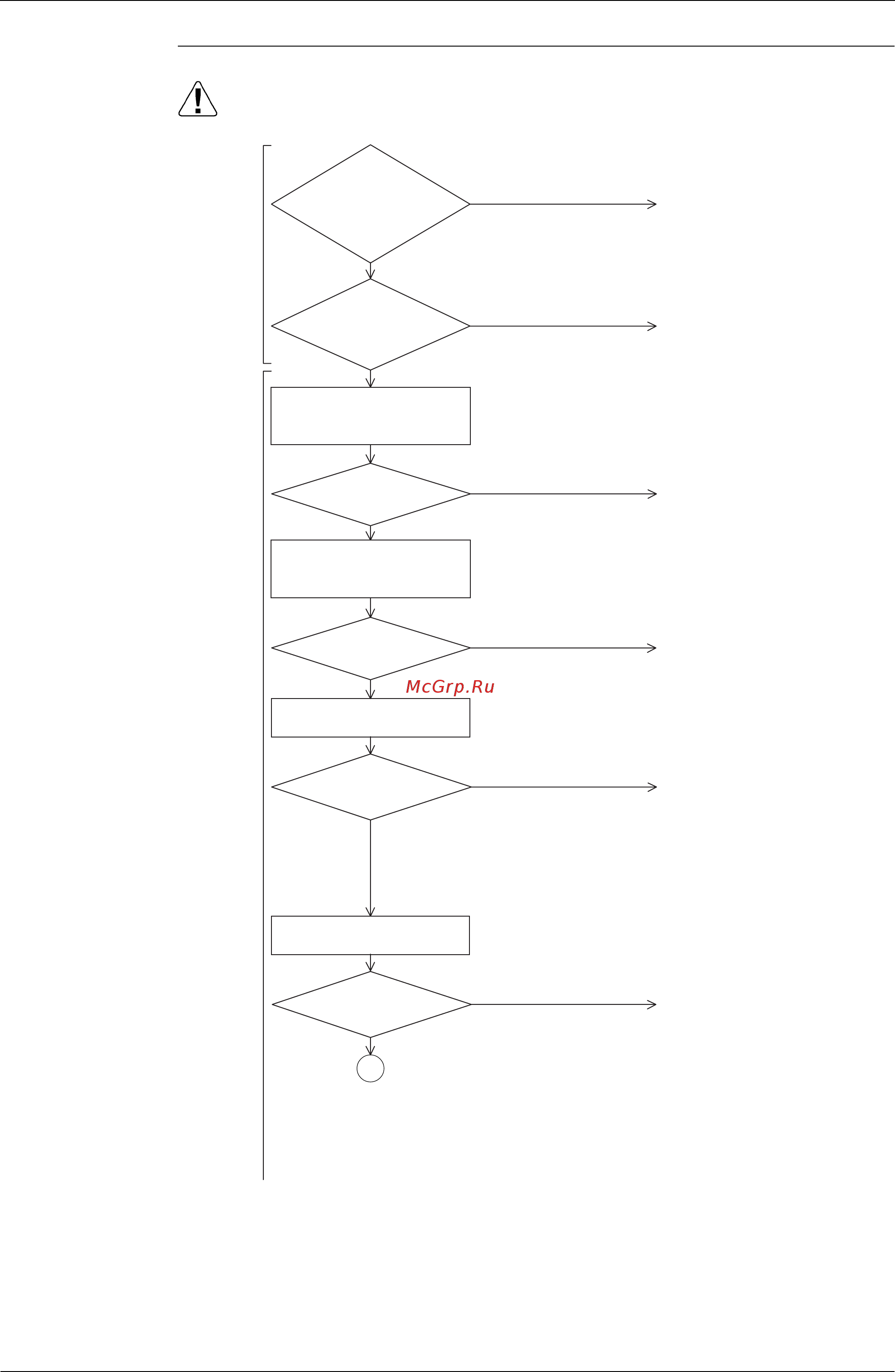

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Onsite causes.
Make proper wire connections
without open phase, erroneous
connections, or erroneous order of
phases.
Check for power
supply voltage.
Voltage between
phases: 380 to
415V.
YES
Unbalanced power supply?
(Not more than 2%: Phase
voltage of not more than
approx. 5V)
Disconnect the cable from the
compressor, and then check
the compressor for the
insulation resistance.
Power ON
Power OFF
The insulation resistance is
low (i.e., not more than
100k
Ω
.)
Disconnect the cable from the
fan, and then check the fan
motor for the insulation
resistance.
The insulation resistance
is low (i.e., not more than
1M
Ω
.)
Check the inverter power
transistor.
Has the power transistor
got faulty?
Check the fan driver power
transistor.
Has the power transistor
got faulty?
A
NO
NO
YES
YES
YES
NO
NO
NO
YES
NO
YES
NO
YES
NO
Onsite causes
Correct the unbalanced loads to
eliminate the unbalanced state.
Unbalanced voltage will cause
extremely unbalanced current, thus
impairing the service life of or
resulting in the malfunction of the
equipment.
Replace the compressor.
Replace the fan motor.
Replace the fan driver.
Replace the inverter PCB.
✩
Observe the conditions of the
PCB.
In the case of a serious failure, a
compressor failure may cause
the failure of the PCB. Even if
the PCB is replaced, it may
cause failure again.
To avoid that, recheck the
compressor for ground and for
any broken wires. Furthermore,
even after the completion of
PCB replacement, check the
compressor.
Replace the fan driver PCB.
✩
Observe the conditions of the
PCB.
