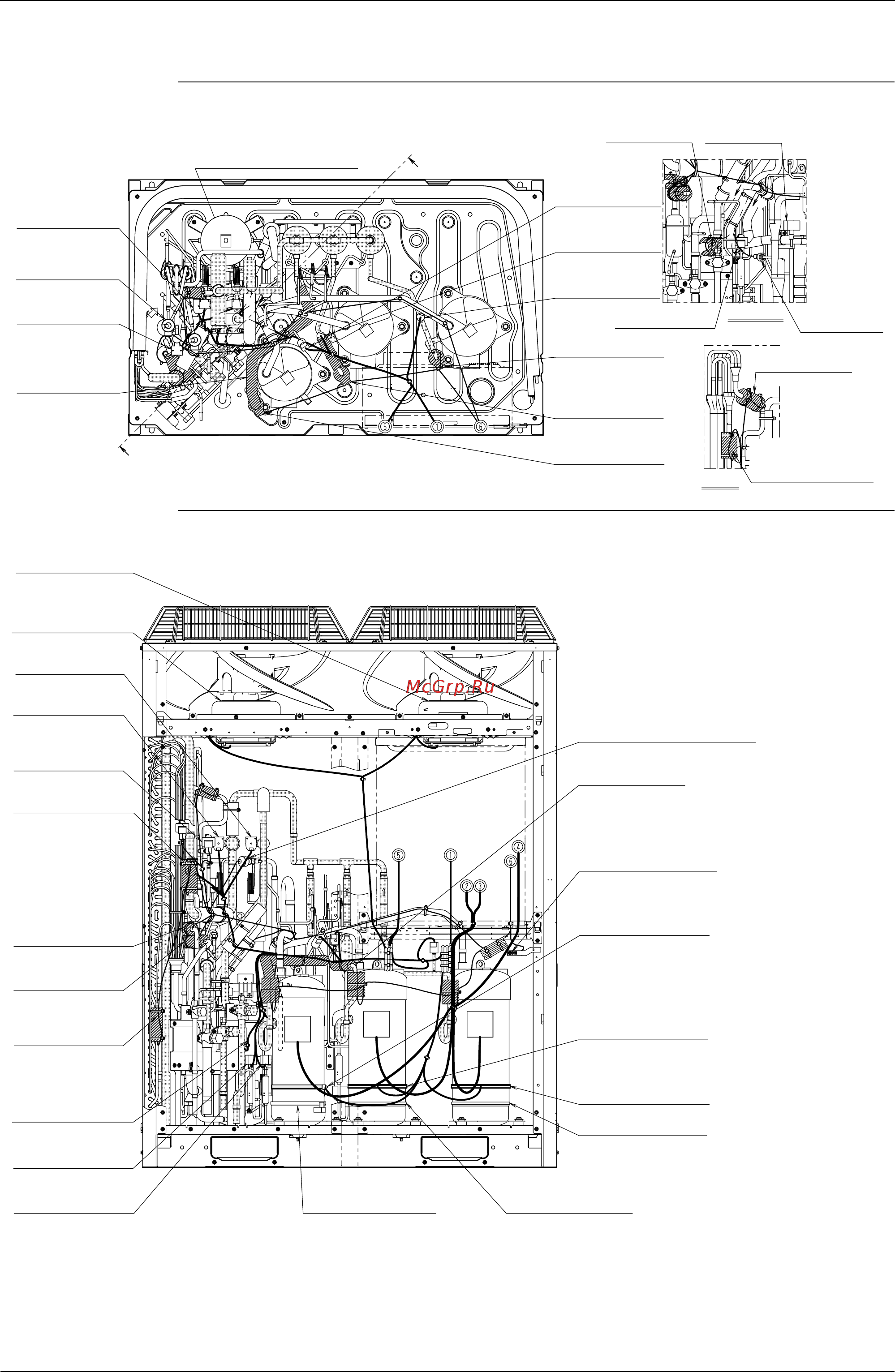

Functional Parts Layout SiBE37-701_B
75 Refrigerant Circuit
2.5 REMQ14P, 16P
Plan
Front View
Note: For reference number, refer to page 67.
(11)
SOLENOID VALVE (RMTL)
(7)
COIL FOR EXPANSION VALVE
(SUBCOOLING)
(9)
SOLENOID VALVE (EV BYPASS)
(25)
REFRIGERANT REGULATOR
(21)
PRESSURE SWITCH
(HIGH PRESSURE PROTECTION)
(31)
THERMISTOR
(SUCTION)
(10)
SOLENOID VALVE
(HOT GAS)
(19)
PRESSURE SWITCH
(HIGH PRESSURE PROTECTION)
SECTION M-M
(8)
COIL FOR EXPANSION
VALVE (CHARGE)
(Y2E)
(18)
PRESSURE SENSOR
(LOW PRESS.)
(40) THERMISTOR
(LIQUID)
M
(20)
PRESSURE SWITCH
(HIGH PRESSURE PROTECTION)
(34)
THERMISTOR
(M3C DISCHARGE PIPE)
INSULATION TUBE
(33)
THERMISTOR
(M2C DISCHARGE PIPE)
(32)
THERMISTOR
(M1C DISCHARGE PIPE)
(38)
THERMISTOR
(SUBCOOLING GAS)
VIEW N
N
M
(Y4S)
(Y3E)
(Y6S)
(R31T)
(R32T)
(R33T)
(S3PH)
(S2PH)
(S1PH)
(R8T)
(Y5S)
(S2NPL)
(R9T)
(R5T)
(4) FAN MOTOR
(5) FAN MOTOR
(16)
FOUR WAY VALVE (PIPE)
(15)
FOUR WAY VALVE (HEAT EXC.)
(36)
THERMISTOR (HEAT EXC GAS)
(37)
THERMISTOR
(HEAT EXCH. LIQUID)
(39)
THERMISTOR
(SUBCOOLING LIQUID)
(35)
THERMISTOR (DEICER)
EARTH WIRE
(3)
COMPRESSOR (STD2)
(17)
PRESSURE SENSOR (HIGH PRESS.)
(12)
SOLENOID VALVE (RMTG)
(13)
SOLENOID VALVE (RMTO)
INSULATION TUBE
(30) THERMISTOR (AIR)
CRANKCASE HEATER
CRANKCASE HEATER
(6)
COIL FOR EXPANSION VALVE
(MAIN)
(1) COMPRESSOR (INV)
(2)
COMPRESSOR (STD1)
CRANKCASE HEATER
(M1F)
(M2F)
(Y2S)
(Y3S)
(Y1E)
(R2T)
(R7T)
(R6T)
(R4T)
(Y1S)
(Y7S)
(M1C)
(M2C)
(M3C)
(E3HC)
(E2HC)
(E1HC)
(R1T)
(S1NPH)
