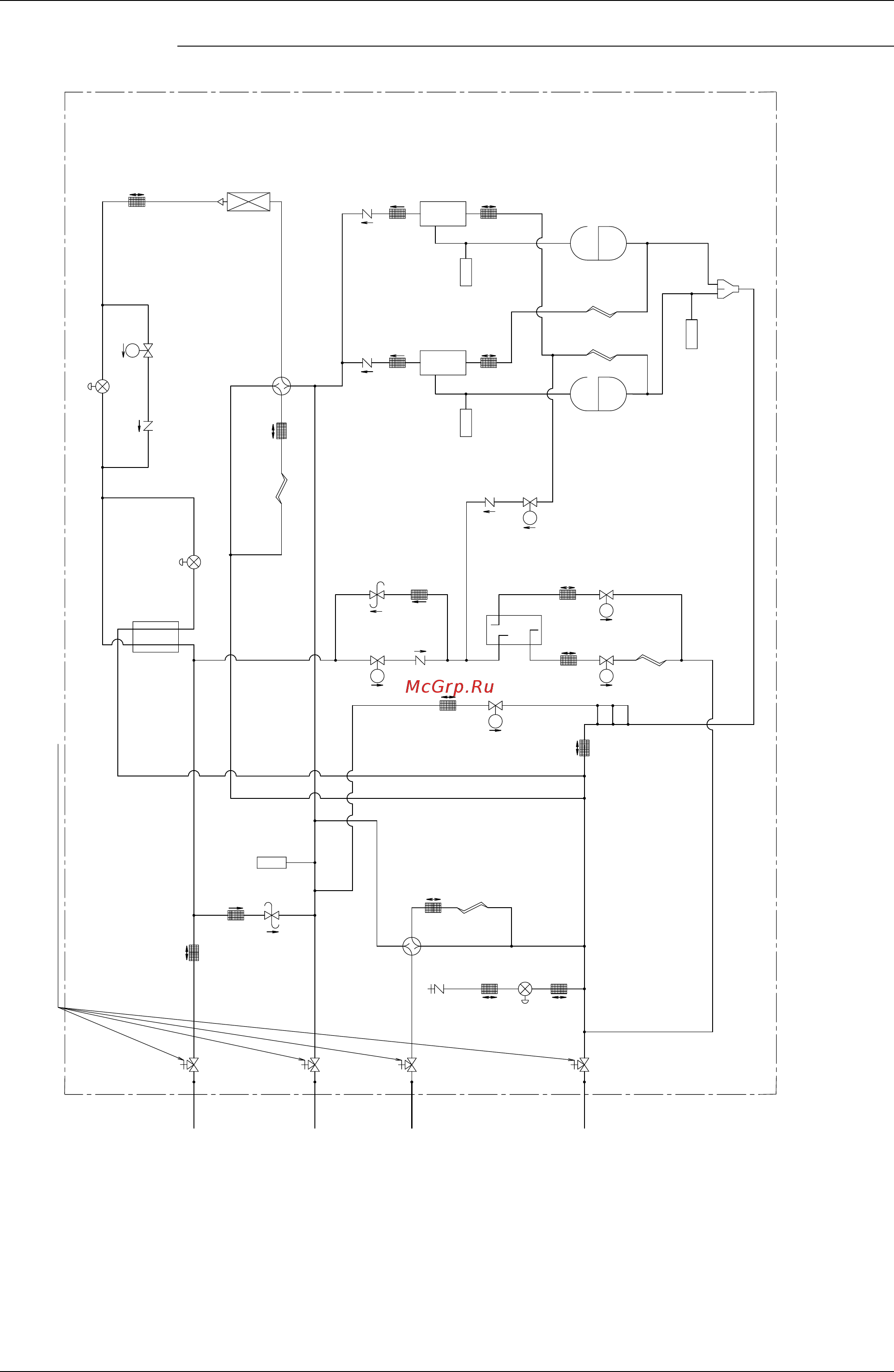

SiBE37-701_B Piping Diagrams
Appendix 400
REMQ10P, 12P
STOP VALVE (WITH SERVICE PORT
φ
7.9mm FLARE CONNECTION)
LIQUID PIPE
PRESSURE
EQUALIZER
PIPE
FILTER
HIGH PRESSURE
SENSOR
STRAINER
PRESSURE
REGULATING VALVE
(CHECK VALVE TYPE)
S1NPH
HEIGHT AND
LOW PRESSURE
GAS PIPE
SERVICE
PORT
FILTER
ELECTRONIC
EXPANSION
VALVE
FILTER
FOUR WAY VALVE
FILTER
CAPILLARY
TUBE
SUCTION GAS
PIPE
FILTER
ELECTRONIC
EXPANSION
VALVE
ELECTRONIC
EXPANSION
VALVE
CHECK VALVE
SOLENOID
VALVE
FILTER
CAPILLARY
TUBE
FILTER
FOUR WAY VALVE
HEAT
EXCHANGER
SOLENOID
VALVE
CHECK
VALVE
SOLENOID
VALVE
SV
SV
SV
FILTER
SOLENOID
VALVE
FILTER
FILTER
PRESSURE REGULATING
VALVE (ABSOLUTE
PRESSURE TYPE)
STRAINER
REFRIGERANT
REGULATOR
SOLENOID
VALVE
CHECK VALVE
SOLENOID
VALVE
CAPILLARY
TUBE
SV
SV
SV
HIGH PRESSURE
SWITCH
OIL
SEPARATOR
CHECK VALVE
FILTER
FILTER
COMPRESSOR
INV
S1PH
S2NPL
LOW PRESSURE
SENSOR
CAPILLARY
TUBE
CHECK VALVE
FILTER
OIL
SEPARATOR
HIGH PRESSURE
SWITCH
S2PH
FILTER
COMPRESSOR
STD1
CAPILLARY
TUBE
3D057742
