ioLogik W5300 Click&Go Logic
4-29
AO

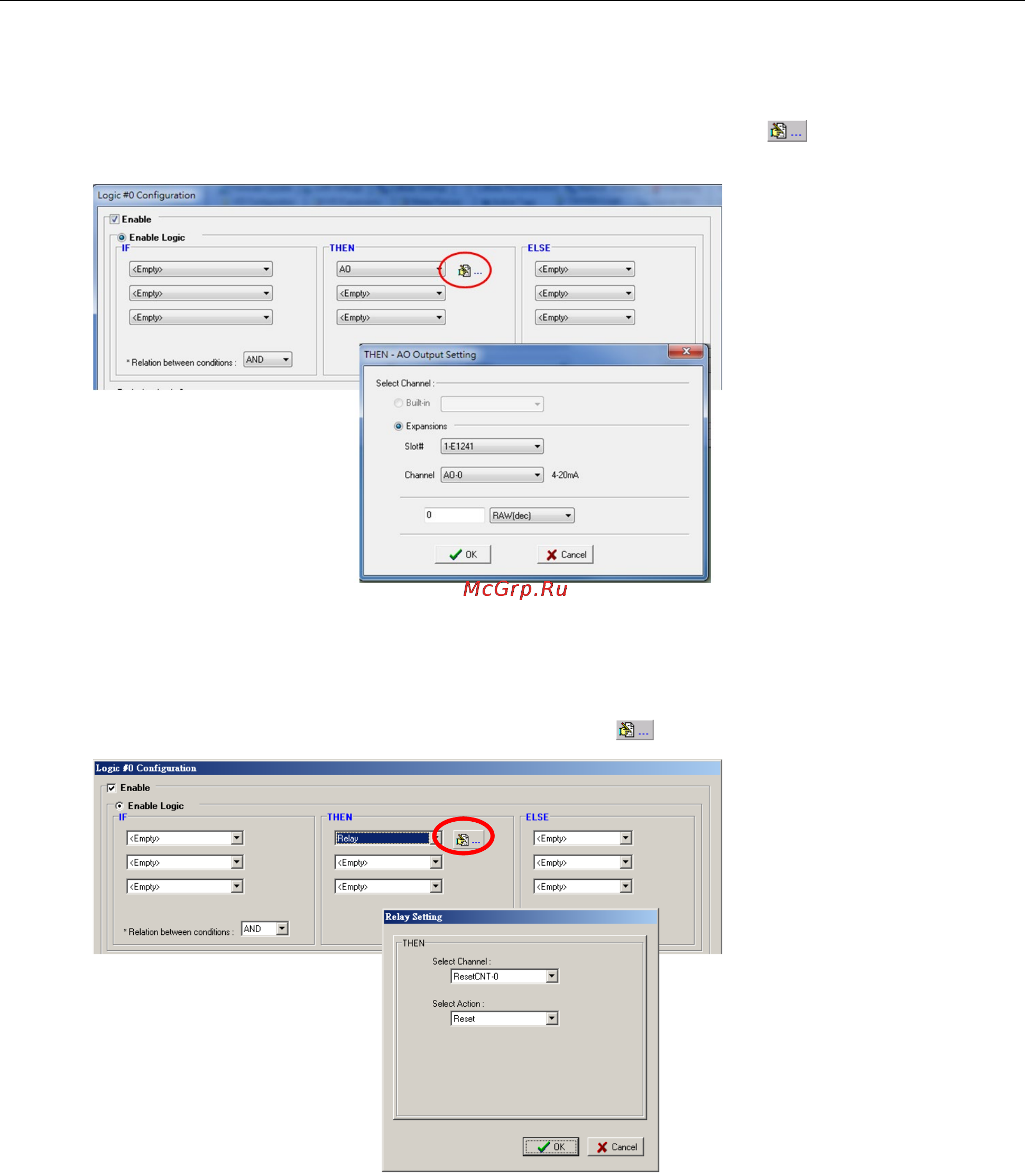

Analog Output (AO) refers to the action of controlling the local Analog Output channels that react to the IF
conditions. Select the THEN/ELSE action to AO and click on the property button ( ) to enter the AO Settings
window.
Relay (Counts)
In the THEN/ELSE action, Relay refers to the current counts specifying how many times a relay has been
triggered. The counts are stored internally and can be cleared. “RESET” is the only operator. Select the
THEN/ELSE action to Relay and click on the property button ( ) to enter the Relay Settings window.
