ioLogik W5300 Click&Go Logic

4-17

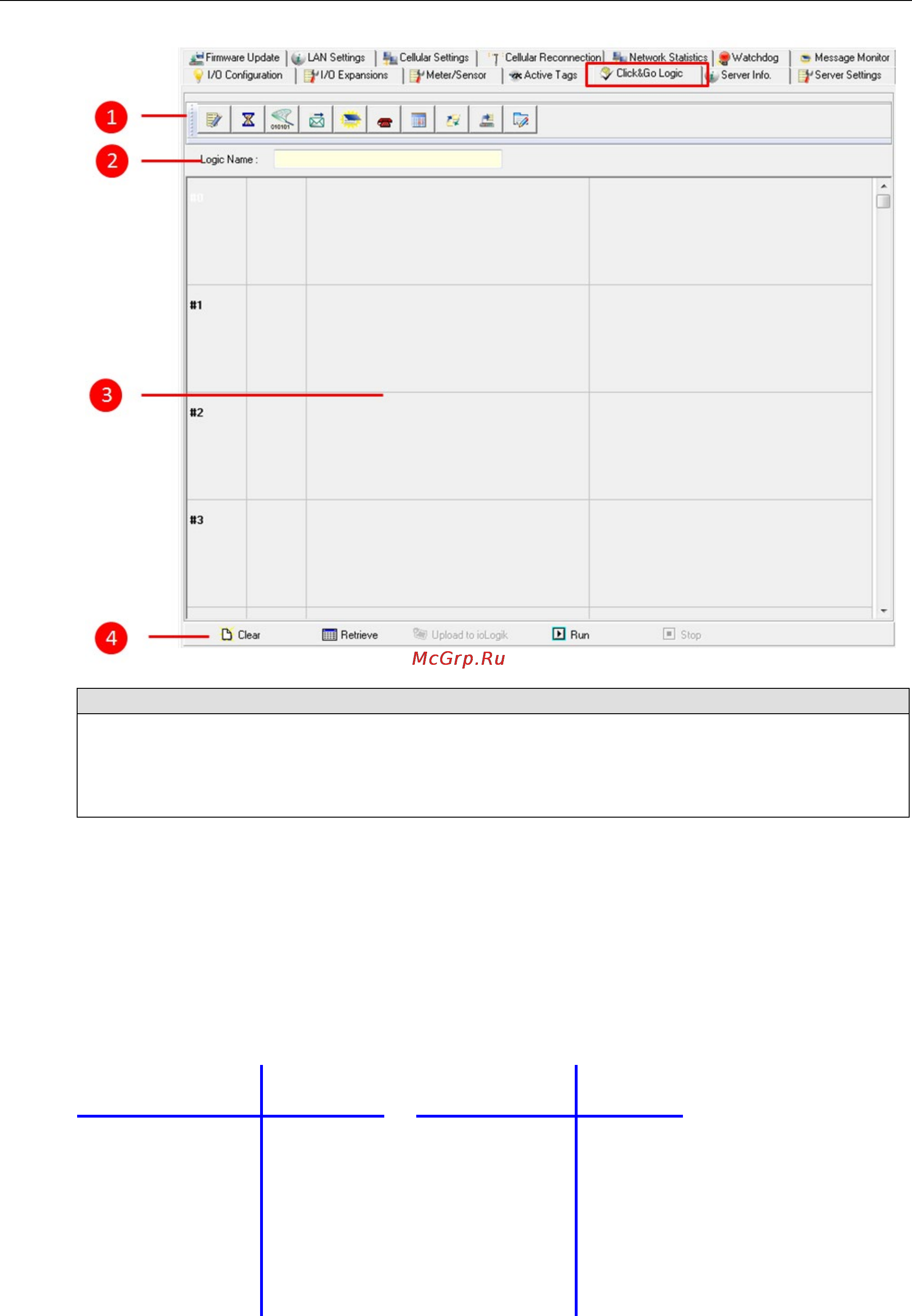

Click&Go Logic Panel

1. Global Variable: In this field, you can configure global variable rules.

2. Logic Name: In this field, you can assign a name to the set of rules.

3. Rule-set: In this area, each rule’s conditions, actions, and status are displayed.

4. Rule-set Management Bar: In this area, you manage the rule-set.

Rules are the building blocks of your ioLogik system. With rules, you define the exact trigger conditions for

transmission of I/O information as well as the content and destination of that information.

Click&Go Logic can be defined in the following ways:

IF “A” THEN “B”, ELSE “C”

For one control logic rule, there are three “A’s” that can be configured. “A” refers to the IF conditions that

trigger an action. These three conditions can be operated by “AND” or “OR” logic. If “AND” logic is used, all

three conditions must be true to create a positive result. If “OR” logic is used, one or more true conditions must

be met to trigger the action.

A1 A2 A3

Result of

AND Logic

A1 A2

Result of

OR Logic

0 0 0 0 0 0 0 0

0 0 1 0 0 0 1 1

0 1 0 0 0 1 0 1

0 1 1 0 0 1 1 1

1 0 0 1 1 0 0 1

1 0 1 1 1 0 1 1

1 1 0 1 0 0 0 1

1 1 1 1 1 1 1 1
