Moxa ioLogik W5340-HSPA [85/194] Ftp settings
![Moxa ioLogik W5312-T [85/194] Ftp settings](/views2/1201254/page85/bg55.png)
ioLogik W5300 Click&Go Logic
4-13

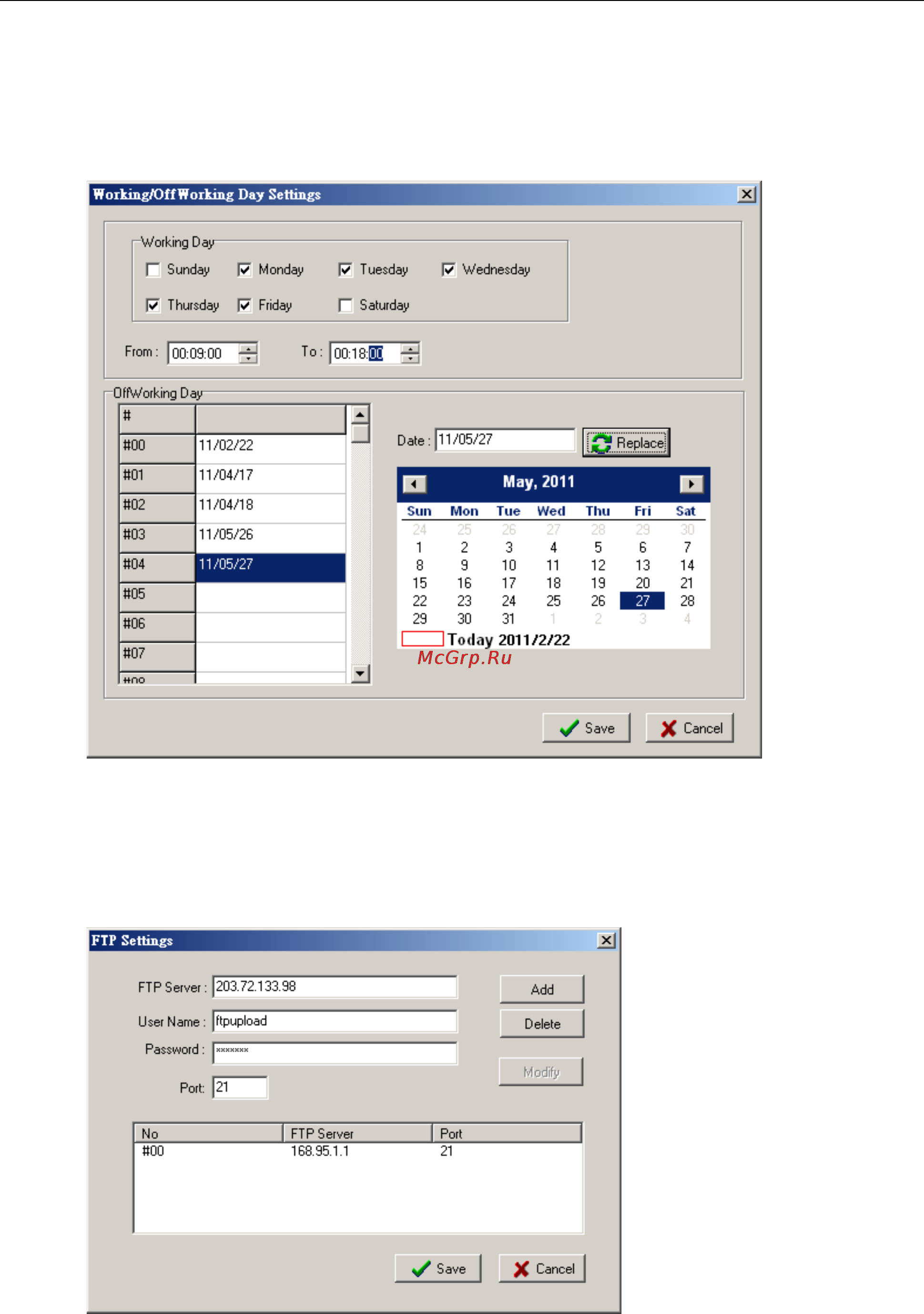

Working/Off Working Days
The Working/OffWorking Days defines the workweek days, hours, and off days to be used in the Click&Go
Schedule function. Specify the work days and hours first, double click to select the date in the calendar, and
then click the Replace button to update the selected entry of the off days.
FTP Settings
The FTP Settings dialog defines the target FTP server’s IP and user accounts to allow the ioLogik W5300 to
upload log files. Specify the FTP Server’s IP address and accounts and press the Add button to create a new
entry in the list.
