ioLogik W5300 The ioAdmin Utility

3-31

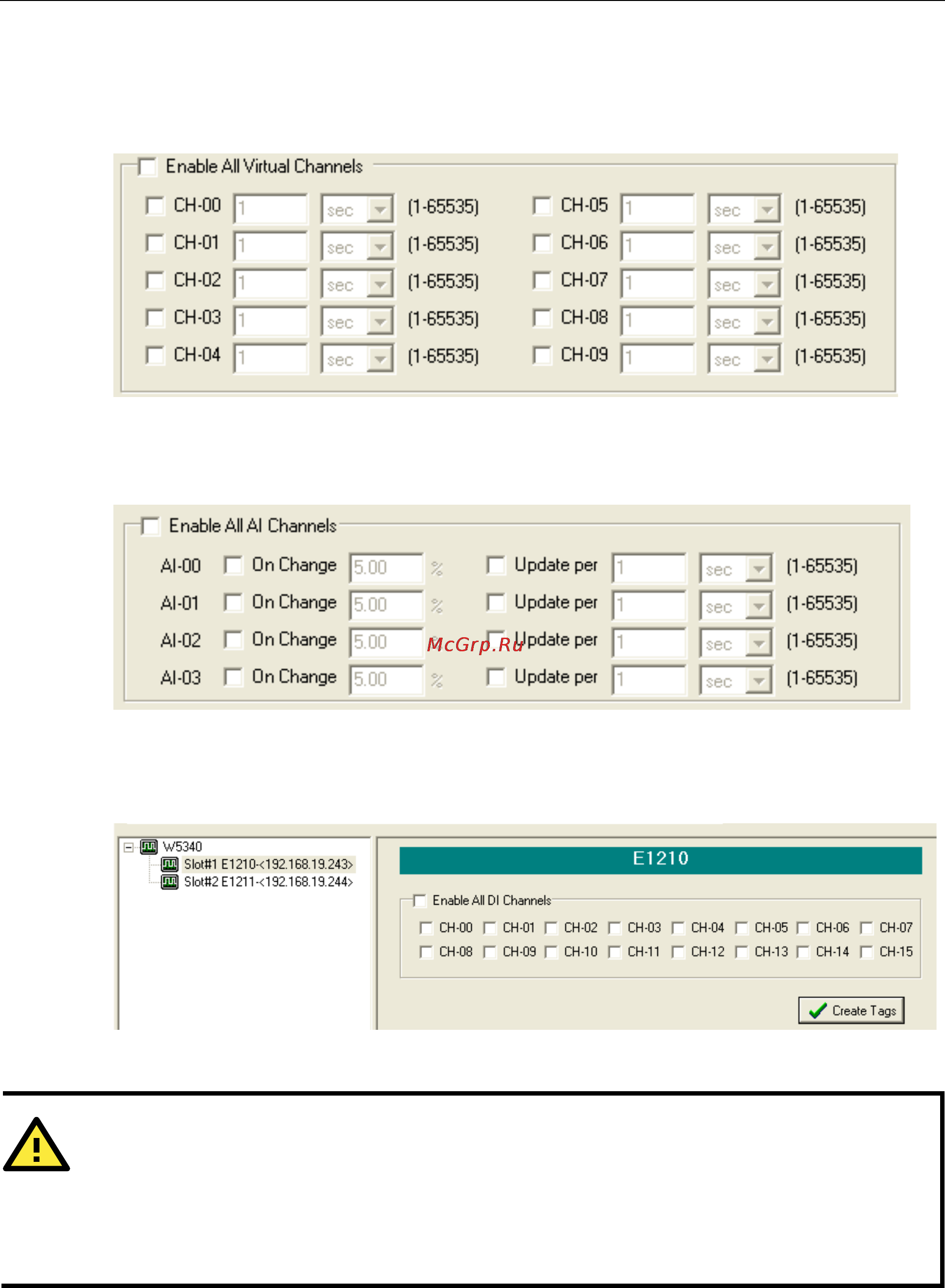

NOTE:

1. A Virtual Channel is updated periodically; the time interval for updates can be set to seconds, minutes,

hours, or days, with values ranging from 1 to 65535.

2. If AI is configured to update on change, the percentage settings represent the percentage of the full

analog range. For example, if the AI is configured for 0 to 10 V, on change 1% means the ioLogik will

update the Active OPC Server every time there is a change of 0.1 V.

3. Expansion modules added to the system are displayed in the modules list. Select a module to see detailed

tags in the right panel of the browser window. After selecting the needed tags click the Create Tags button.

The Active OPC server will receive these updated tags the next time you use Active OPC server.

Refer to the Active OPC Server section for more details about how to use Active OPC server.

ATTENTION

1. Active OPC Setting should be configured before connecting to the cellular network. If

the settings are

not configured, the ioLogik W5300 won’t connect. When the ioLogik W5300 is in sleep mode, the

heartbeat signal will be disabled.

2. The RSSI and Internal Registers

tags require firmware version 1.3 or above for the ioLogik W5312

series, and 1.5 or above for the ioLogik W5340 series.
