ioLogik W5300 Click&Go Logic
4-14
Data Logging Profile List
The Data Logging Profile List defines how to log the I/O data into the SD card. A total of 5 profiles can be
created, and multiple/duplicate channels can be included in different profiles.

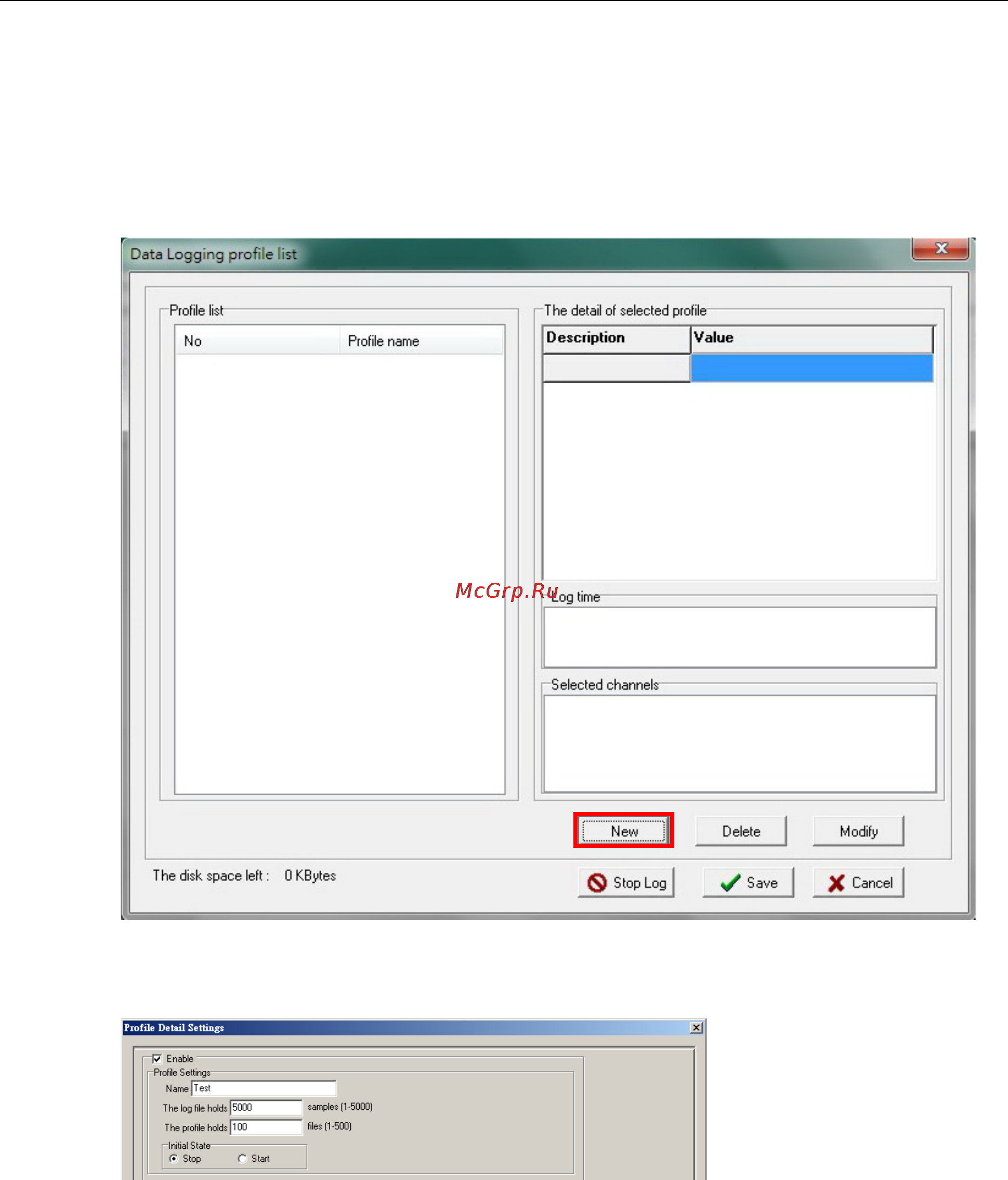

Take the following steps to create a profile:
1. Click the New button to create a new profile.
2. Click Enable and specify a name for the profile. In addition, specify the Initial State and capacity of a log
file. If you select Start as the initial state, logging will start immediately once the profile is established. If
you select Stop, a Click&Go logic must be performed to start the logging.
