ioLogik W5300 The ioAdmin Utility
3-20

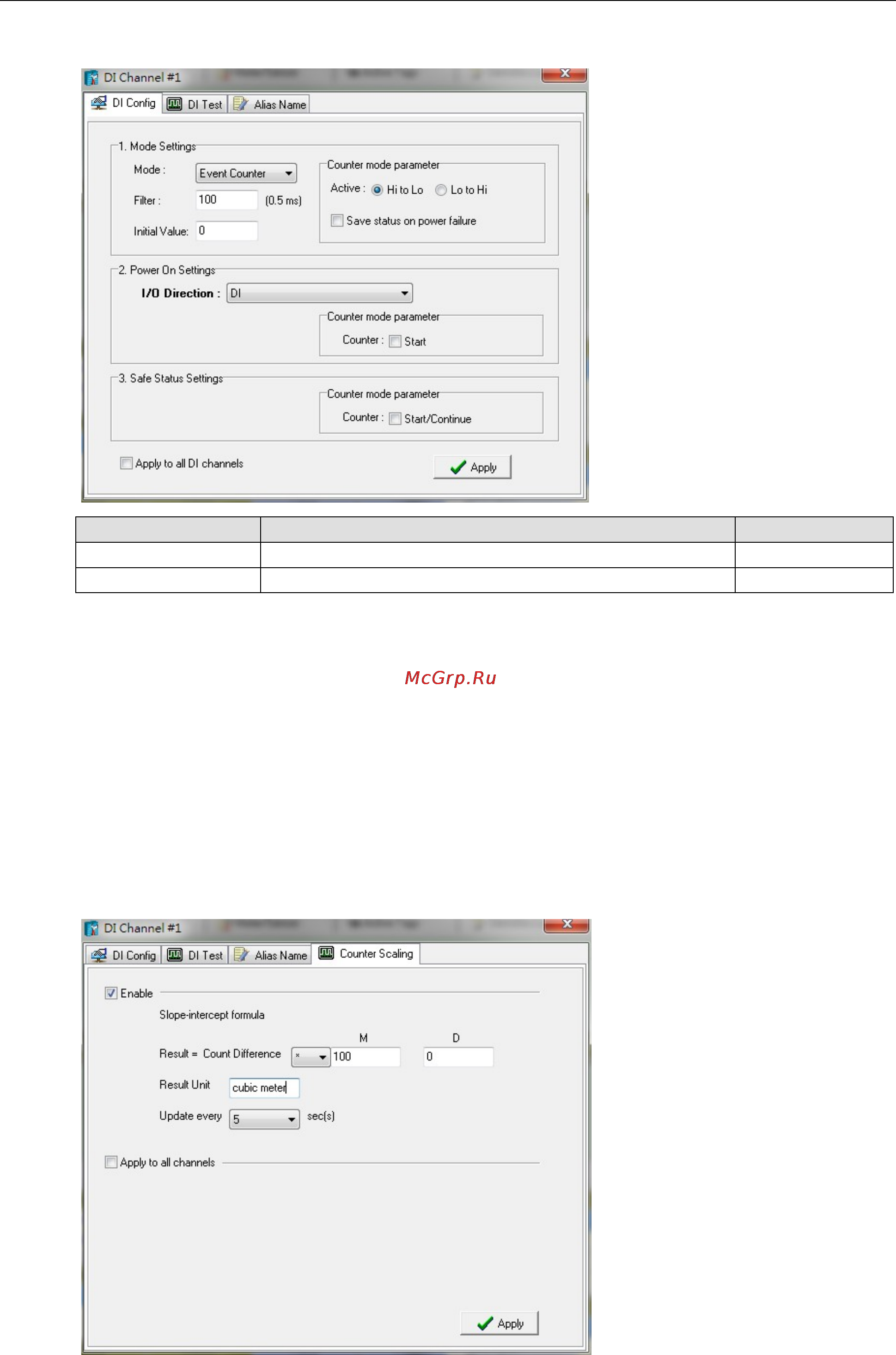

The Mode dropdown may also be used to set the channel as straight Input (DI), or as an Event Counter.
Type On Off
Dry contact Short to GND Open
Wet contact 0 to 3 VDC 10 to 30 VDC
When set as an Event Counter, the channel will accept limit or proximity switches, and will tabulate ON/OFF
signal events. When Lo to Hi is selected, the counter value increases when an attached switch/circuit is closed.
When Hi to Lo is selected, the counter value increases when an attached switch/circuit is released. When Both
is selected, the counter value increases when attached the switch/circuit is successively closed and opened.
Counter Scaling
After configuring a DI channel as an Event Counter, an additional Counter Scaling tab will indicate how often
the counter should be updated during the time unit specified for the virtual channel. For example, if the device
is configured to Update every 5 sec in the Counter Scaling tab, and the Virtual Channel is configured for Time
Interval = 1 min, and has Accumulation flagged, then as each minute passes this virtual channel will log the
total of the last 12 counter updates.
