ioLogik W5300 The ioAdmin Utility

3-22

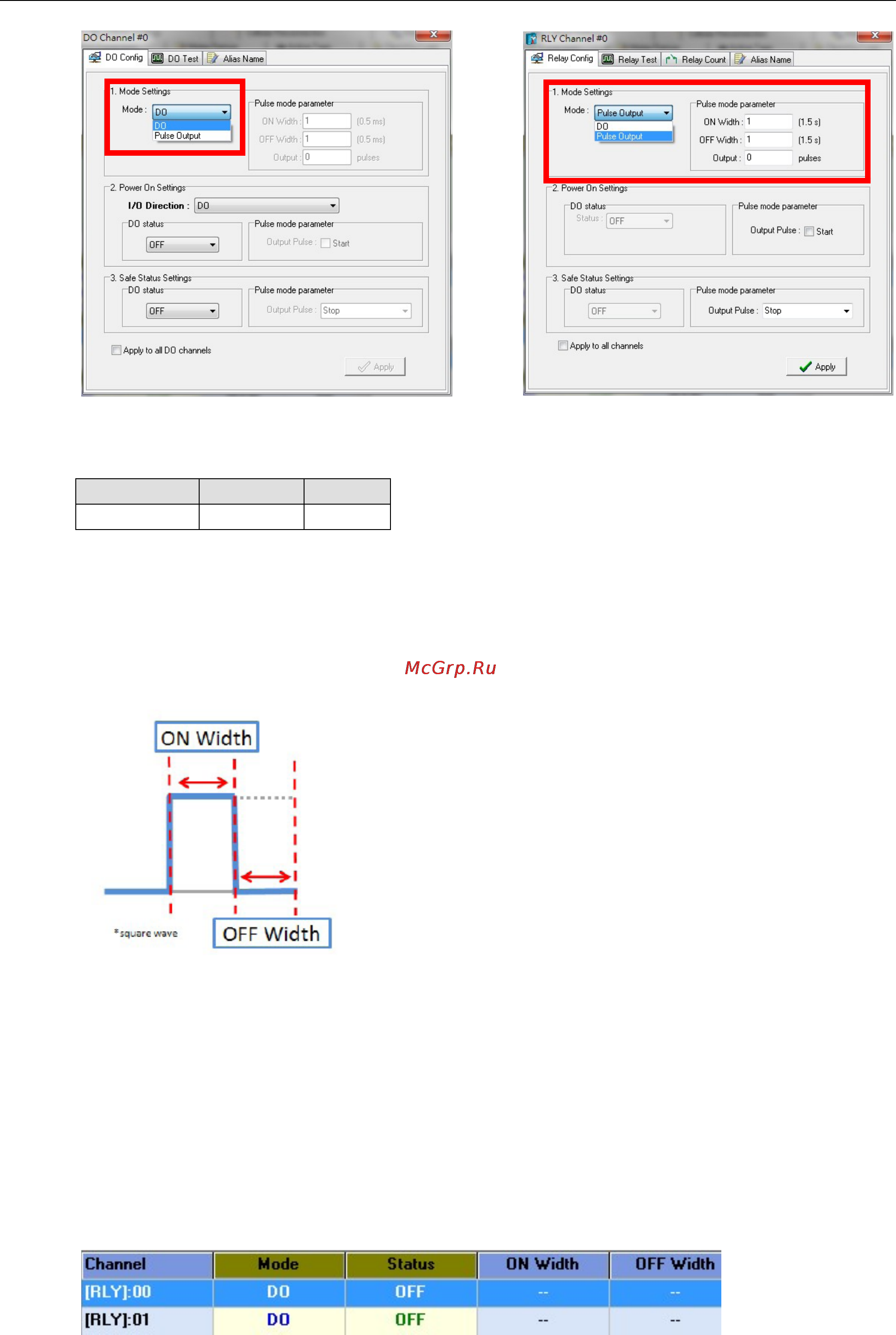

Digital Output Mode Pulse Output Mode

In digital output mode, the specifications are as follows.

Type OFF ON

DO mode Open Short

In Pulse Output mode, the selected digital output channel will generate a square wave as specified in the

pulse mode parameters. The low and high level widths are specified in multiples of 0.5 ms for Digital Output

(1.5 s for Relay output), with a maximum setting of 65,535. For digital output, you would enter 1000 for a width

of 500 ms. If the OFF width value is 5000 and the ON width value is 5000, the pulse output would be a square

wave with a 5-second pulse cycle. You can specify between 1 and 4,294,967,295 pulses; 0 indicates a

continuous pulse output.

When the ioLogik is first powered on, the status of each DO channel is set to OFF by default. This behavior can

be modified using the Power On Settings, located on the DO Config tab. You can set a DO channel to turn

ON or to commence pulse output whenever the ioLogik is powered on.

Relay Count Monitoring

Two types of relay counts can be recorded in the ioLogik W5340: Total Counts and Current Counts. Relay

Total Counts records the total number of times a relay output channel has been triggered in its lifetime. In

general, each relay output channel can be used an average of 100,000 times. Users can monitor these counts

to see when the module should be replaced, or to switch to a different channel if the total count approaches the

upper limit.
